LED40W-024 Thomas Research Products 40W Constant Voltage LED Driver

SKU# 17196

$110.66
$88.53

Thomas Research LED Drivers

LED40W-024 Thomas Research Products 40W Constant Voltage LED Driver

  • Total Power: 40 Watts
  • Input Voltage: 100-277 VAC
  • Output Voltage: 24Vdc Fixed
  • Output Current: 418-1670mA
  • Damp and Dry locations, IP66
  • High Power Factor
  • Constant Voltage with Isolation
  • Black Magic Thermal Advantageā„¢ Plastic Housing
  • UL Sign Components Manual (S.A.M. Models)
Life (hrs) 50,000
Order Code LED40W-024
Input Volts 100-277 VAC
Output Current 418-1670 mA
Max Output Voltage 24
Watts 40
Brand Thomas Research Products
LED Type Constant Voltage
Certifications IP66, UL 8750, UL Type CC, RoHS, EN61000-3-2, EN61000-3-3, CSA 22.2, CE EN61347, EN6100-4-5
Class Class 2
Dimmable No
Dimming Type Not Applicable
Mfg # LED40W-024

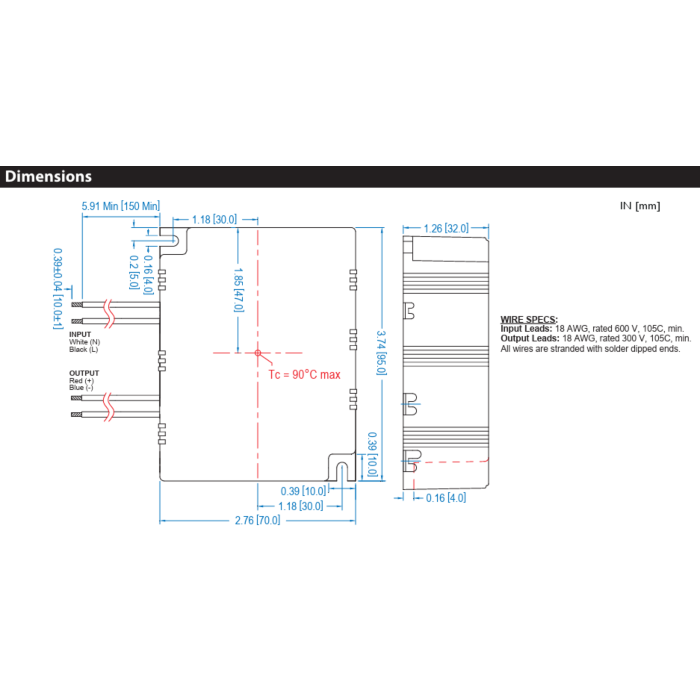

Dimensions 3.74 in. x 2.76 in. x 1.26 in.
Product Data Sheet
Warranty Manufacturers 5 Year
