Ballasts

Start from the catalog number printed on the ballast case. Then match four fields in order: input voltage, lamp type and quantity, start method, ballast factor. A part that matches all four will run the fixture even if its number looks nothing like the original. Search the old number here first, since discontinued parts stay listed. If the label is too worn to read, call with the lamp type and count and the circuit voltage.

There is no shared scheme; each manufacturer built its own. Most encode lamp count, lamp type, input voltage and output somewhere in the string. Universal's B432IUNVHP reads as four F32T8 lamps, instant start, 120-277V universal input, high ballast factor. Decode only far enough to confirm those four fields, then check them against the case itself, where voltage, lamp count, start method and ballast factor are printed in full.

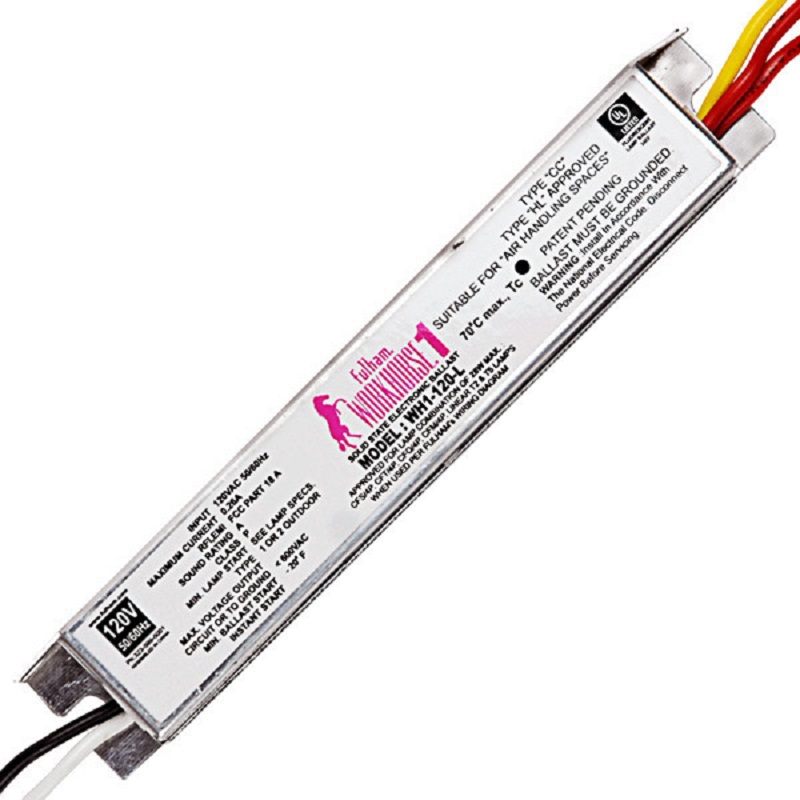

Instant start strikes the lamp with a high-voltage pulse and no cathode preheat. It is the most efficient choice where lights run for hours at a time, but it costs roughly 20 percent of rated lamp life, and far more under frequent switching. Rapid start preheats continuously and gives up a little energy in exchange. Programmed start preheats then strikes, and belongs on occupancy sensors or anything cycling several times a day.

Only if the lamps change with it. An F40T12 and an F32T8 are both 48 inches on a G13 base, so they swap physically, but a T8 ballast cannot properly run a T12 lamp. Treat it as a fixture conversion: new ballast, new lamps, and a check of the sockets, because instant start wants shunted sockets while programmed and rapid start want non-shunted. Keeping the T12 lamps means a like-for-like T12 ballast.

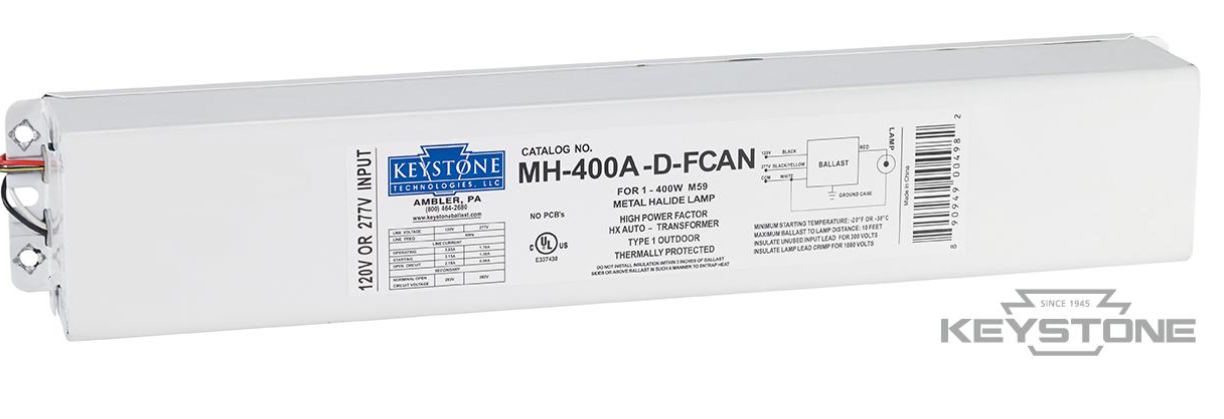

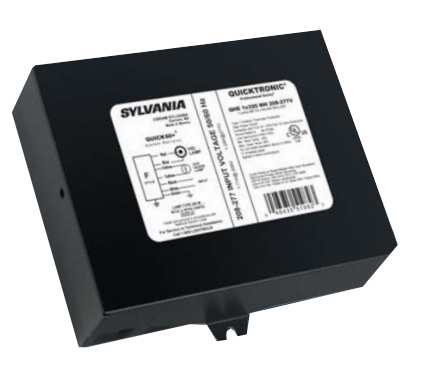

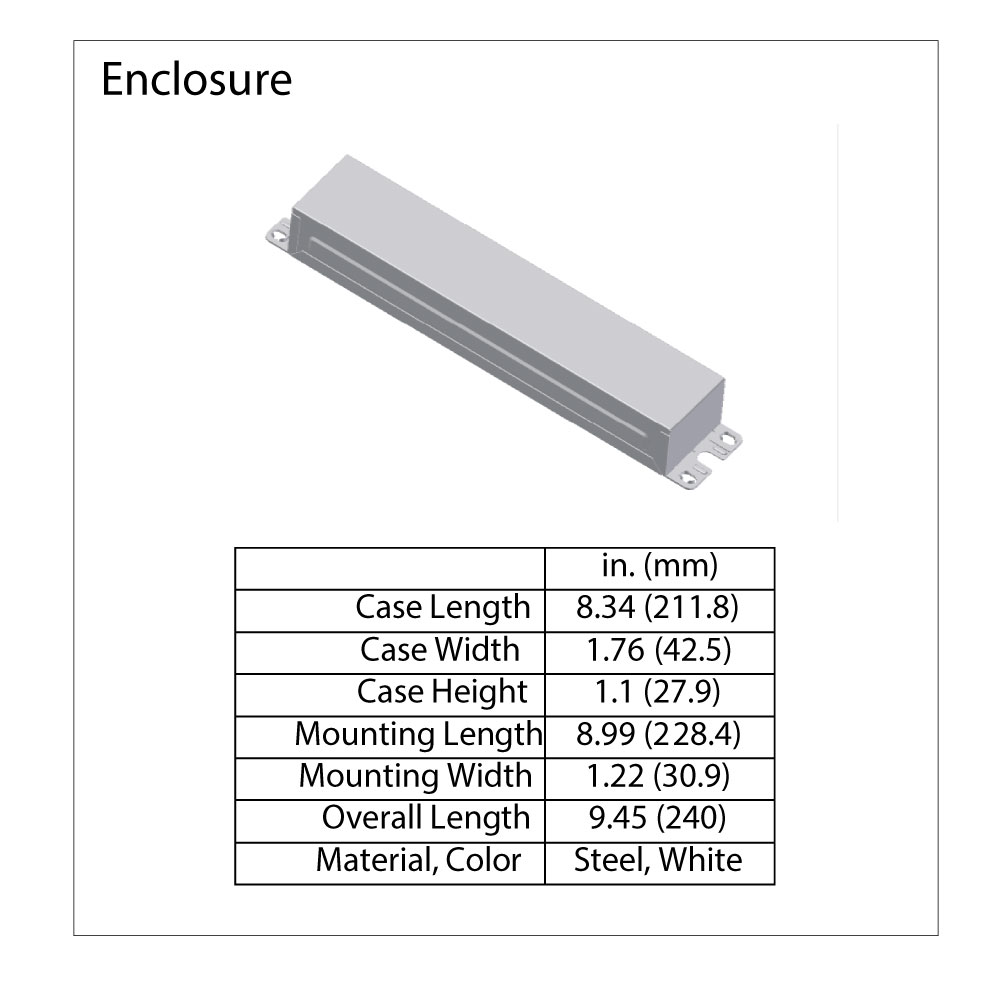

Both regulate current, for very different loads. A ballast limits current through a gas-discharge arc and supplies the voltage that strikes it; a fluorescent or HID lamp draws more current as it heats, so something has to hold it back. An LED driver converts line AC into regulated DC for a semiconductor that needs tightly controlled forward current. Neither can stand in for the other. Choose a ballast by lamp type, a driver by output current and voltage window.

Check the tubes first, because they are cheaper. Blackened ends, one tube dark while its partner glows, or a slow flicker usually mean the lamps are spent. Loud buzzing, a burning smell, a swollen case, or new tubes that still fail point to the ballast. An electronic ballast is rated around 50,000 hours, often 15 years or more in a garage or kitchen, so one that dies at three years suggests heat or bad supply voltage.

First the output type. Landscape systems run on 12V AC from a magnetic or electronic transformer, while most LED tape and under-cabinet strips need 12V or 24V DC from a constant voltage driver. Then size it: add up the fixture watts and keep that load at or below 80 percent of the transformer's rating. On long landscape runs, a multi-tap transformer offering 13 to 15 volts makes up for voltage drop at the far fixtures.

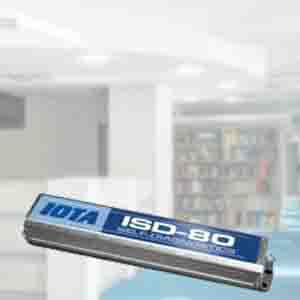

It is a battery unit that keeps one lamp or board lit at reduced output when power fails, wired to an unswitched hot so it can tell an outage from a wall switch. It works with LED only if it is listed for LED. A fluorescent emergency ballast is built to strike an arc and will not drive an LED board. LED emergency drivers are rated in output watts, and the board's forward voltage must fall within the unit's range.

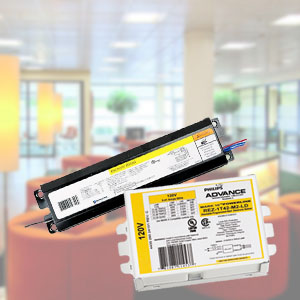

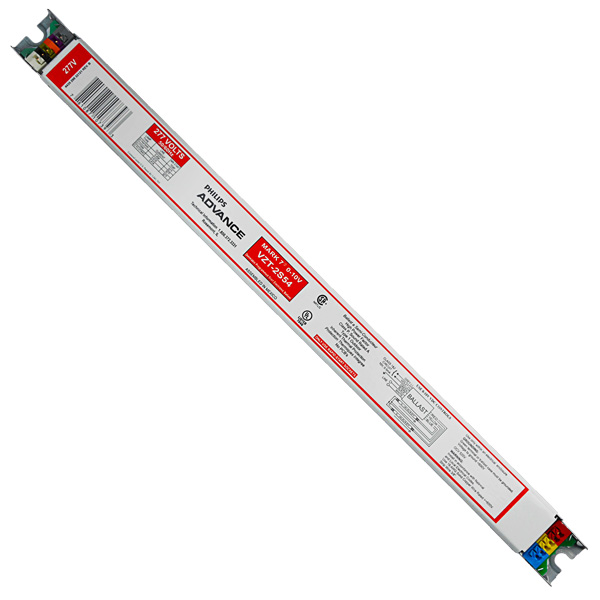

It depends on the light source. A fluorescent lamp needs a dimming ballast, which keeps the cathodes heated as output falls; without that heat the lamp ends blacken and it dies early. An LED board needs a dimming driver. Both take the same 0-10V signal on a separate low-voltage pair, and that pair is polarity sensitive. Check the dimming floor as well, since 10 percent and 1 percent are different parts.

Yes. Replacement ballasts are still made and sold. The pressure comes from falling volume: manufacturers retire families as sales drop, so a part that was standard last year can vanish with no regulatory deadline attached. If a fixture will need another ballast after this one, price an LED tube conversion against the ballast now, while the fixture is open and the labor is already being spent.
