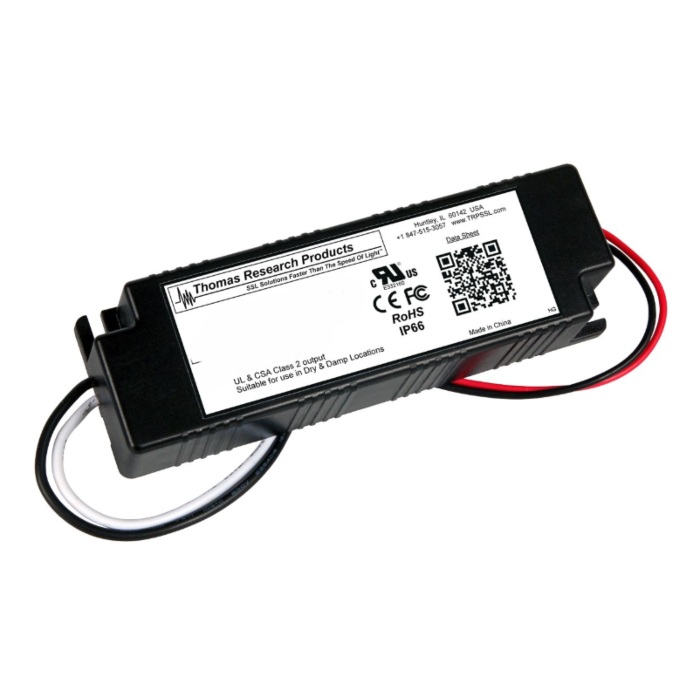

LED30W-24 Thomas Research Products 30W Constant Voltage LED Driver

SKU# 17191

$91.09
$72.87

Thomas Research LED Drivers

LED30W-24 Thomas Research Products 30W Constant Voltage LED Driver

  • Total Power: 30 Watts
  • Input Voltage: 120-277 Vac Nom.
  • UL Dry & Damp Location Rated
  • IP66
  • High Power Factor
  • UL Type HL Rated for Hazardous Locations
  • Constant Voltage with Isolation
  • Black Magic Thermal Advantageā„¢ Plastic Housing
  • UL Sign Components Manual (S.A.M. Models)
Life (hrs) 52,500
Order Code LED30W-24
Input Volts 100-277 VAC
Output Current 313-1250 mA
Max Output Voltage 24
Watts 30
Brand Thomas Research Products
LED Type Constant Voltage
Certifications IP66, UL 8750, RoHS, Type HL, UL damp & dry, EN61000-3-2, EN61000-3-3, CSA 22.2, CE EN61347, EN6100-4-5
Class Class 2
Dimmable No
Dimming Type Not Applicable
Mfg # LED30W-24

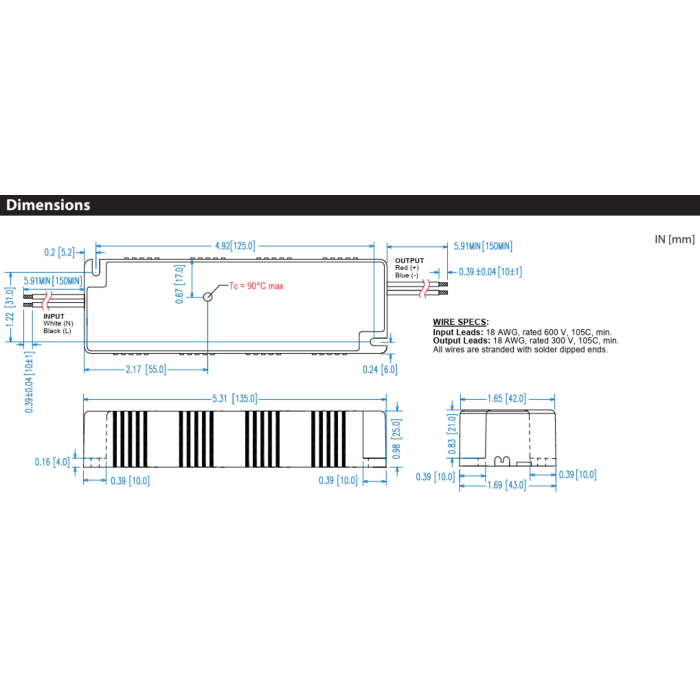

Dimensions 4.92 in. x 1.69 in. x 0.98 in.
Product Data Sheet
Warranty Manufacturers 5 Year
