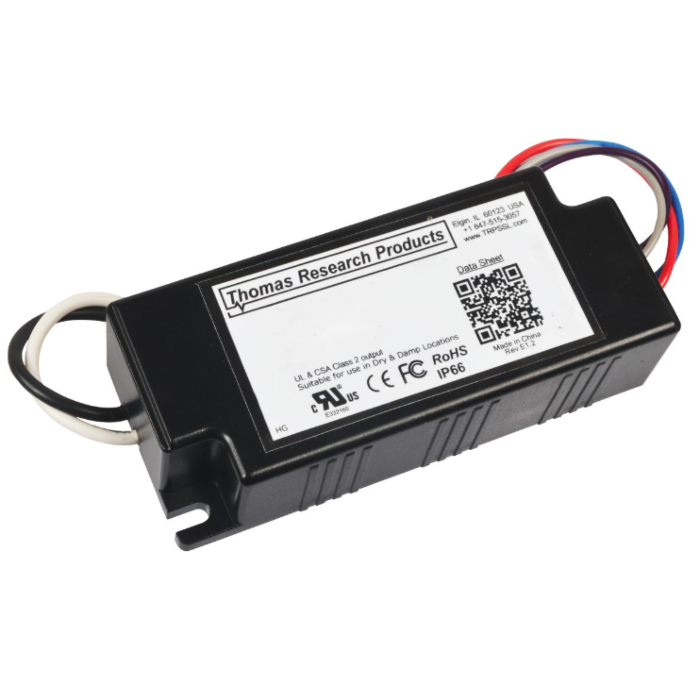

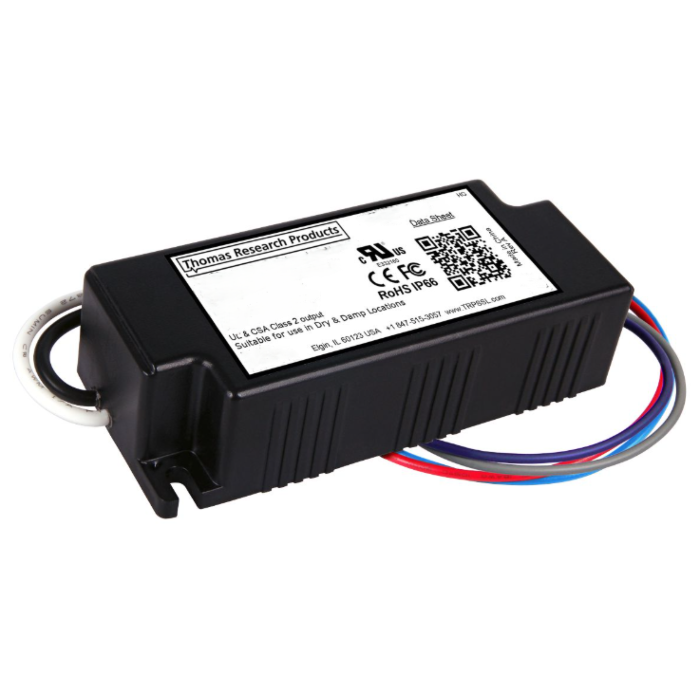

LED20W-24 Thomas Research Products 20W Constant Voltage LED Driver

SKU# 17166

$69.88
$55.90

Thomas Research LED Drivers

LED20W-24 Thomas Research Products 20W Constant Voltage LED Driver

  • Total Power: 20 Watts
  • Input Voltage: 120-277 Vac Nom.
  • UL Dry & Damp Location Rated
  • High Power Factor
  • IP66 and NEMA4
  • Constant Voltage with Isolation
  • Black Magic Thermal Advantageā„¢ Plastic Housing
  • UL Sign Components Manual (S.A.M. Models)
Life (hrs) 48,000
Order Code LED20W-24
Input Volts 120-277 VAC
Output Current 208-830 mA
Max Output Voltage 24
Watts 20
Brand Thomas Research Products
LED Type Constant Voltage
Certifications IP66, UL 8750, RoHS, EN61000-3-2, EN61000-3-3, CSA 22.2, CE EN61347, NEMA4
Class Class 2
Dimmable No
Dimming Type Not Applicable
Mfg # LED20W-24

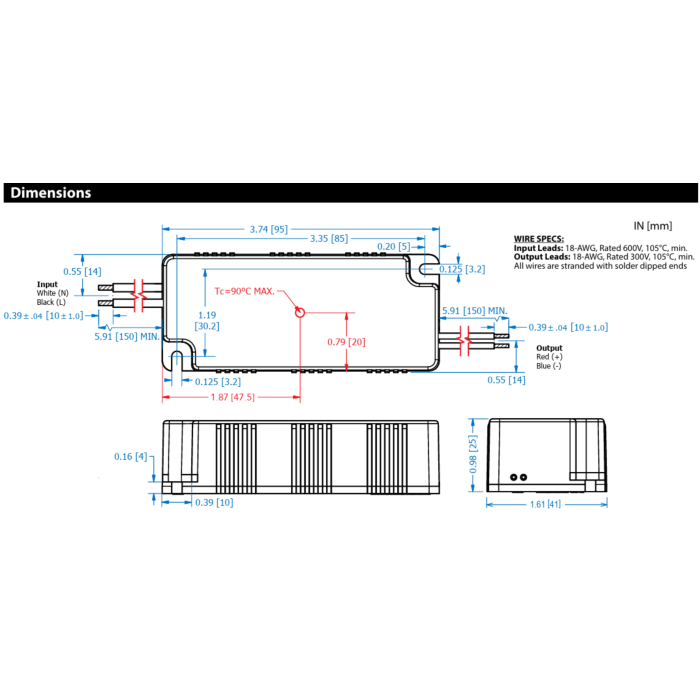

Dimensions 3.74 in. x 1.61 in. x 0.98 in.
Product Data Sheet
Warranty Manufacturers 5 Year
