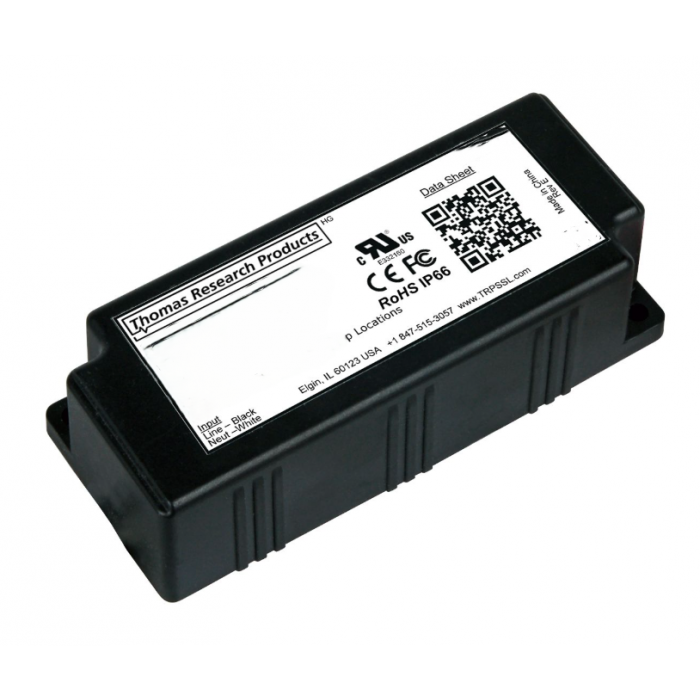

LED12W-24-C0350 Thomas Research Products 12W Constant Current + Constant Voltage LED Driver
Special Price
$49.63
Regular Price
$62.04
SKU
17160
LED-12W Series Fixed Constant Current + Constant Voltage Non-Dimmable LED Driver: 12 Total Watts, 350 mA Output Current, 24 VDC Output Voltage, 100-277 VAC Input Voltage, Class 2
LED12W-24-C0350 Thomas Research Products 12W Constant Current + Constant Voltage LED Driver
- Total Power: 12 Watts
- Input Voltage: 100-277 Vac Nom.
- UL Dry & Damp Location Rated
- High Power Factor
- Constant Current & Constant Voltage with Isolation
- Black Magic Thermal Advantage™ Plastic Housing
- UL Sign Components Manual (S.A.M. Models)
| Life (hrs) | 50,000 |
|---|---|
| Order Code | LED12W-24-C0350 |
| Input Volts | 100-277 VAC |
| Output Current | 350 mA |
| Max Output Voltage | 24 |
| Watts | 12 |
| Brand | Thomas Research Products |
| LED Type | Constant Current + Constant Voltage |
| Certifications | IP66, UL 8750, RoHS, EN61000-3-2, EN61000-3-3, CSA 22.2, CE EN61347, EN6100-4-5 |
| Class | Class 2 |
| Dimmable | No |
| Dimming Type | Not Applicable |
| Mfg # | LED12W-24-C0350 |
| Dimensions | 3.35 in. x 1.42 in. x 0.91 in. |
| Product Data Sheet | |
| Warranty | Manufacturers 5 Year |
