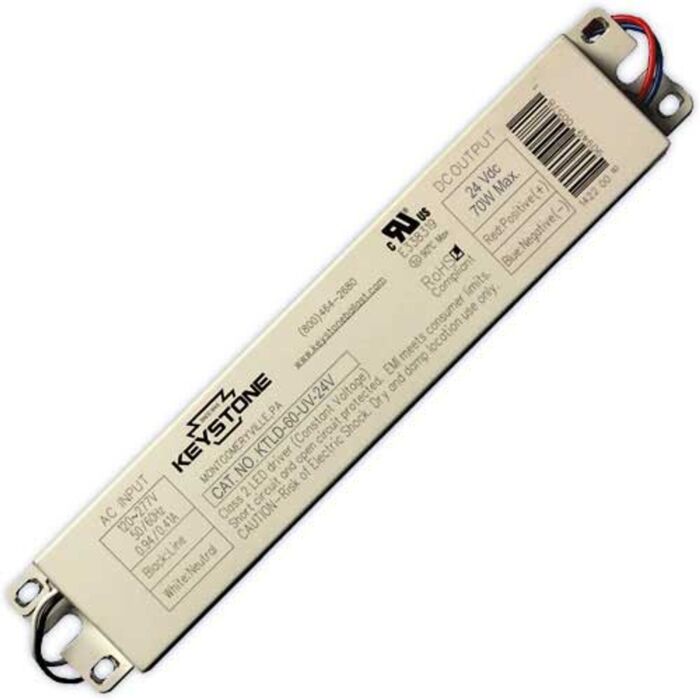

Name: KTLD-60-UV-24V Keystone 60w Constant Voltage LED Driver
Brand: Keystone
SKU: 17007
Price: 36.75 USD
Availability: InStock

SKU# 17007

$45.93

$36.75

Keystone LED Drivers

KTLD-60-UV-24V Keystone 60w Constant Voltage LED Driver

Meets FCC Part 15 Class B (Consumer Limit) at 120V Input and Class A (Non-Consumer Limit) at 277V Input
Over Current and Short Circuit Protection
Type 1 Outdoor, Suitable for Dry and Damp Locations
UL 879, UL 8750 Recognized Component for LED Power Unit and Signage Application
Class 2 Output
90oC/194oF Maximum Case Temperature
Input Frequency: 50/60 Hz
Listed in the Sign Component Manual (SAM)

Life (hrs)	43,800
Order Code	MYA-54
Input Volts	120-277 VAC
Output Current	2.5A
Max Output Voltage	24
Watts	60
Brand	Keystone
LED Type	Constant Voltage
Certifications	UL 8750, RoHS, Damp Location, Dry Location, cRUus, UL 879, SAM, FCC Part 15 Class B, FCC Part 15 Class A, Class 2 Output
Class	Class 2
Dimmable	No
Dimming Type	Not Applicable
Mfg #	KTLD-60-UV-24V

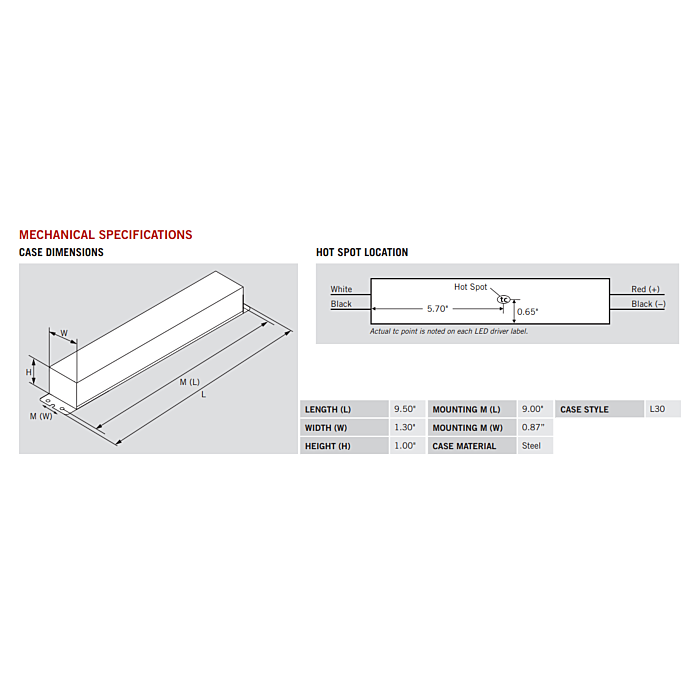

Dimensions	9.5 in. x 1.3 in. x 1 in.
Product Data Sheet	KTLD-60-UV-24V
Warranty	Manufacturer's 5 Year
UPC	890949005309
