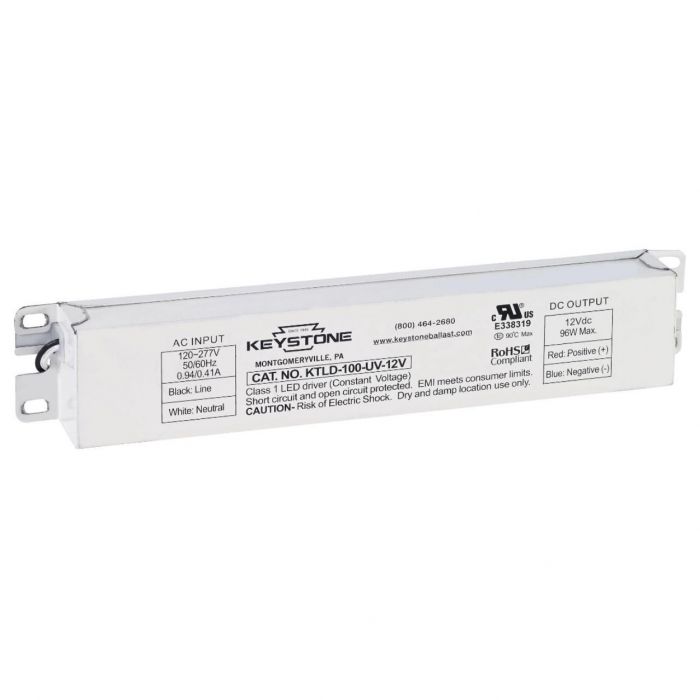

KTLD-100-UV-12V Keystone 96w Constant Voltage LED Driver
Special Price
$43.70
Regular Price
$54.63
SKU
17008
Constant Voltage Fixed Non-Dimmable LED Driver: 96 Total Watts, 8A Output Current, 12 VDC Output Voltage, 120-277 VAC Input Voltage, Non-Class 2
KTLD-100-UV-12V Keystone 96w Constant Voltage LED Driver
- Meets FCC 47 CFR Part 15 (Class B) Consumer Limits at 120V Input and (Class A) Non-Consumer Limits at 277V Input
- Over Current and Short Circuit Protection
- Type 1 Outdoor, Suitable for Dry and Damp Locations
- UL 8750 Recognized Component LED Power Unit
- Class 1 Output
- 90oC/194oF Maximum Case Temperature
- Input Frequency: 50/60 Hz
- THD: < 20%
| Life (hrs) | 80,000 |
|---|---|
| Order Code | ESB-26 |
| Input Volts | 120-277 VAC |
| Output Current | 8A |
| Max Output Voltage | 12 |
| Watts | 96 |
| Brand | Keystone |
| LED Type | Constant Voltage |
| Certifications | cULus, FCC, IP20, UL 8750, RoHS, Damp Location, Dry Location, cRUus, UL 879, EN61000-3-2 Harmonic Current Emissions Class C, FCC Part 15 Class B, CE EN61347-1, CE EN61347-2-13 |
| Class | Non-Class 2 |
| Dimmable | No |
| Dimming Type | Not Applicable |
| Mfg # | KTLD-100-UV-12V |

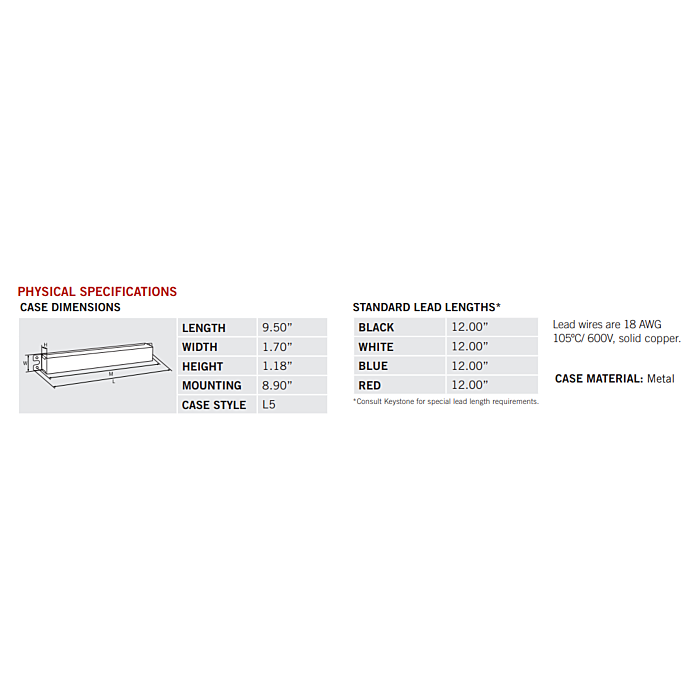

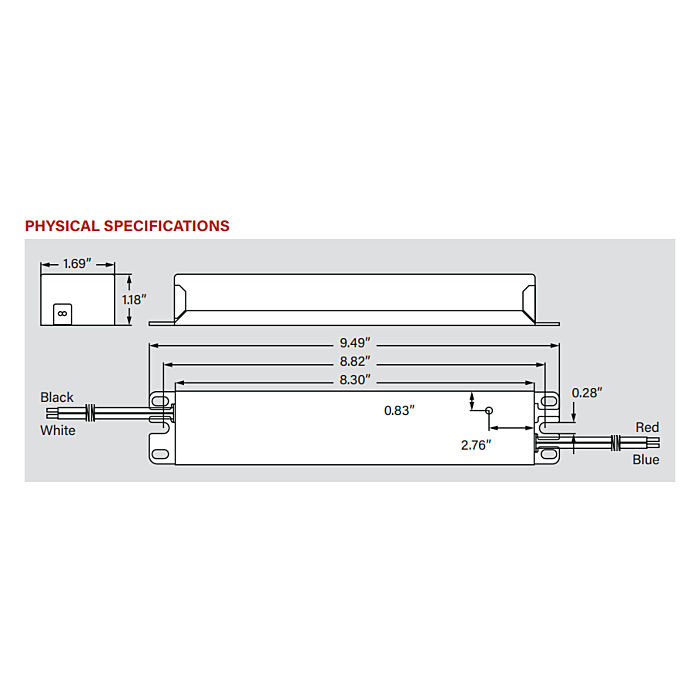

| Dimensions | 9.5 in. x 1.7 in. x 1.18 in. |
| Product Data Sheet | |
| Warranty | Manufacturer's 5 Year |
| UPC | 890949006269 |
