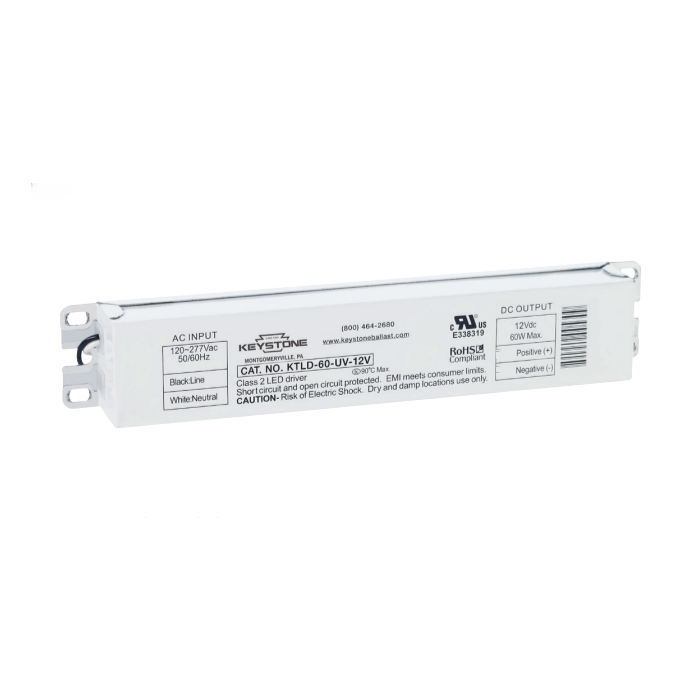

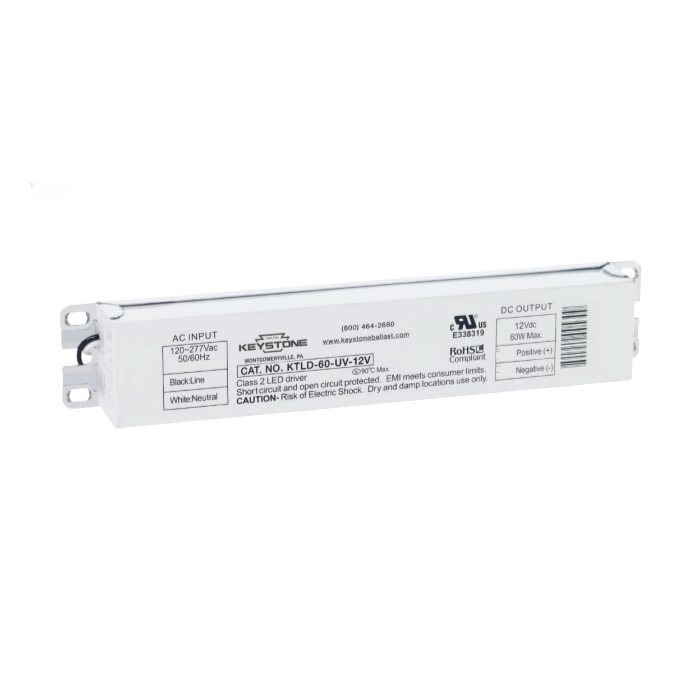

Name: KTLD-60-UV-12V Keystone 60w Constant Voltage LED Driver
Brand: Keystone
SKU: 17005
Price: 40.05 USD
Availability: InStock

Mfg # KTLD-60-UV-12V Item # 17005 Order Code XUI-61

Constant Voltage Fixed Non-Dimmable LED Driver: 60 Total Watts, 5A Output Current, 12 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2

$50.06

$40.05

Keystone LED Drivers

KTLD-60-UV-12V Keystone 60w Constant Voltage LED Driver

Meets FCC 47 CFR Part 15 (Class B) Consumer Limits at 120V Input and (Class A) Non-Consumer Limits at 277V Input
Over Current and Short Circuit Protection
Type 1 Outdoor, Suitable for Dry and Damp Locations
UL 879, UL 8750 Recognized Component LED Power Unit and Signage Application
Class 2 Output
90oC/194oF Maximum Case Temperature
Input Frequency: 50/60 Hz
Listed in the Sign Component Manual (SAM)

Life (hrs)	85,000
Order Code	XUI-61
Input Volts	120-277 VAC
Output Current	5A
Max Output Voltage	12
Watts	60
Brand	Keystone
LED Type	Constant Voltage
Certifications	cULus, IP20, UL 8750, RoHS, Damp Location, Dry Location, cRUus, EN61000-3-2 Harmonic Current Emissions Class C, CE EN61347-1, CE EN61347-2-13
Class	Class 2
Dimmable	No
Dimming Type	Not Applicable
Mfg #	KTLD-60-UV-12V

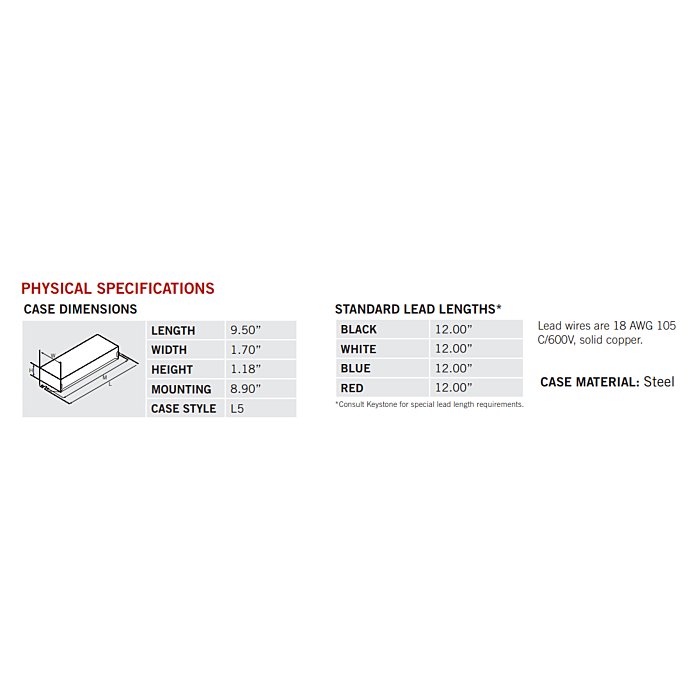

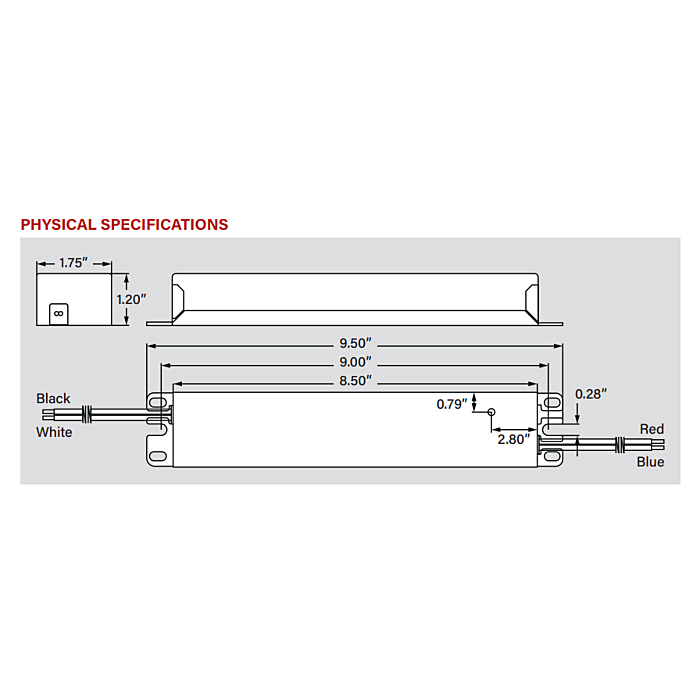

Dimensions	9.5 in. x 1.7 in. x 1.18 in.
Product Data Sheet	KTLD-60-UV-12V
Warranty	Manufacturer's 5 Year
UPC	890949006078
