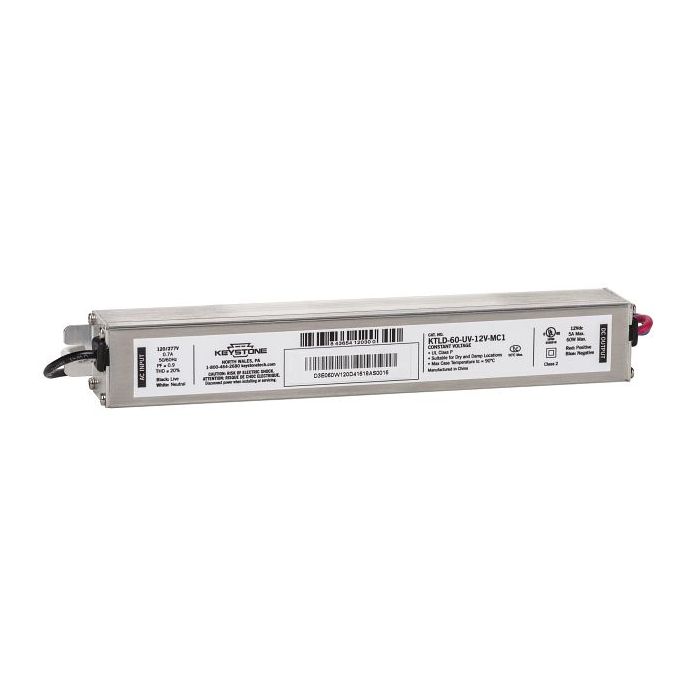

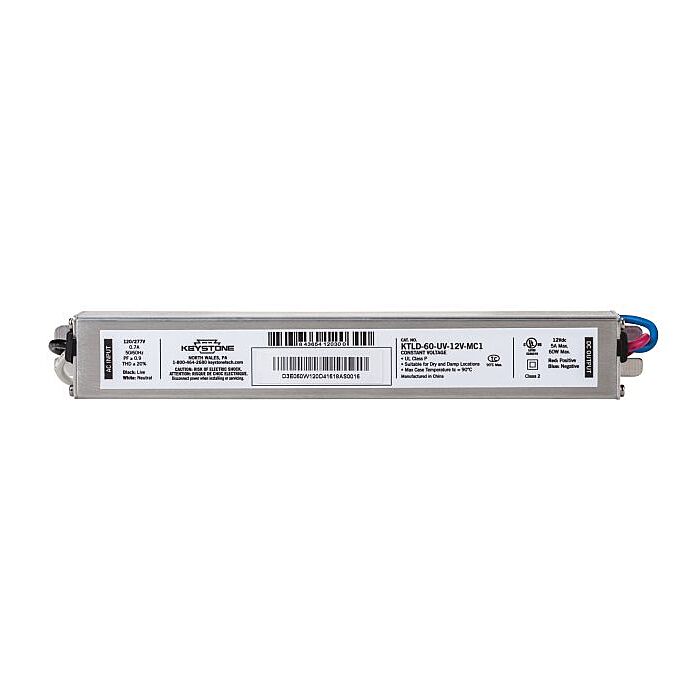

KTLD-60-UV-12V-MC1 Keystone Pocket Driver 60w Constant Voltage LED Driver

Mfg # KTLD-60-UV-12V-MC1 Item # 17023 Order Code BXP-41

Pocket Driver Fixed Constant Voltage Non-Dimmable LED Driver: 60 Total Watts, 5A Output Current, 12 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2

$74.92
$59.93

Keystone LED Drivers

KTLD-60-UV-12V-MC1 Keystone Pocket Driver 60w Constant Voltage LED Driver

  • Under-Voltage (Brownout) Protection
  • Short Circuit and Over Current Protection
  • Internal Over temperature Protection
  • Output Open Load Protection
  • Over Power Protection
  • Input Over Current Protection
  • UL/cUL: UL 8750, Class P, Class 2
  • FCC, 47CFR Part 15: Meets Class B @ 120V and Class A @ 277V
  • 5-year warranty
Life (hrs) 50,000
Order Code BXP-41
Input Volts 120-277 VAC
Output Current 5
Max Output Voltage 12
Watts 60
Brand Keystone
LED Type Constant Voltage
Certifications cULus, FCC, UL 8750, RoHS, Damp Location, Dry Location, UL Class P, SAM, FCC Part 15 Class B, FCC Part 15 Class A, UL cUL Class 2, NLB
Class Class 2
Dimmable No
Dimming Type Not Applicable
Mfg # KTLD-60-UV-12V-MC1

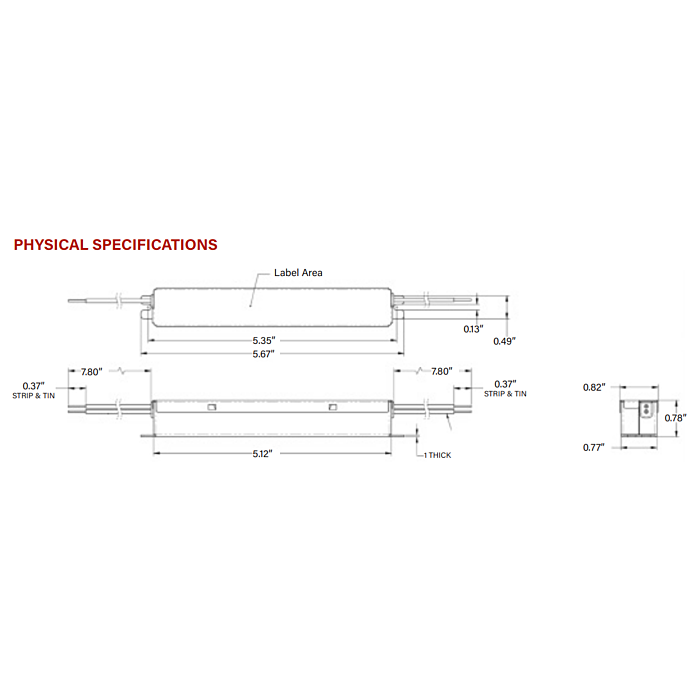

Dimensions 5.67 in. x 0.78 in. x 0.78 in.
Product Data Sheet
Warranty Manufacturer's 5 year
UPC 890949020357
