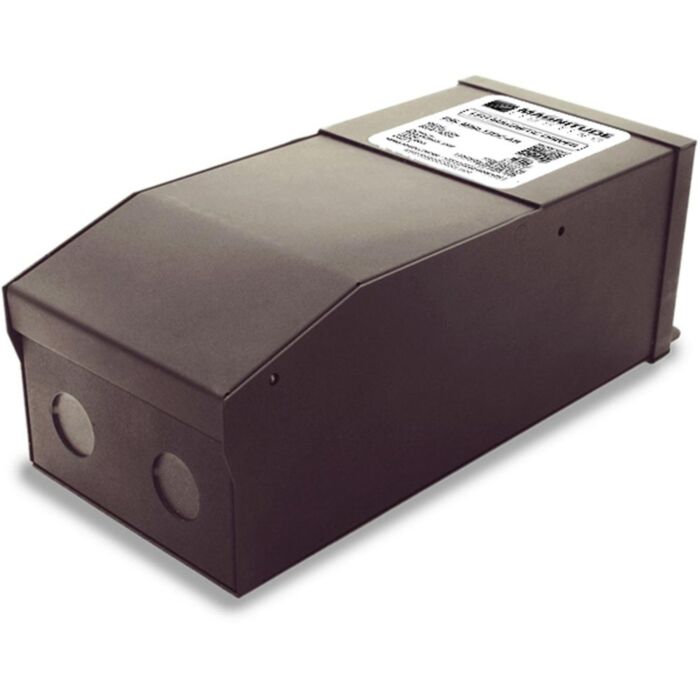

Magnitude M300L12DC Constant Voltage LED Driver

SKU# 5142

$258.00
$199.75
Magnitude

Magnitude M300L12DC-AR Magnetic Dimmable LED Driver

Magnitude’s M300L12DC-AR has a magnetic core and is the most compact LED driver on the market. It is equipped with two auto-reset breakers on the input and output which protect both the load and driver. This driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation.

  • Dimmable with any standard MLV TRIAC dimmer (see recommended dimmer list)
  • Dual protection - primary and secondary auto-reset circuit breakers
  • Nema 3R Enclosure - Outdoor Use
  • Two bottom knock-outs
  • ETL Listed and certified to CSA Standard
Order Code M300L12DC
Input Volts 120V
Output Current 20.8
Max Output Voltage 12V
Watts 300
Brand Magnitude
LED Type Constant Voltage
Dimmable Yes
Mfg # M300L12DC
Dimensions 37872.125
Product Data Sheet
Case Size 1
Warranty 5 Year Magnitude Warranty
