Magnitude M60L12DC-AR Constant Voltage LED Driver
Special Price
$80.00
Regular Price
$120.00
SKU
6956
Constant Voltage - Input: 120V - Output: 12V - 600 Watts
2 WEEK LEAD TIME TO SHIP AFTER THE ORDER IS PLACED.
PLEASE CONTACT US FOR AVAILABILITY
Magnitude M6012DC-AR Magnetic Dimmable LED Driver

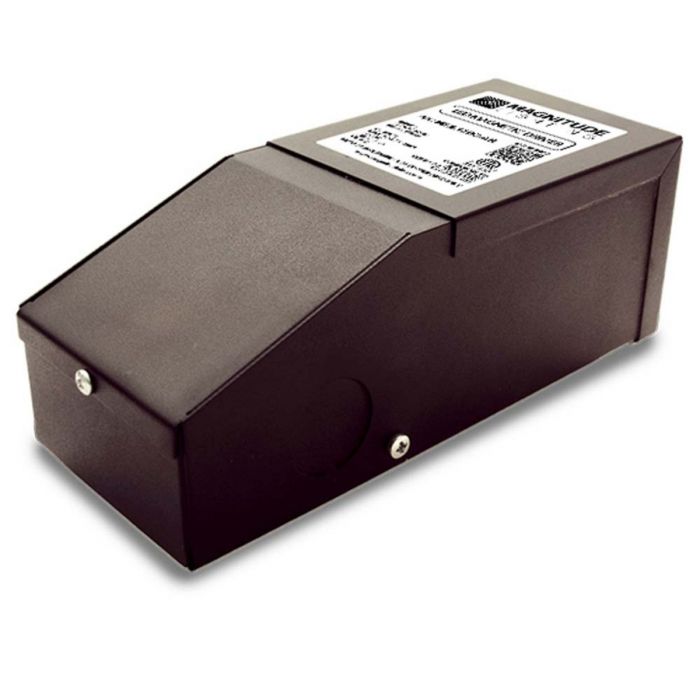

Magnitude’s M60L12DC-AR has a magnetic core and is the most compact LED driver on the market. It is equipped with two auto-reset breakers on the input and output which protect both the load and driver. This driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation.
- Dimmable with any standard MLV TRIAC dimmer (see recommended dimmer list)
- Dual protection - primary and secondary auto-reset circuit breakers
- Nema 3R Enclosure - Outdoor Use
- Two bottom knock-outs
- ETL Listed and certified to CSA Standard
| Order Code | M60L12DC-AR |
|---|---|
| Input Volts | 120V |
| Output Current | 5.9A |
| Max Output Voltage | 12V |
| Watts | 60 |
| Brand | Magnitude |
| LED Type | Constant Voltage |
| Dimmable | Yes |
| Mfg # | M60L12DC-AR |
| Dimensions | 6.55" x 2.25" x 2.55" |
| Product Data Sheet | |
| Case Size | 1 |
| Warranty | 5 Year Magnitude Warranty |
