Magnitude M60L24DC-AR Constant Voltage LED Driver

Mfg # M60L24DC-AR Item # 5140

Constant Voltage - Input: 120V - Output: 12V - 60 Watts 2 WEEK LEAD TIME TO SHIP AFTER THE ORDER IS PLACED. PLEASE CONTACT US FOR AVAILABILITY

$120.00
$80.00
Magnitude

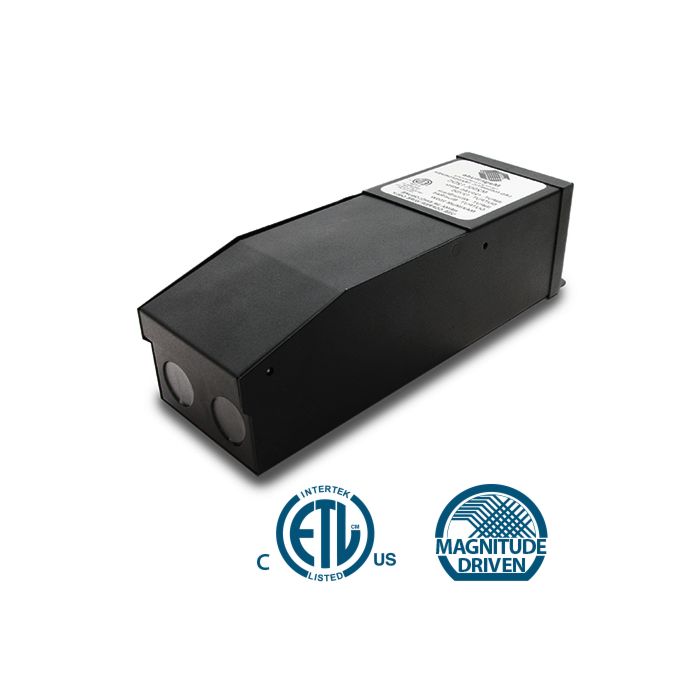

Magnitude M60L24DC-AR Magnetic Dimmable LED Driver

Magnitude’s M60L24DC-AR has a magnetic core and is the most compact LED driver on the market. It is equipped with two auto-reset breakers on the input and output which protect both the load and driver. This driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation.

  • Dimmable with any standard MLV TRIAC dimmer (see recommended dimmer list)
  • Dual protection - primary and secondary auto-reset circuit breakers
  • Nema 3R Enclosure - Outdoor Use
  • Two bottom knock-outs
  • ETL Listed and certified to CSA Standard
Order Code M60L24DC-AR
Input Volts 120V
Output Current 2.56
Max Output Voltage 24V
Watts 60
Brand Magnitude
LED Type Constant Voltage
Dimmable Yes
Mfg # M60L24DC-AR
Dimensions 6.55" x 2.25" x 2.55"
Product Data Sheet
Case Size 1
Warranty 5 Year Magnitude Warranty
