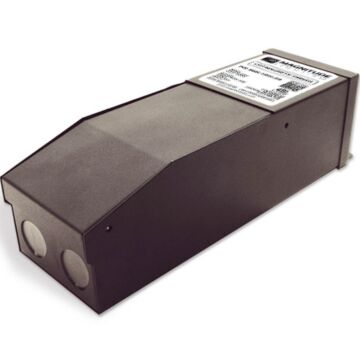

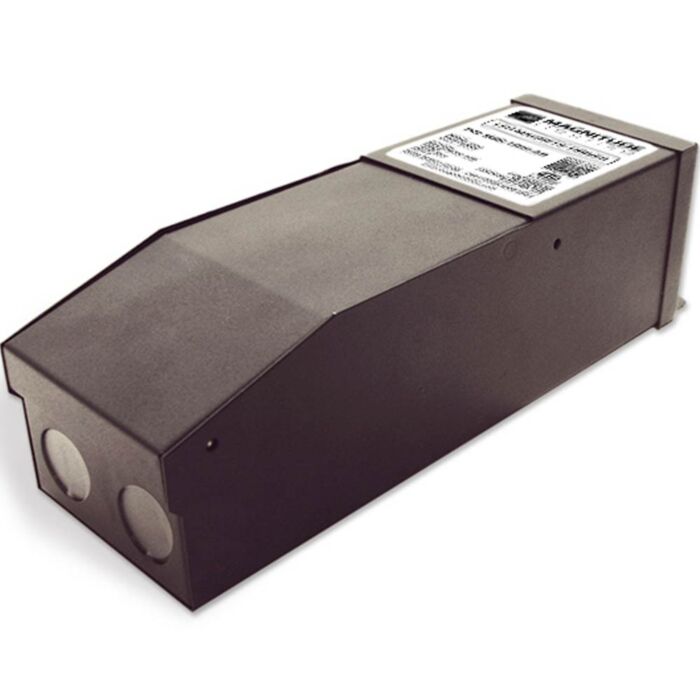

Magnitude M200L12DC Constant Voltage LED Driver

Special Price $104.00 Regular Price $156.00

SKU

BD-M200L12DC

Constant Voltage - Input: 120V - Output: 12V - 200Watts

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Magnitude M200L12DC Magnetic Dimmable LED Driver

Magnitude’s M200L12DC has a magnetic core and is the most compact LED driver on the market. It is equipped with two push-to-reset breakers on the input and output which protect both the load and driver. This driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation.

Dimmable with any standard MLV TRIAC dimmer (see recommended dimmer list)

Dual protection – two manual push-to-reset circuit breakers on the primary and secondary sides

Nema 3R Enclosure - Outdoor Use

Two bottom knock-outs

ETL Listed and certified to CSA Standard

More Information

More Information
Order Code	M200L12DC
Input Volts	120V
Output Current	15.6
Output Voltage	12V
Watts	200
Brand	Magnitude
LED Type	Constant Voltage
Dimmable	Yes
Mfg #	M200L12DC
Dimensions	37872.125
Product Data Sheet	M200L12DC
Case Size	1
Warranty	5 Year Magnitude Warranty
