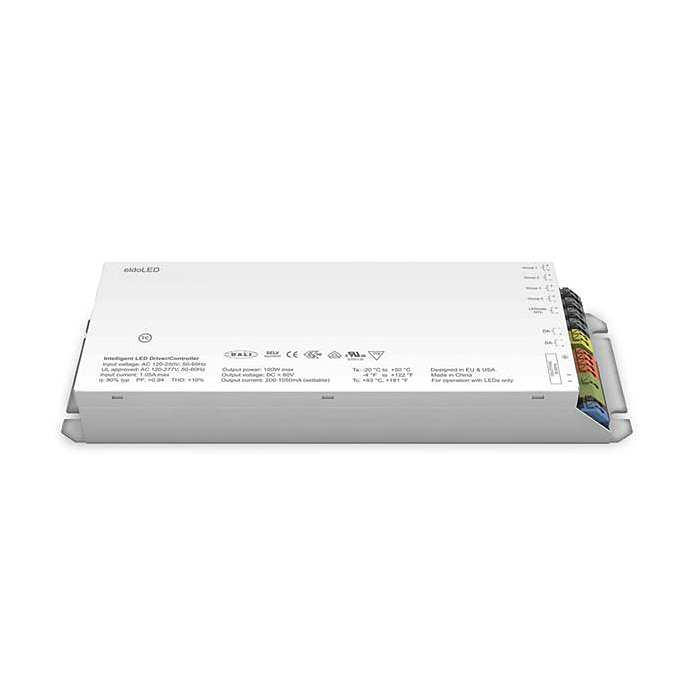

1061/S eldoLED SOLOdrive SL1061S1 100W Constant Current LED Driver

Mfg # 1061/S Item # 16667 Order Code SL1061S1

SOLOdrive Programmable Constant Current Dimmable LED Driver: 100 Total Watts, 200 - 1050mA Output Current, 57 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 100-0.1% Dimming Range

$267.75
$214.20

eldoLED LED Drivers

1061/S eldoLED SOLOdrive SL1061S1 100W Constant Current LED Driver

  • Programmable SOLOdrive LED driver (200 - 1050mA)
  • Dim to dark, smooth brightness changes, excellent flicker performance, adaptable dimming curves, configurable minimum dimming level
  • Seamless interoperability with LED modules, controls and in-luminaire intelligent devices
  • Universal input voltage range, low inrush current and total harmonic distortion (THD), high power factor and efficiency
  • Hybrid HydraDrive technology is proven to work in TV studios and security camera environments
Life (hrs) 50,000
Order Code SL1061S1
Input Volts 120-277 VAC
Output Current 200 - 1050mA
Max Output Voltage 57
Watts 100
Brand eldoLED
LED Type Constant Current
Certifications cRU, UL, RoHS, ENEC, FCC 47 CFR Part 15 class B
Class Class 2
Dimmable Yes
Dimming Type 0-10v
Mfg # 1061/S

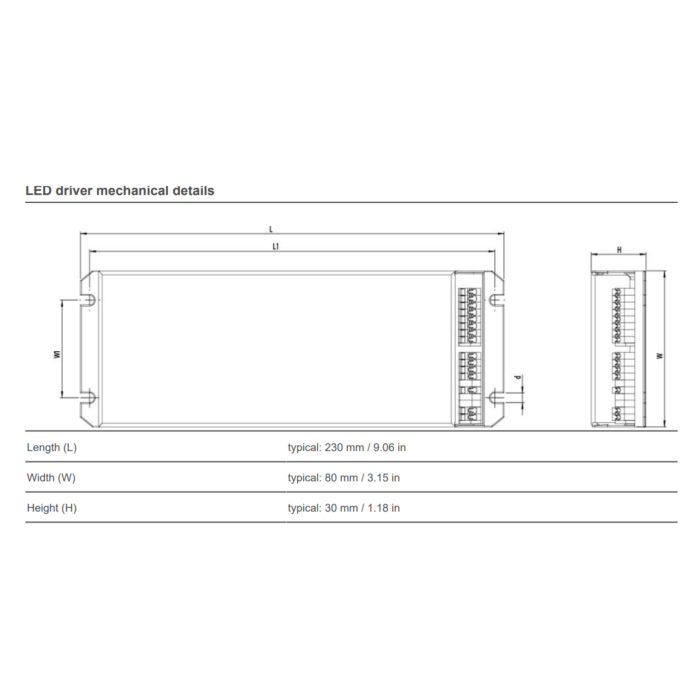

Dimensions 9.06 in. x 3.15 in. x 1.18 in.
Product Data Sheet
Warranty Manufacturers 5 Year
UPC 00820476643866
