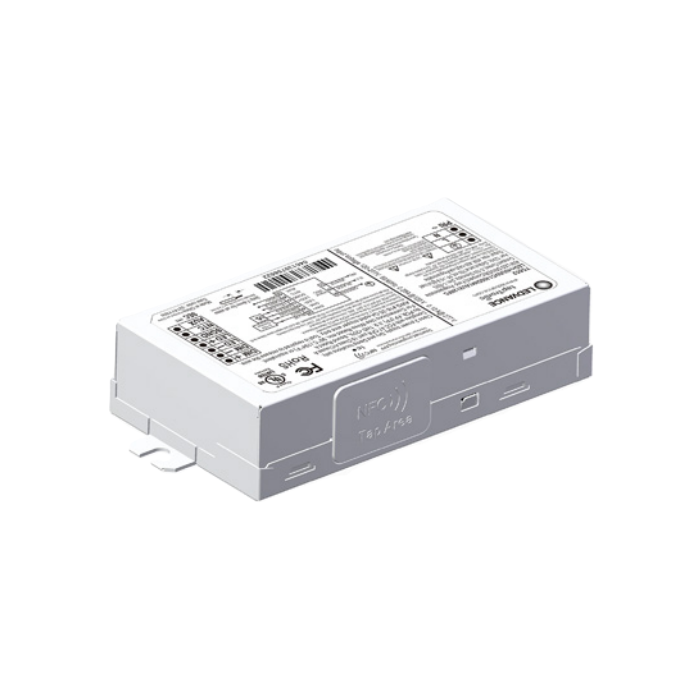

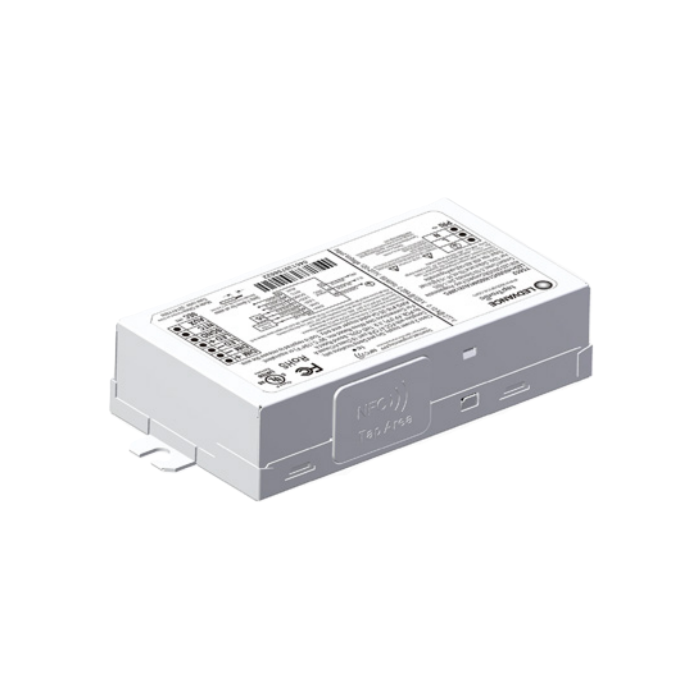

75851 LEDVANCE LEDrv25UNVC1250DIM1JAUX12NFC tapTronic Compact 25w Constant Current LED Driver

Mfg # 75851 Item # 16652

tapTronic Compact Programmable Constant Current Dimmable LED Driver: 25 Total Watts, 150-1250mA (Default 500mA) Output Current, 55 VDC Output Voltage, 120-277V Input Voltage, Class 2, 0-10v Dimming Control, 1%-100% Dimming Range

$72.90
$58.32

LEDVANCE LED Drivers

75851 LEDVANCE LEDrv25UNVC1250DIM1JAUX12NFC tapTronic Compact 25w Constant Current LED Driver

  • 150-1250mA (Default 500mA) Field-programmable via free app
  • Programming does not require driver to be powered up
  • Quick and easy output customization: Current, Dim to off – dim range %, Constant lumen output, Soft start, End of life, Thermal protection
  • Compliant with CA T-24 requirement for flicker and startup time
  • Replaces Older Osram Models: 57350, 57348, 79810
Order Code 75851
Input Volts 120-277V
Output Current 150-1250mA (Default 500mA)
Watts 25
Brand LEDVANCE LLC.
LED Type Constant Current
Certifications cULus, FCC, Title24, RoHS, FCC Title 47 Part 15 Class A, UL damp & dry
Class Class 2
Dimmable Yes
Dimming Type 0-10v
Mfg # 75851

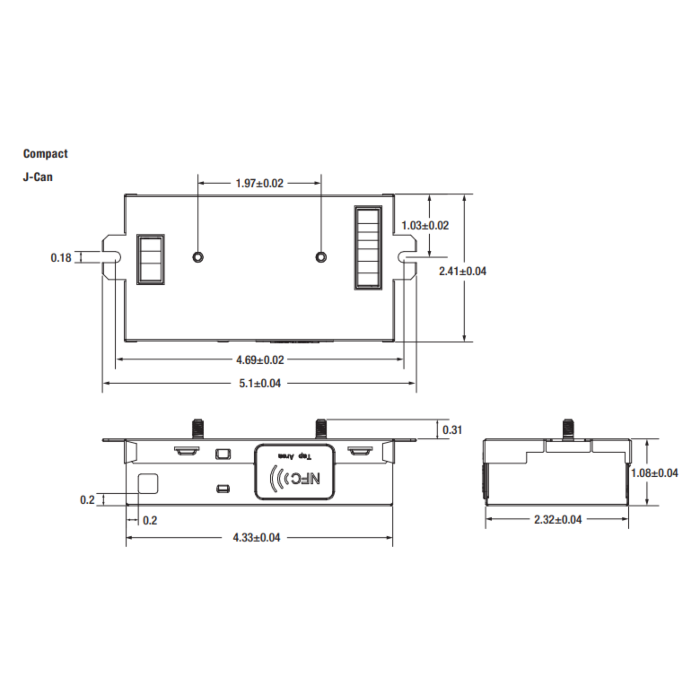

Dimensions 5.1 in. x 2.3 in. x 1.1 in.
Product Data Sheet
Warranty Manufacturers 5 Year
UPC 046135758515
