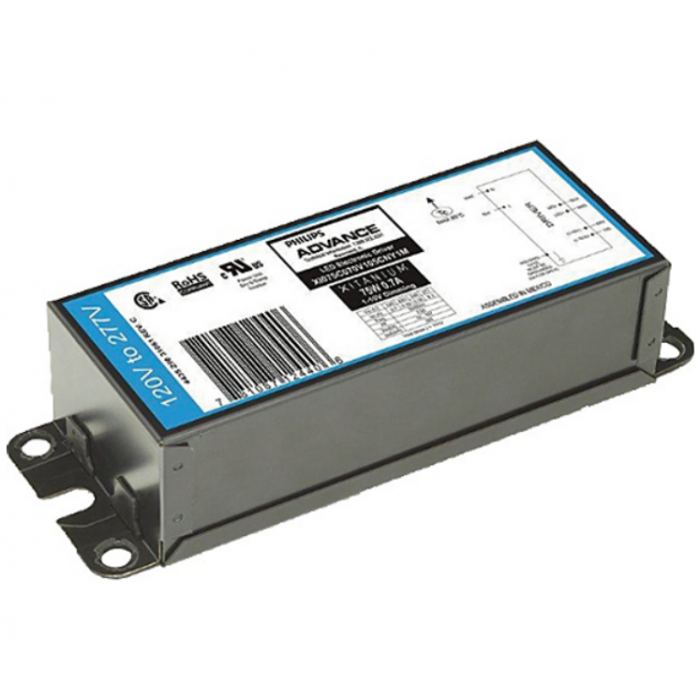

Advance Xitanium XI095C275V054DNF1 95 Watt Constant Current LED Driver

Mfg # XI075C053V140CNY1M Item # 11922 Order Code XI095C275V054DNF1

95 Watts - Programmable Constant Current (1.0 – 2.75A) - Input: 120-277v - Dimmable 5% DISCONTINUED by Advance.  WILL SHIP the new generation replacement version - Advance XI095C275V054BSF2.   The XI095C275V054BSF2 has the same overall specs and configuration, but now comes with SimpleSet programming abilities.

Product Details +

Philips Advance Xitanium XI095C275V054DNF1 95 Watt Constant Current LED Driver

• UL Class 2 output with Adjustable Output Current
• Housing with high thermal capabilities
• 0-10V Dimming

Specifications +

Order Code	XI095C275V054DNF1
Input Volts	120-277V
Output Current	1.0 – 2.75
Watts	96
Brand	Advance
LED Type	Constant Current
Class	Class 2
Dimmable	Yes
Dimming Type	0-10v
Dimming Range	5%-100%
Mfg #	XI075C053V140CNY1M
Dimensions	8.44" x 2.35" x 1.52"
Product Data Sheet	XI075C053V140CNY1M
Case Size	1
Warranty	5 Years
