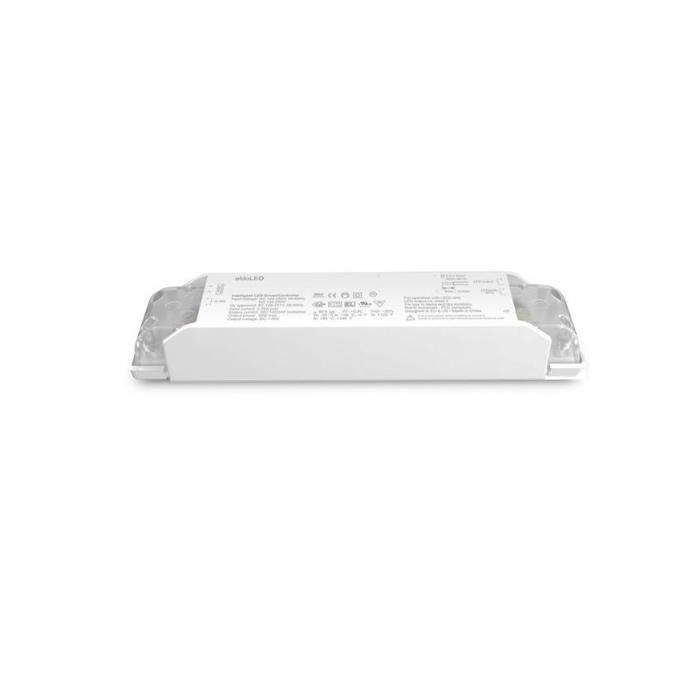

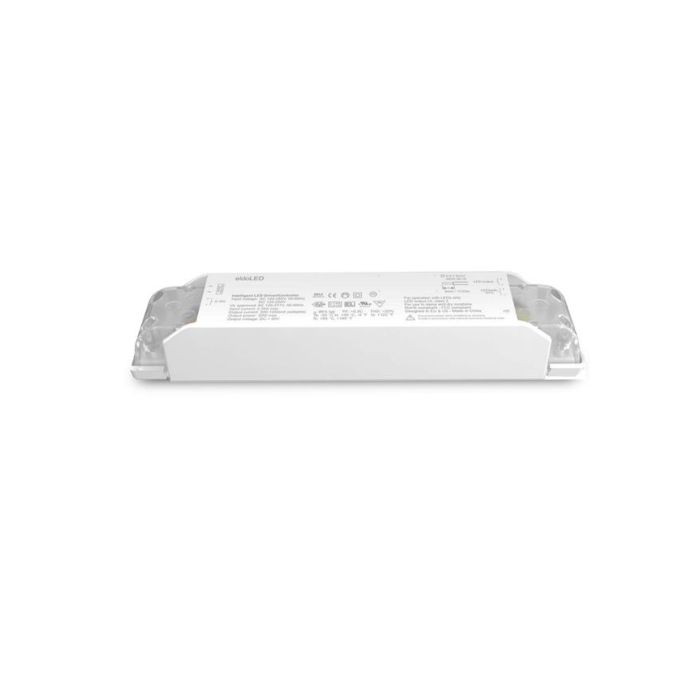

361/A eldoLED SOLOdrive SL0361A6 30W Constant Current LED Driver

Mfg # 361/A Item # 16661 Order Code SL0361A6

SOLOdrive Programmable Constant Current Dimmable LED Driver: 30 Total Watts, 150 - 1400mA Output Current, 55 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 100-0.1% Dimming Range

$95.88
$84.70

eldoLED LED Drivers

361/A eldoLED SOLOdrive SL0361A6 30W Constant Current LED Driver

  • Programmable SOLOdrive LED driver (150 - 1400mA)
  • Dim to dark, smooth brightness changes, excellent flicker performance, adaptable dimming curves, configurable minimum dimming level
  • Seamless interoperability with LED modules, controls and in-luminaire intelligent devices
  • Universal input voltage range, low inrush current and total harmonic distortion (THD), high power factor and efficiency
  • Hybrid HydraDrive technology is proven to work in TV studios and security camera environments
Life (hrs) 50,000
Order Code SL0361A6
Input Volts 120-277 VAC
Output Current 150 - 1400mA
Brand eldoLED
LED Type Constant Current
Certifications cRU, UL, RoHS, ENEC
Class Class 2
Dimmable Yes
Dimming Type 0-10v
Mfg # 361/A

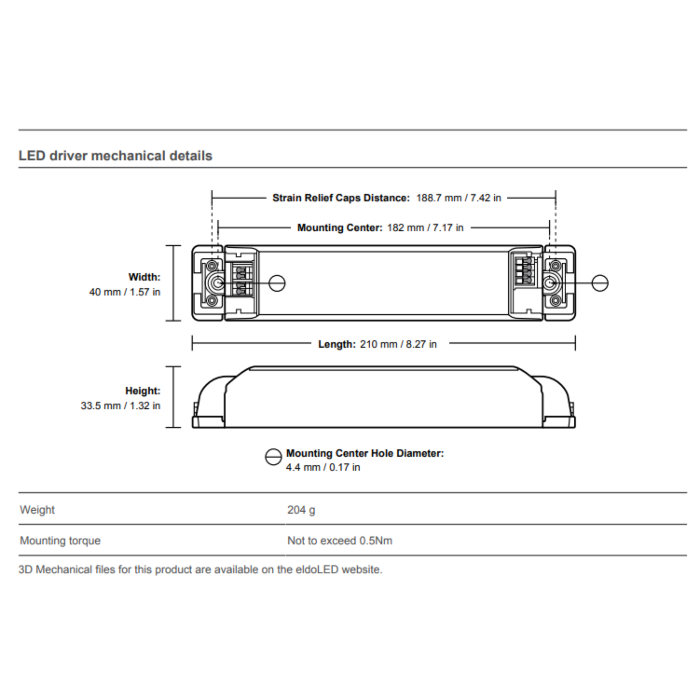

Dimensions 8.27 in. x 1.57 in. x 1.32 in.
Product Data Sheet
Warranty Manufacturers 5 Year
UPC 00193048260045
