1061/S eldoLED POWERdrive PW1061S1 100W Constant Current LED Driver

Mfg # 1061/S Item # 16668 Order Code PW1061S1

POWERdrive Programmable Constant Current Dimmable LED Driver: 100 Total Watts, 200 - 1050mA Output Current, 57 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, DMX/RDM Dimming Control, 100-0.1% Dimming Range

$248.23
$198.58

eldoLED LED Drivers

1061/S eldoLED POWERdrive PW1061S1 100W Constant Current LED Driver

  • Programmable POWERdrive LED driver (200 - 1050mA)
  • POWERdrive has multiple constant current outputs that are independently controlled via DALI or DMX/RDM
  • Create your color or dynamic show without an external controller in standalone mode. POWERdrive consistently delivers the right color and smoothest fades.
  • 4 control channels
  • UL Class 2
Life (hrs) 50,000
Order Code PW1061S1
Input Volts 120-277 VAC
Output Current 200 - 1050mA
Max Output Voltage 57
Watts 100
Brand eldoLED
LED Type Constant Current
Certifications cRU, UL, RoHS, ENEC
Class Class 2
Dimmable Yes
Dimming Type DMX/RDM
Mfg # 1061/S

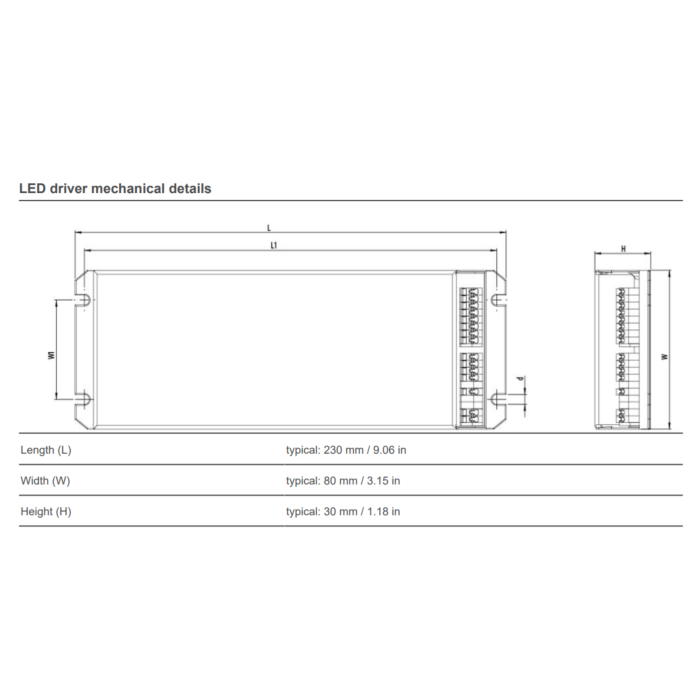

Dimensions 9.06 in. x 3.15 in. x 1.18 in.
Product Data Sheet
Warranty Manufacturers 5 Year
UPC 00889804904062
