Advance Mark 10 REZ-2S32-SC T8 Dimming Ballast - *DISCONTINUED*
Special Price
$77.63
Regular Price
$101.44
SKU
7445
Advance Mark 10 REZ-2S32-SC for (2) F17T8, (2) F25T8, (2) F32T8
DISCONTINUED by Advance!!!

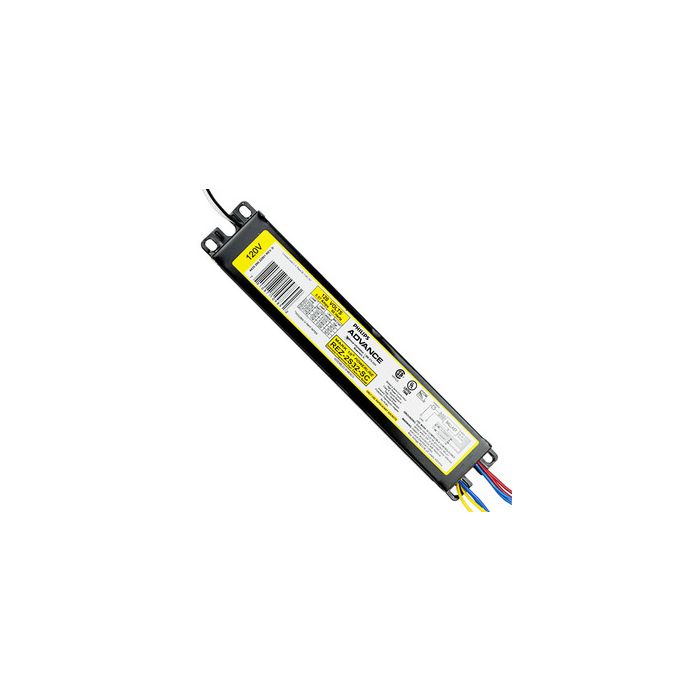

Advance Mark 10 REZ-2S32-SC Dimming Ballast
Mark 10 Powerline electronic controllable ballasts for linear T8 lamps combine the long life and energy efficiency of fluorescent technology with the controllability and full-rangedimming of incandescent systems. And they’re easy to install because they require no additional wiring.
- Programmed Start
- Ballast operates from 60 Hz input source of 120V as applicable with sustained variations of +/- 10%
- Direct operation from a 0-10V control signal
- Class A Sound Rating
- control lamp light output from 100% - 5% relative light output for T8 and CFL lamps and 100% - 1% relative light output for T5/HO lamps
| Order Code | REZ2S32SC |
|---|---|
| Brand | Advance Mark 10 |
| Mfg # | REZ2S32SC35M |
| # of Lamps | 2 Lamps |
| Product Data Sheet | |
| Certifications | Class P, CSA, FCC Part 18 (Class A), Outdoor Type 1, Sound Rated: A, UL |
| Equivalents | Lutron FDB-2427-120-2, Lutron FDB-3627-120-2, FDB-4827-120-2, Lutron 2W-T832-120-2 |
| Start Method | Programmed Start |
| Starting Temperature | 50ºF, 10ºC |
| Lamps | (2) F17T8, (2) F25T8, (2) F32T8 |

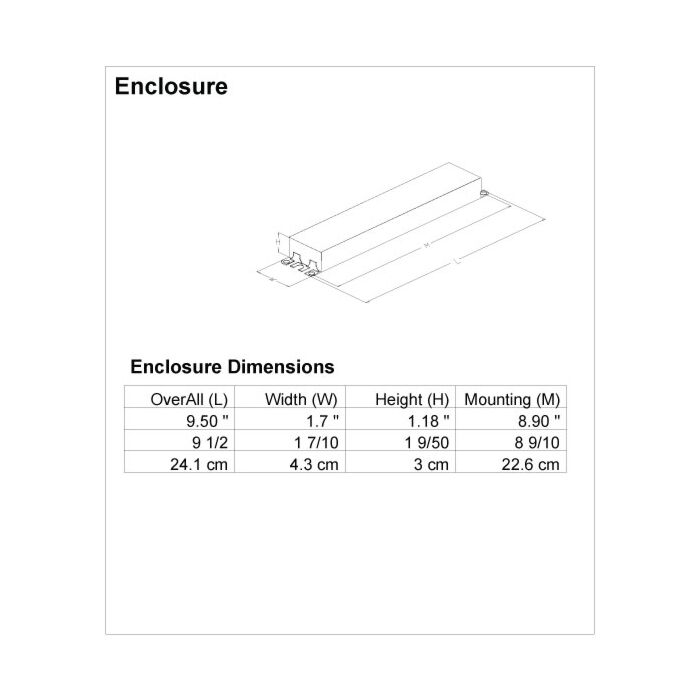

| Dimensions | 9.5" x 1.7" x 1.18" |
| Case Size | ea |
| Warranty | 5 Year Advance Warranty |
| UPC | 781087109892 |
