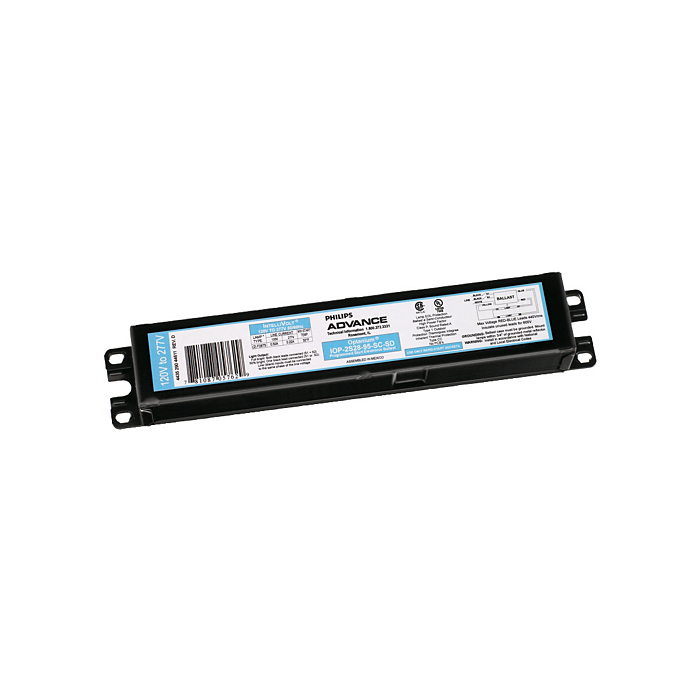

Advance Optanium IOP-2S32-SC-SD T8 Electronic Step Dimming Ballast

Special Price $69.50 Regular Price $92.77

SKU

6849

F32T8 Step Dimming Ballast - 120-277v

Also see the GE 73233 as a possible cross reference equivalent.

The Philips Advance version step dims to 50% whereas the the GE version step dims to 60%. But they both run the same lamps and wire in the same way.

Advance IOP-2S32-SC-SD T8 Step Dimming Ballast

0%, 50%, 100% Switch Control

Input voltage of 120-277V

Program Start

Suitable for outdoor use

UL recognized

5 year warranty

More Information
Order Code	IOP2S32SCSD
Input Volts	120-277V
Brand	Advance Optanium
Mfg #	IOP2S32SCSD35i
Dimming Type	Step-Dim
Dimming Range	0%, 50%, 100%
# of Lamps	1 Lamp, 2 Lamps
Product Data Sheet	IOP2S32SCD
Certifications	CSA, Outdoor Type 1, Sound Rated: A, UL
Equivalents	IOP2S32SCSD35M , IOP2S32SCSD35i
Start Method	Program Start
Starting Temperature	0ºF/-18ºC
Lamps	F17T8 , F25T8 , F32T8/ES (25W) (2) , F32T8/ES 28W@100% (2) , F32T8/ES 28W@50% (2) , F32T8@100% , F32T8@50%
Dimensions	9.5" (L) X 1.7" (W) X 1.18" (H)
Case Size	20
Warranty	5 Year Warranty Advance Warranty
UPC	781087131176
