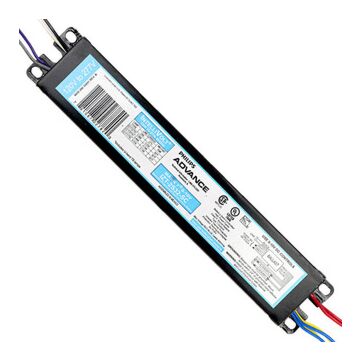

Advance Mark 7 VZT-4S32-HL T8 Dimming Ballast

Special Price $104.75 Regular Price $157.12

SKU

BD1-VZT-4S32-HL

Advance Mark 7 0-10V VZT-4S32-HL for (4) F32T8. Input 277v.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Advance Mark 7 0-10V VZT-4S32-HL Dimming Ballast

The Mark 7 0-10V series of controllable electronic ballasts are ideal for energy management systems in a broad range of commercial, institutional, and retail applications. They offerfull-range continuous dimming and help support sustainable (green) design.

Direct operation from a 0-10V control signal

Class A sound rating

Operates from 50/60 Hz input source of 277V with sustained variations of +/- 10% (voltage and frequency). IntelliVoltmodels shall operate from 50/60 Hz input source of 277V with sustained variations of +/- 10%

Programmed start

Controls lamp light output from 100% - 3% relative light output for series operation T8 and CFL lamps, 100% - 10% relativelight output for parallel operation T8 and 100% - 1% relative light output for T5/HO lamps

More Information

More Information
Order Code	VZT4S32HL01M
Input Volts	277V
Brand	Advance Mark 7 0-10V
Mfg #	VZT4S32HL01M
# of Lamps	4 Lamps
Product Data Sheet	VZT-4S32-HL Mark 7 Brochure
Certifications	Class P, CSA, FCC Part 18 (Class A), Outdoor Type 1, Sound Rated: A, UL
Equivalents	NA
Start Method	Programmed Start
Starting Temperature	50ºF, 10ºC
Lamps	(4) F32T8

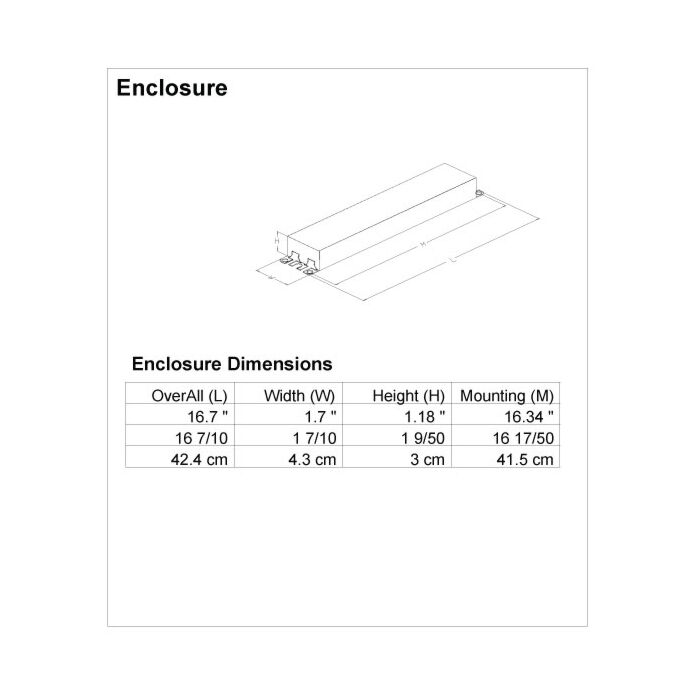

Dimensions	16.7" x 1.18" x 1"
Case Size	ea
Warranty	5 Year Advance Warranty
UPC	781087055564
