Lutron Hi-Lume 3D H3DT832CU210 T8 Dimming Ballast - DISCONTINUED

Special Price $338.95 Regular Price $390.00

SKU

6925

2 Lamps 32 Watt T8 Dimming Ballast - 0.7% to 100% Dimming Range - 3-Wire, EcoSystem, - Input: 120/240/277V

DISCONTINUED by Lutron!!!

Skip to the end of the images gallery

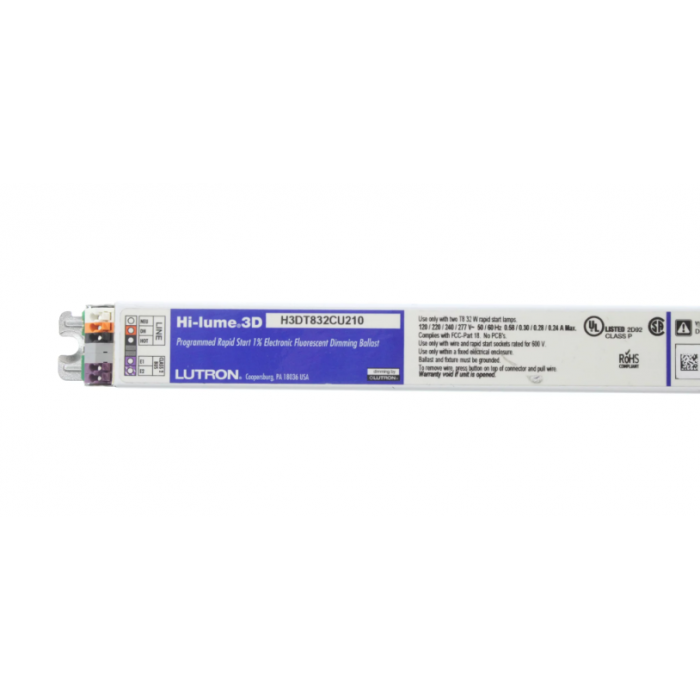

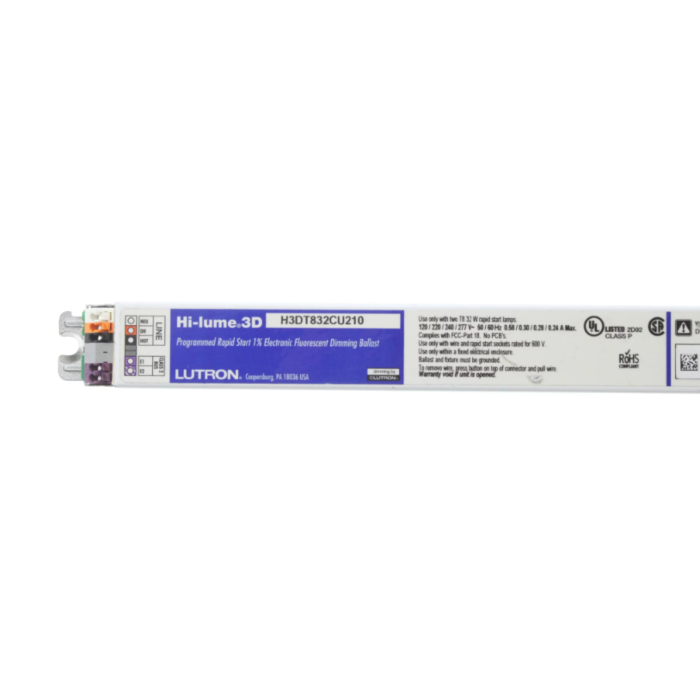

Lutron EcoSystem Hi-Lume 3D H3DT832CU210 T8 Dimming Ballast

Continuous, flicker-free dimming from 100% to 0.7%

Compatible with EcoSystem Digital Bus control, GRAFIK Eye® QS, PowPak and Quantum®

Supports standard 3-wire line-voltage phase control technology

Programmed rapid start design ensures full-rated lamp life while dimming and cycling

Ultra-quiet operation

More Information
Order Code	H3DT832CU210
Input Volts	120/240/277V
Brand	Lutron
Family	Hi-Lume 3D
Mfg #	H3DT832CU210
Dimming Type	3-Wire, EcoSystem
Dimming Range	0.7%-100%
# of Lamps	2 Lamps
Product Data Sheet	H3DT832CU210
Certifications	Class P, CSA, UL
Equivalents	Lutron: EC3T832CU210
Start Method	Programmed Rapid Start
Starting Temperature	50℉, 10℃
Lamps	(2) 32 watt T8 lamps
Dimensions	18" x 1.18" x 1.0"
Warranty	5-year limited warranty with Lutron field service commissioning (3-year standard warranty) from date of purchase.
UPC	27557775335
