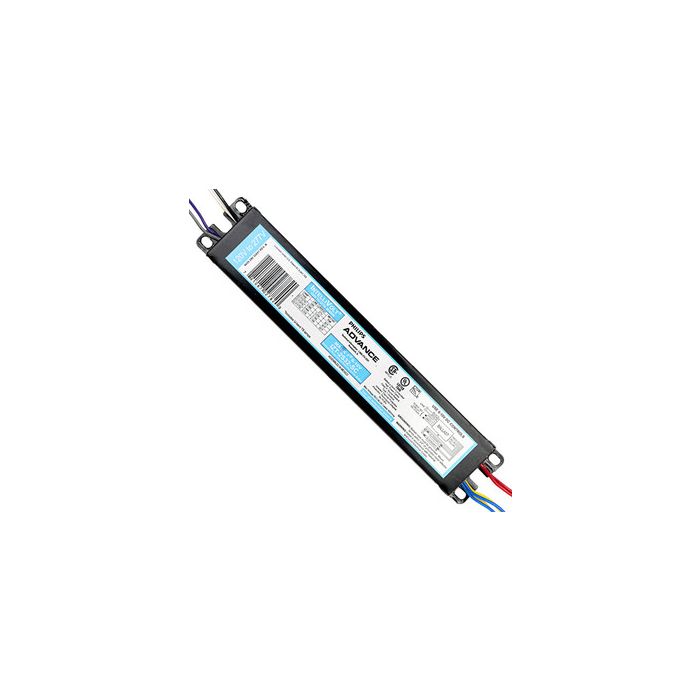

Advance Mark 7 IZT-2PSP32-SC T8 Dimming Ballast

1 review(s)

Special Price $68.63 Regular Price $101.44

SKU

BD1-IZT2PSP32SC

Buy 22 for $63.40 each and save 8%

Advance Mark 7 0-10V IZT-2PSP32-SC for (2) F17T8, (2) F25T8, (2) F32T8. Input 120-277v.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Advance Mark 7 0-10V IZT-2PSP32-SC Dimming Ballast

The Mark 7 0-10V series of controllable electronic ballasts are ideal for energy management systems in a broad range of commercial, institutional, and retail applications. They offer full-range continuous dimming and help support sustainable (green) design.

Direct operation from a 0-10V control signal

Provides Independent Lamp Operation (ILO) allowing remaining lamp(s) to maintain full light output when oneor more lamps fail

Lamp Current Crest Factor of 1.7

Programmed start

Minimum ballast factor of 1.00 (1-3 lamp models) or 0.88 (4-lamp models with 1.18 for HL versions) at maximum lightoutput and 0.03 at minimum light output for primary lamp

More Information

More Information
Order Code	IZT2PSP32SC35I
Input Volts	120-277V
Brand	Advance Mark 7 0-10V
Mfg #	IZT2PSP32SC35I
# of Lamps	2 Lamps
Product Data Sheet	IZT-2S32-SC Mark 7 Brochure
Certifications	Class P, CSA, FCC Part 18 (Class A), Outdoor Type 1, Sound Rated: A, UL
Equivalents	Lutron TVE-T832-120-2, Lutron TVE-T832-277-2
Start Method	Programmed Start
Starting Temperature	50ºF, 10ºC
Lamps	(2) F17T8, (2) F25T8, (2) F32T8
Dimensions	09/08/01 7:01 AM
Case Size	ea
Warranty	5 Year Advance Warranty
UPC	781087134849
