Name: KT-EMRG-LED-5-500-AC /DF Keystone 5W Constant Wattage Emergency LED Driver
Brand: Keystone
SKU: 17042
Price: 116.67 USD
Availability: InStock

Mfg # KT-EMRG-LED-5-500-AC /DF Item # 17042 Order Code DUE-53

Emergency LED Driver : Non-Dimmable, 5 Total Watts, 100 mA Max Output Current, 100 VDC Output Voltage, 120-277 VAC Input Voltage, Non-Class 2, 90 minutes Illumiation Time, 24 hours Recharge Time

$145.83

$116.67

Keystone Emergency LED Drivers

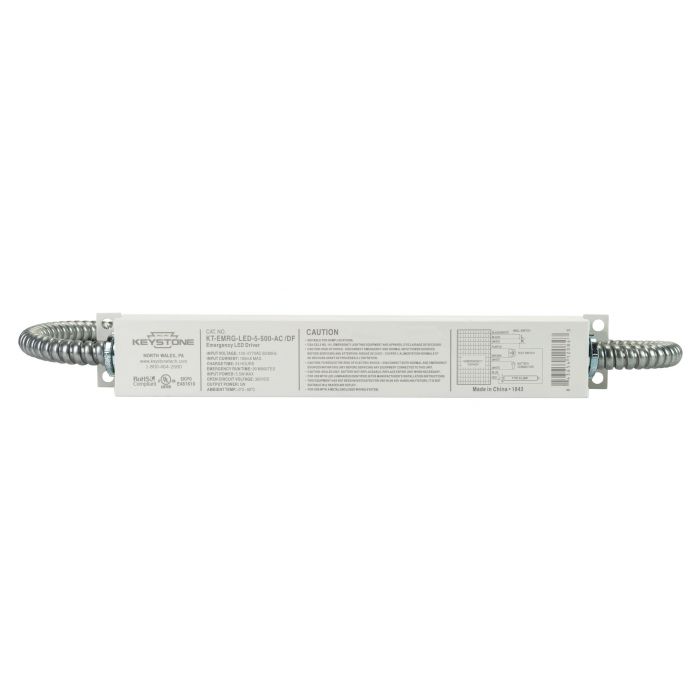

KT-EMRG-LED-5-500-AC /DF Keystone 5W Constant Wattage Emergency LED Driver

Optimized for recessed LED downlight fixtures and retrofit kits, and Keystone DirectDrive compact lamps. Contact Keystone for details on functioning with other LED products
Illuminates entire LED load at reduced output under emergency mode
One-piece design with metal housing
2-in-1 LED test switch and indicator light included
Dual-flex conduit fits into 1/2" knockouts
Not for use with dimmers
Evaluated to UL 924 requirements
90-minute operation in emergency mode
UL listed
Operating temperature: 0oC/32oF to 50oC/122oF
Input frequency: 50/60 Hz
Maximum load: 50W
Li(NiCoMn)O2 battery

Order Code	DUE-53
Input Volts	120-277 VAC
Brand	Keystone
Mfg #	KT-EMRG-LED-5-500-AC /DF
Product Data Sheet	KT-EMRG-LED-5-500-AC /DF
LED Type	Constant Wattage
Certifications	cULus, UL, RoHS
Life (hrs)	8760 hrs/year for 5 year warranty
Output Current	100 mA Max
Watts	5

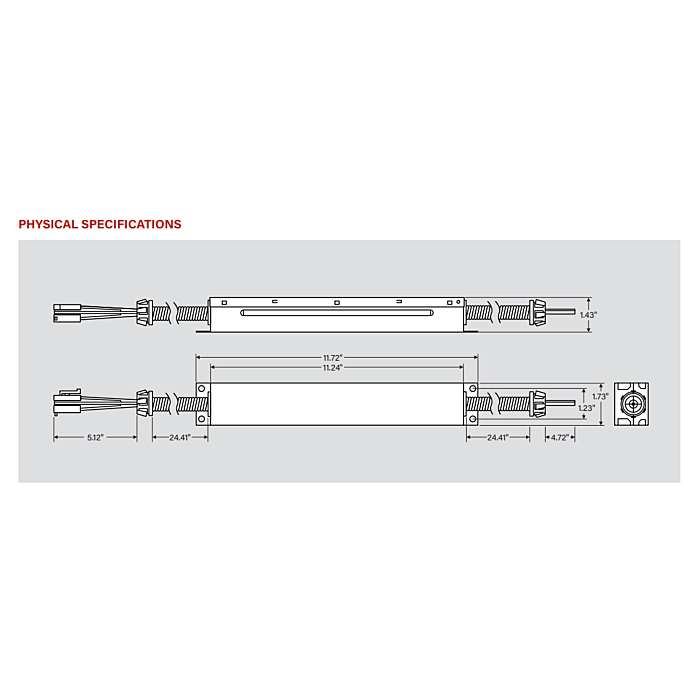

Dimensions	9.5 in. x 1.32 in. x 1.32 in.
Dimmable	No
Warranty	Manufacturer's 5 year - 8760 hrs/yr
Class	Non-Class 2
UPC	843654120843
