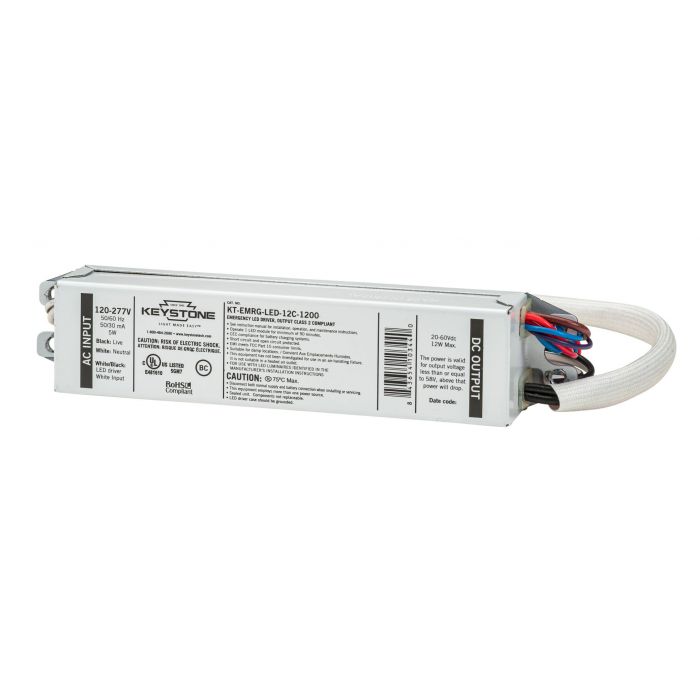

KT-EMRG-LED-12C-1200 Keystone 12W Constant Power Emergency LED Driver
Special Price
$110.42
Regular Price
$138.02
SKU
17050
Emergency LED Driver : Non-Dimmable, 12 Total Watts, 600mA @ 20Vdc, 206mA @ 58Vdc Output Current, 60 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 90 minutes Illumiation Time, 24 hours Recharge Time
KT-EMRG-LED-12C-1200 Keystone 12W Constant Power Emergency LED Driver
- UL 924, Complies with CEC Title 20 Efficiency Standards
- IP20 design for dry and damp locations
- Over voltage protection
- Over current protection
- Short circuit protection
- Over temperature protection
- 5-year warranty
| Order Code | OJQ-32 |
|---|---|
| Input Volts | 120-277 VAC |
| Brand | Keystone |
| Mfg # | KT-EMRG-LED-12C-1200 |
| Product Data Sheet | |
| LED Type | Constant Power |
| Certifications | CEC, cULus, FCC, IP20, Title20, RoHS, Damp Location, Dry Location, EN61000-3-2 Harmonic Current Emissions Class C, FCC Part 15 Class B |
| Life (hrs) | 8760 hrs/year for 5 year warranty |
| Output Current | 600mA @ 20Vdc, 206mA @ 58Vdc |
| Watts | 12 |
| Dimensions | 12.5 in. x 2.29 in. x 1.29 in. |
| Dimmable | No |
| Warranty | Manufacturer's 5 year - 8760 hrs/yr |
| Class | Class 2 |
| UPC | 843654103112 |
