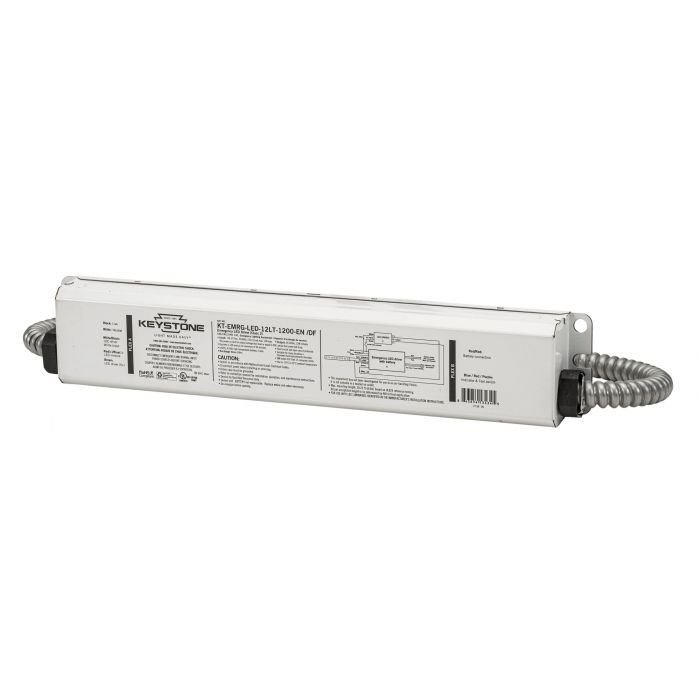

KT-EMRG-LED-12LT-1200-EN /DF Keystone 12W Constant Wattage Emergency LED Driver
Special Price
$149.71
Regular Price
$187.13
SKU
17043
Emergency LED Driver : Non-Dimmable, 12 Total Watts, 600~206 mA Output Current, 60 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 90 minutes Illumiation Time, 24 hours Recharge Time
KT-EMRG-LED-12LT-1200-EN /DF Keystone 12W Constant Wattage Emergency LED Driver
- Operating temperature: -20oC/-4oF to 55oC/122oF
- Built in heater for low temperature operation
- Drives LED loads at 12W (nominal) for a minimum of 90 minutes
- Meets FCC Part 15 (Class B) consumer limits
- Short circuit overload and open load protection
- Suitable for dry and damp locations
- Evaluated to UL 924 standards
- Class 2 output
- Input frequency: 50/60 Hz

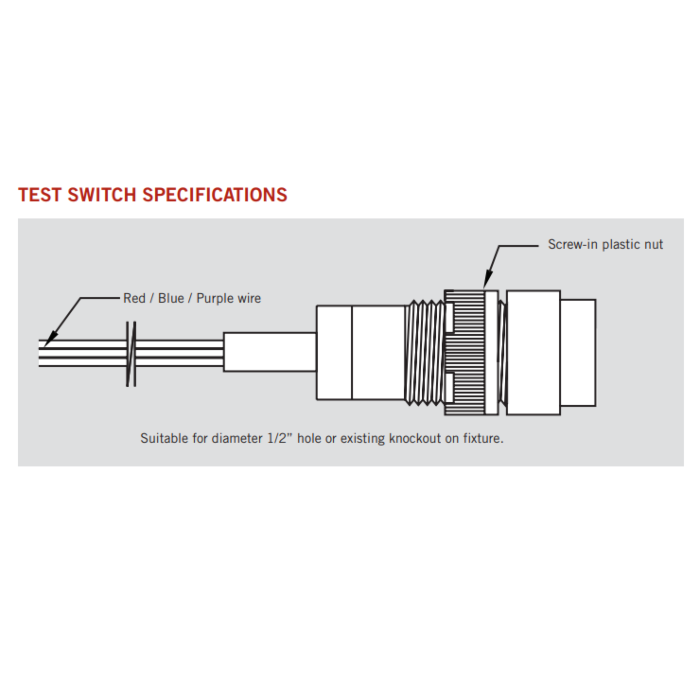

- Test switch/Charging indicator light and wall plate included
- Battery capacity: 3000mAh; LiFePO4
- Dual flex conduit fits into 1/2" knockouts
- Listed for field or factory installation: UL 924 and CSA C22.2 no. 141 emergency lighting compliant
| Order Code | NUL-73 |
|---|---|
| Input Volts | 120-277 VAC |
| Brand | Keystone |
| Mfg # | KT-EMRG-LED-12LT-1200-EN /DF |
| Product Data Sheet | |
| LED Type | Constant Wattage |
| Certifications | cULus, RoHS, Damp Location, Dry Location, FCC Part 15 Class B, Class 2 Output, NLB |
| Life (hrs) | 8760 hrs/year for 5 year warranty |
| Output Current | 600~206 mA |
| Watts | 12 |

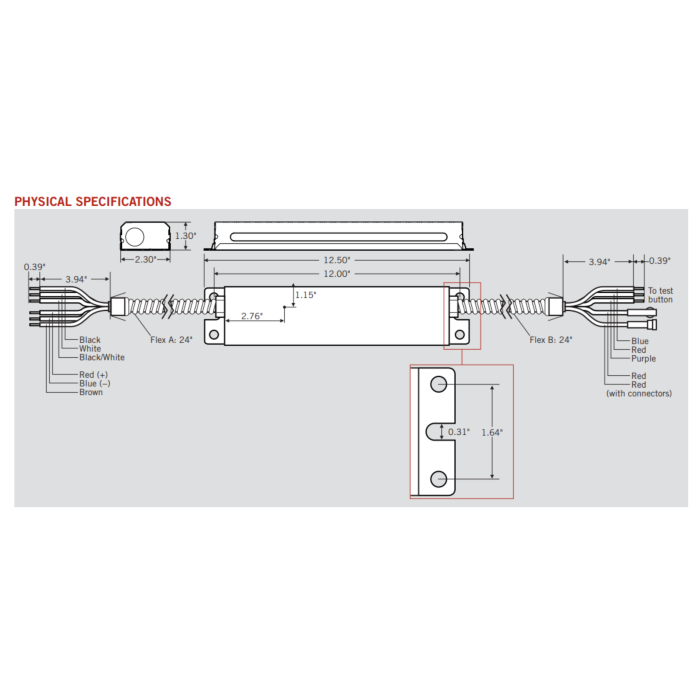

| Dimensions | 12.5 in. x 2.3 in. x 1.3 in. |
| Dimmable | No |
| Warranty | Manufacturer's 5 year - 8760 hrs/yr |
| Class | Class 2 |
| UPC | 843654134345 |
