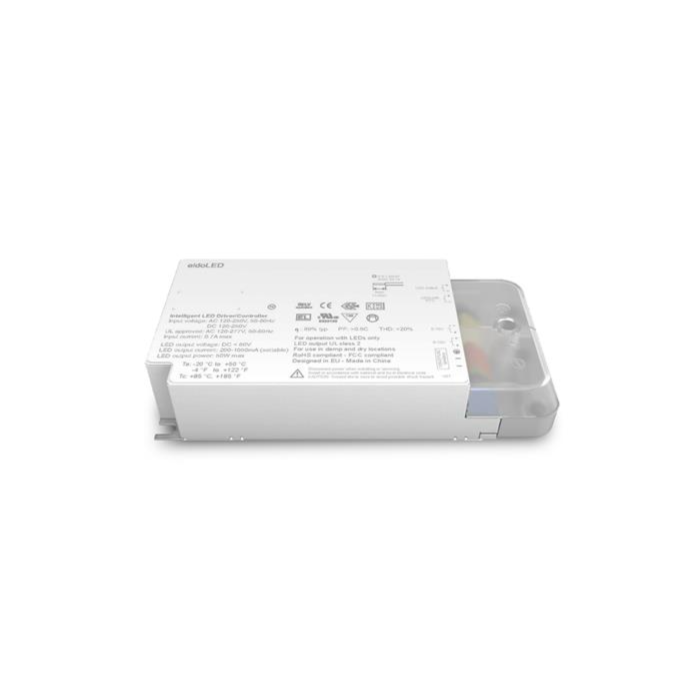

561/S eldoLED ECOdrive EC0561S3 50W Constant Current LED Driver

Mfg # 561/S Item # 16659 Order Code EC0561S3

ECOdrive Programmable Constant Current Dimmable LED Driver: 50 Total Watts, 150 - 1400mA Output Current, 55 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 1%-100% Dimming Range

$97.90
$84.24

eldoLED LED Drivers

561/S eldoLED ECOdrive EC0561S3 50W Constant Current LED Driver

  • Programmable digital ECOdrive LED driver (150 - 1400mA)
  • Flicker-free dimming to 1% light output
  • The LED driver is compatible with the 0-10V lighting control protocol
  • You can program ECOdrive outputs to include time, motion and brightness-based intelligence
  • ECOdrive supports wireless communications and control through Bluetooth radio accessories for Casambi and Atrius IoT systems
Life (hrs) 50,000
Order Code EC0561S3
Input Volts 120-277 VAC
Output Current 150 - 1400mA
Watts 50
Brand eldoLED
LED Type Constant Current
Certifications UL, RoHS, ENEC
Class Class 2
Dimmable Yes
Dimming Type 0-10v
Mfg # 561/S

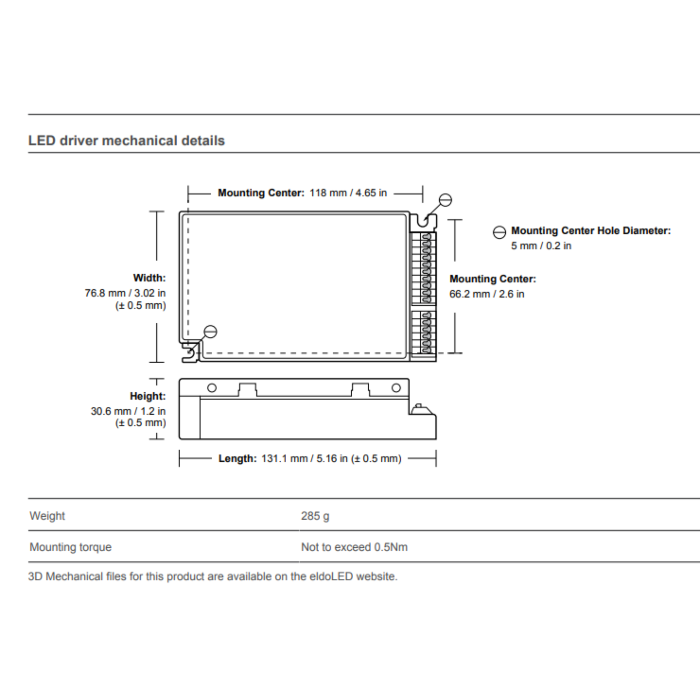

Dimensions 5.16 in. x 3.02 in. x 1.2 in.
Product Data Sheet
Warranty Manufacturers 5 Year
UPC 00191723438307
