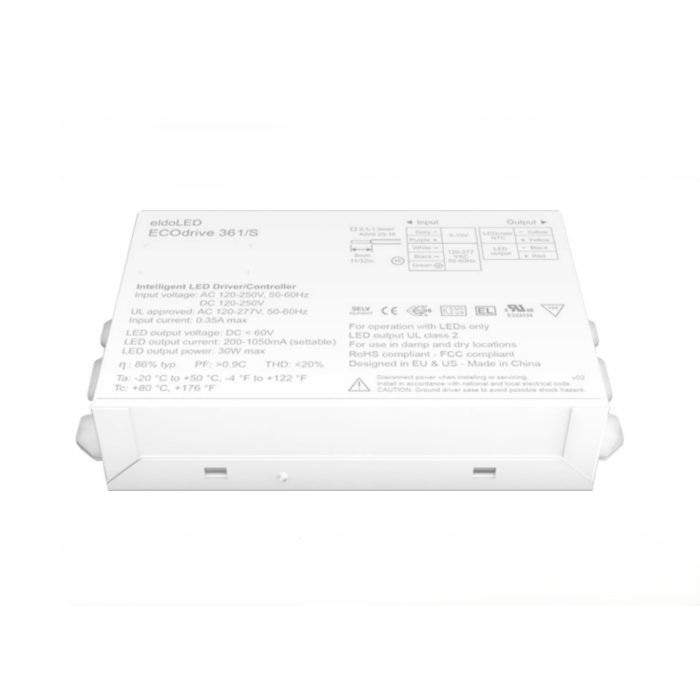

361/S eldoLED ECOdrive EC0361S3 30W Constant Current LED Driver

Mfg # 361/S Item # 16658 Order Code EC0361S3

ECOdrive Programmable Constant Current Dimmable LED Driver: 30 Total Watts, 150 - 1400mA Output Current, 55 VDC Output Voltage, 120-277V Input Voltage, Class 2, 0-10v Dimming Control, 1%-100% Dimming Range

$95.88
$84.70

eldoLED LED Drivers

361/S eldoLED ECOdrive EC0361S3 30W Constant Current LED Driver

  • Programmable digital ECOdrive LED driver (150 - 1400mA)
  • Flicker-free dimming to 1% light output
  • The LED driver is compatible with the 0-10V lighting control protocol
  • You can program ECOdrive outputs to include time, motion and brightness-based intelligence
  • ECOdrive supports wireless communications and control through Bluetooth radio accessories for Casambi and Atrius IoT systems
Life (hrs) 50,000
Order Code EC0361S3
Input Volts 120-277V
Output Current 150 - 1400mA
Brand eldoLED
LED Type Constant Current
Certifications UL, RoHS, ENEC
Class Class 2
Dimmable Yes
Dimming Type 0-10v
Mfg # 361/S

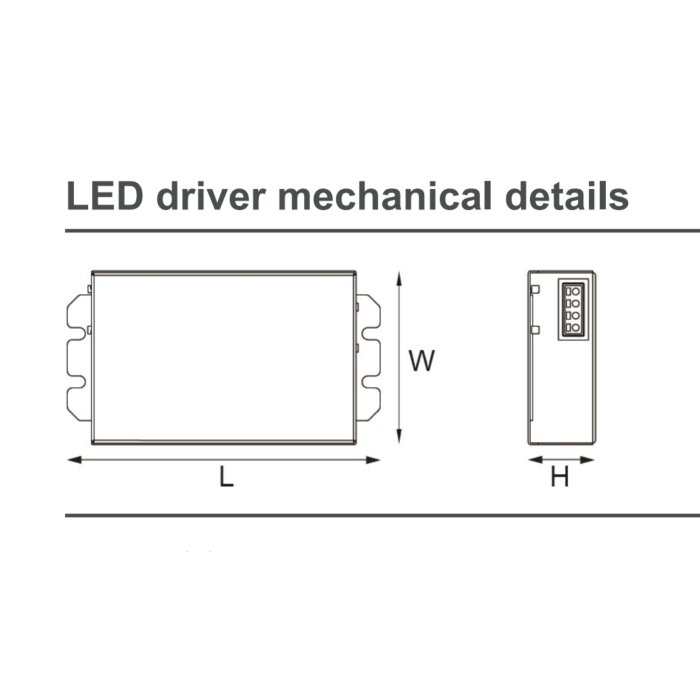

Dimensions 5.12 in. x 2.83 in. x 1.1 in.
Product Data Sheet
Warranty Manufacturers 5 Year
UPC 00191848048498
