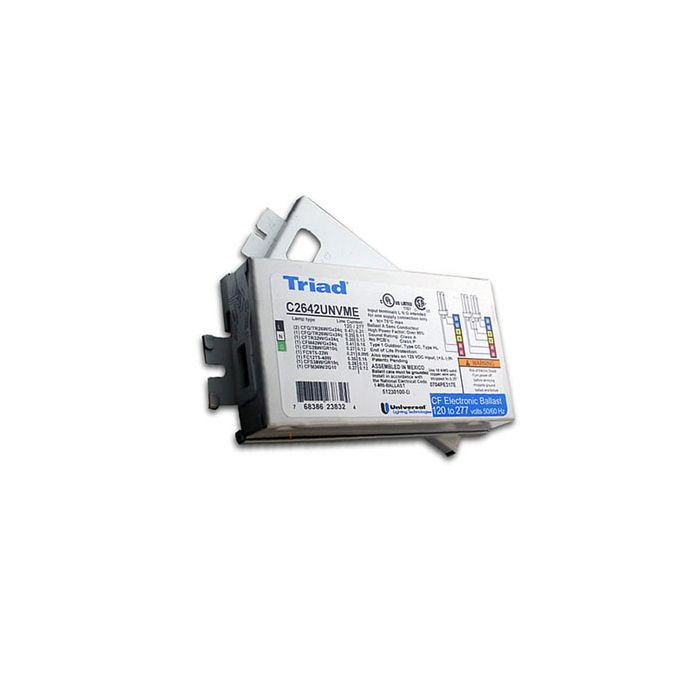

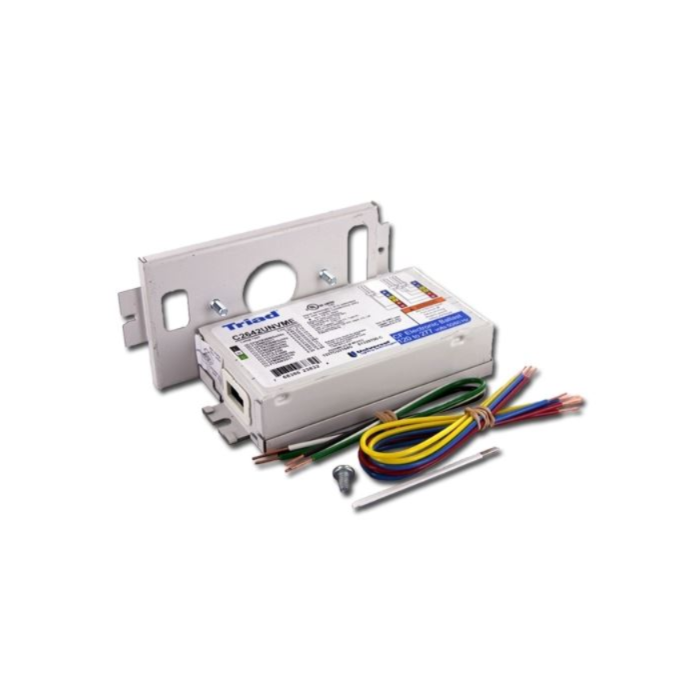

Universal Triad C2642UNVME00K Electronic Compact Fluorescent (CFL) Ballast Kit

Special Price $29.45 Regular Price $37.30

SKU

6967

Universal Triad Electronic Compact Fluorescent (CFL) Ballast - Lamps: (1) CFM42W/GX24q or (1) CFTR32W/GX24q or(1/2) CFQ/TR26W/GX24q or (1) CFS28W/GR10q (2D) 4 pin lamps or (1) FC9T5-22W or (1) FC12T5-40W or(1) CFS38W/GR10q or (1) CFM36W/2G10 or (1/2) FT24W/2G11 -Input:120-277V -Starting: Programmed Start

DISCONTINUED by Universal. LIMITED Stock Remaining!!!

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Universal Triad® Electronic 26W - 42W Compact Fluorescent CFL Ballast Kit

Lead Configuration - Multi-Exit Kit

High Power Factor

Regulation: ±10%

Electronic compact fluorescent ballast(s) for (1) CFM42W/GX24q or (1) CFTR32W/GX24q or(2/1) CFQ26W/GX24q or (2/1)CFTR26W/Gx24q or (1) CFS28W/GR10q (2D) 4-pin lamps or (1) FC9T5-22W or(1) FC12T5-40W or (1) CFS38W/GR10q or (1) CFM36W/2G10 or (2/1) FT24W/2G11

Series Lamp Connection

Meets ANSI Standard C82.11

Sound Rated: A

More Information

More Information
Order Code	C2642UNVMEK
Input Volts	120-277V
Brand	Universal Triad
Mfg #	C2642UNVMEK
# of Lamps	1 Lamp, 2 Lamps
Product Data Sheet	mult-E_Kit_brochure
Certifications	cUL
Equivalents	GE GEC226-MVPS-3W, GEC226-MVPS-BES, GEC226-MVPS-SE Sylvania Osram QTP 2x26CF/UNV, QTP 1x26/32/42CF/UNV, QTP 2x26CF/UNV, QTP2X26CF/UNVBS, QTP2X26CF/UNVTS, QTP2X26CF/UNV DM Advance Philips ICF-2S26, ICF-2S26-H1-LD, ICF-2S26-M1-BS, ICF2S26M1BSQS, ICF-1D38-H1-LD, RCF-2S26-H1-LD-QS, RCF-2S26-M1-BS-QS, VH-2Q26-TP-BLS, VH-2Q26-TP-W, R-1BP27-TP, R-2BP27-TP, R-2Q26-4P-TP, REL-1T32, REL-1T42, V-1BP27-TP, V-2BP27-TP, V-2Q26-4P-TP, VEL-1T32, VEL-1T42 Universal C2642UNVSE, C2642UNVBE, C2642UNVBES, 4140P, 4140PBES, 4145P, 4146P, 4240P, 4240PBES, 4245P, 4246P, C132R120 C2642UNVSE, GLT262-120, GLT262-120L, C132R120BE, C132R120BES, C132R277, C132R277BE, C132R277BES, C132SR120BE, C132SR277BE, C142R120, C142R120BE, C142R120BES, C142R277, C142R277BE, C142R277BES, C226SR120, C226SR120BE, C226SR120BES, C226SR277, C226SR277BE, C226SR277BES, C2240UNV, CBC-126/120, CBC-126/277, CBC-131/220, CBC-131/220BE, CBC-131/220SE, CBC-132/277, CBC-132/277BE, CBC-132/277SE, CBC-226/120, CBC-226/120BE, CBC-226/120SE, CBC-226/277, CBC-226/277BE, CBC-226/277SE
Start Method	Programmed Start
Starting Temperature	0ºF, -18ºC
Lamps	(1) CFM42W/GX24q or (1) CFTR32W/GX24q or(1/2) CFQ/TR26W/GX24q or (1) CFS28W/GR10q (2D) 4 pin lamps or (1) FC9T5-22W or (1) FC12T5-40W or(1) CFS38W/GR10q or (1) CFM36W/2G10 or (1/2) FT24W/2G11
Dimensions	4.94" x 2.31" x 1.00"
Case Size	ea
Warranty	60 Month Universal Limited Warranty
UPC	76838623829
