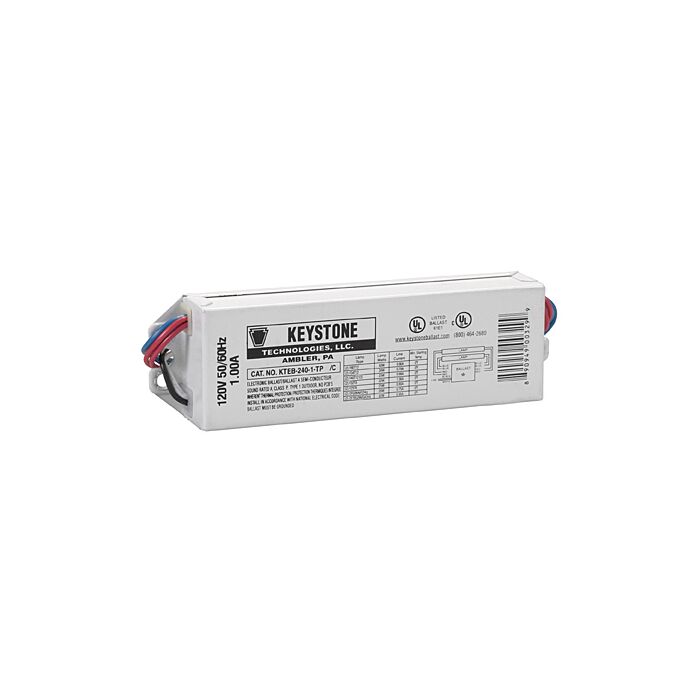

Keystone KTEB-240-1-TP 120V T8/T12 Electronic Fluorescent Ballast

Special Price $16.55 Regular Price $23.10
2x F40T12 - Lamps: (2) F40T12, (2) F34T12, (2) F40T12 (25W Shoplight), (2) F30T12, (2) F32T8, (2) F25T8, (2) CFQ26W/G24q, (2) CFTR32W/GX24q -Input: -Starting: Rapid Start


Keystone KTEB-240-1-TP T8/T12 Electronic Fluorescent Ballast

  • Sound Rated: A
  • Minimum Starting Temperature: 0℉, -18℃
  • Maximum Case Temperature: 167℉, 75℃
  • Meets FCC Part 18 (Class B) Consumer Limits
  • Transient Protection meets ANSI/IEEE C62.41 Cat. A
  • Lamp end-of-life protected
  • 3-Years Warranty
  • UL, cUL 935 listed
More Information
Order Code KTEB-240-1-TP
Input Volts 120V
Brand Keystone
Mfg # KTEB-240-1-TP
# of Lamps 2 Lamps
Product Data Sheet
Certifications cUL, FCC Part 18 (Class B), Sound Rated: A, UL
  • Robertson: es240120tp
  • GE GE240RS120
  • Universal B234SR120MA
  • Start Method Rapid Start
    Starting Temperature 0ºF, -18ºC
    Lamps (2) F40T12, (2) F34T12, (2) F40T12 (25W Shoplight), (2) F30T12, (2) F32T8, (2) F25T8, (2) CFQ26W/G24q, (2) CFTR32W/GX24q

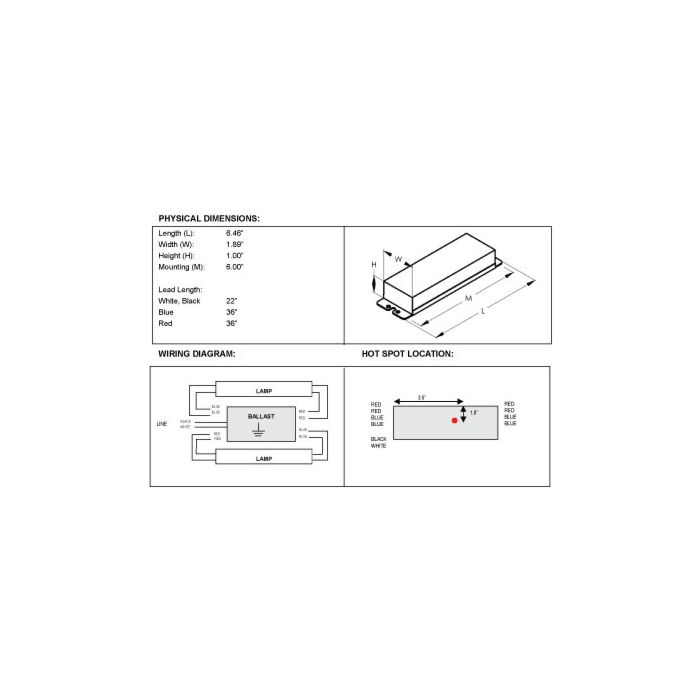

    Dimensions 6.46”(L) x 1.89”(W) x 1.00”(H)
    Case Size 1
    Warranty 36 Month Keystone Limited Warranty
    UPC 890949001929
    View the trust certificate
    • For further information on the nature of the review controls, as well as the possibility of contacting the author of the review please consult our  GCU.
    • No inducements have been provided for these reviews.
    • Reviews are published and kept for a period of five years .
    • Reviews can not be modified: If a customer wishes to modify their review then they can do so by contacting Verified Reviews directly to remove the existing review and publish an amended one .
    • The reasons for deletion of reviews are available here.

    4.9 /5

    Based on 14 customer(s) reviews

    • 1
    • 2
    • 3
    • 4
    • 5

    Marc M.   published 04/12/2021 following an order made on 03/13/2021


    This was the model that we needed. The wiring was updated. A good full sized diagram was provided. We learned we could use T8 instead of the older T12 bulbs. This was a complete success!

    Anonymous customer   published 10/22/2020 following an order made on 10/14/2020


    Easy to install

    Anonymous customer   published 01/04/2020 following an order made on 12/17/2019


    Though now regarded as antiquated technology and hard to find, the product was priced exceptionally low, almost as if a gesture of generosity.

    Anonymous customer   published 09/13/2019 following an order made on 08/31/2019


    Very easy to match old ballast with the correct replacement matching numbers and pictures.

    Anonymous customer   published 06/23/2017 following an order made on 06/17/2017



    Anonymous customer   published 05/12/2017 following an order made on 05/09/2017


    Received order very quickly.

    Anonymous customer   published 02/03/2017 following an order made on 02/03/2017


    easy for the DIY

    Anonymous customer   published 09/07/2016 following an order made on 09/07/2016


    This is a direct replacement for my lights.

    Anonymous customer   published 08/31/2016 following an order made on 08/31/2016


    Replacement / upgrade matched wiring of failed ballast, allowing easy replacement.

    Anonymous customer   published 08/19/2016 following an order made on 08/13/2016


    See above
