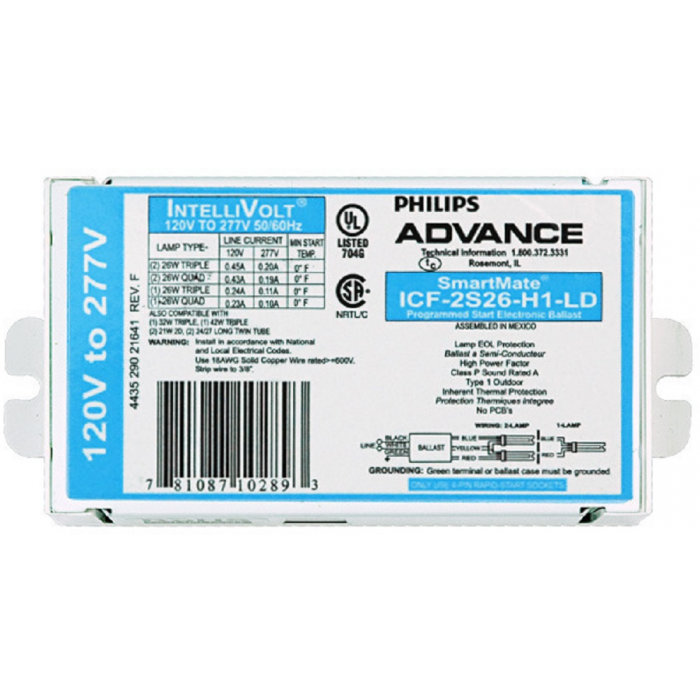

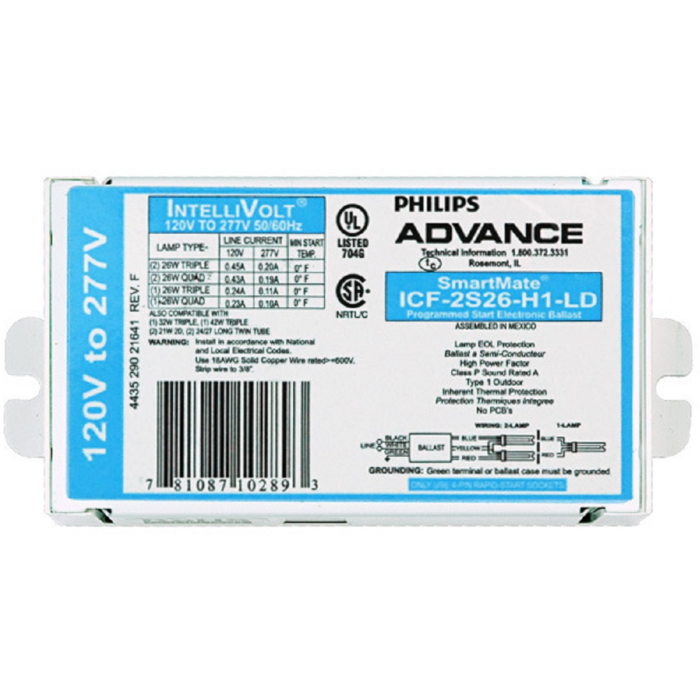

Advance SmartMate ICF-2S26-H1-LD Electronic Compact Fluorescent (CFL) Ballast (NON-Kit)

Special Price $14.67 Regular Price $22.00
SKU
BD27-ICF2S26H1LD
Advance SmartMate Electronic Compact Fluorescent (CFL) Ballast - Lamps: (1/2) 26 Watt, (1) 32/42 Watt, (2) 21/24 Watt, 4-Pin Lamps -Input:120-277V -Starting: Programmed Start
ICF-2S26-H1-LD

Advance Philips Electronic Compact Fluorescent Ballast

  • High Power Factor
  • Operates from 60 Hz input source of 120-277V with sustained variations of +/- 10% (voltage and frequency).
  • Volts: 120/277V
  • Programmed Start Method
  • Min Starting Temp: 0ºF, -18ºC
  • Case Temp: 75°C
  • <10% THD
  • More Information
    Order Code ICF2S26H1LD
    Input Volts 120-277V
    Brand Advance Smartmate
    Mfg # ICF-2S26-H1-LD
    # of Lamps 1 Lamp, 2 Lamps
    Product Data Sheet
    Certifications CSA, UL
    Equivalents
  • Sylvania QTP 2x26CF/UNV DM
  • Universal C2642UNV-BE, C2642UNV-SE
  • Start Method Programmed Start
    Starting Temperature 0ºF, -18ºC

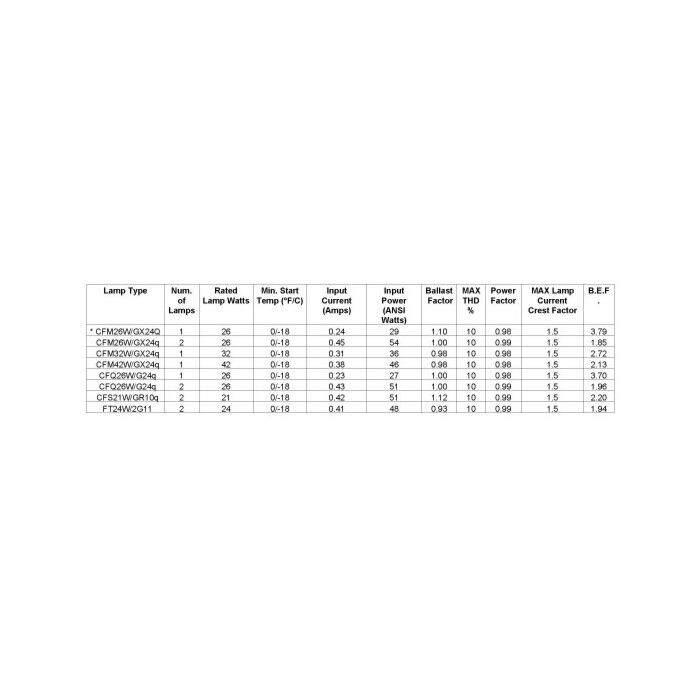

    Lamps (1/2) 26 Watt, (1) 32/42 Watt, (2) 21/24 Watt, 4-Pin Lamps

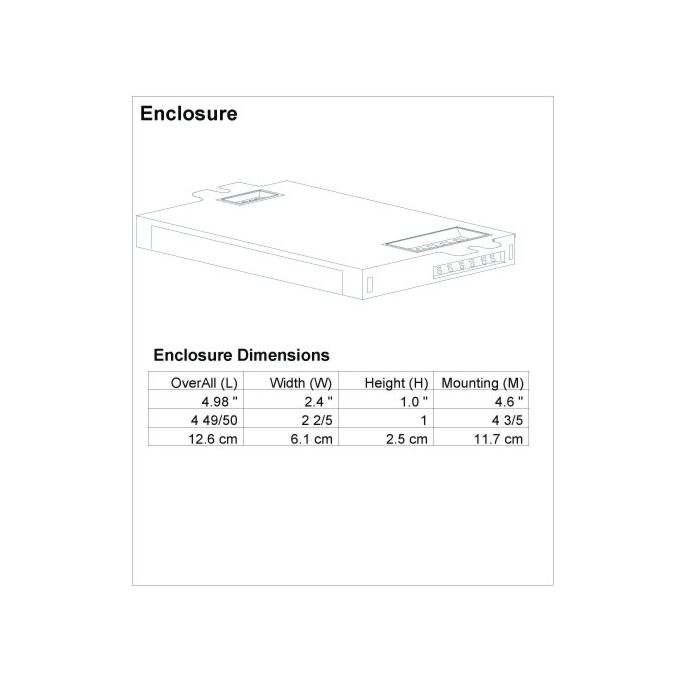

    Dimensions 4 49/50" x 2 2/5" x 1"
    Case Size 12
    Warranty Up to 60 Month Advance Philips Limited Warranty
    UPC 781087107423
