Magnitude M20L12DC-AR Constant Voltage LED Driver

Special Price $66.00 Regular Price $99.00
SKU
BD31-M20L12DC-AR
Constant Voltage - Input: 120V - Output: 12V - 20 Watts
Magnitude

Magnitude M2012DC-AR Magnetic Dimmable LED Driver

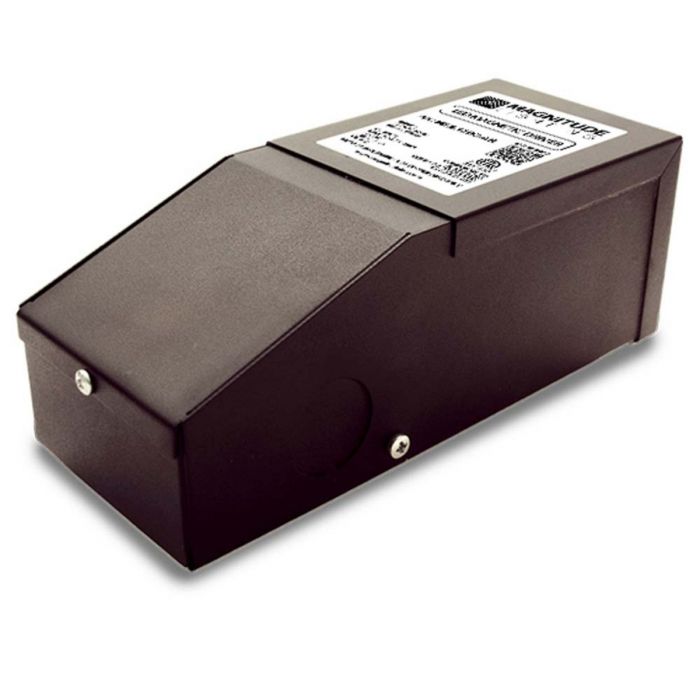

Magnitude’s M20L12DC-AR has a magnetic core and is the most compact LED driver on the market. It is equipped with two auto-reset breakers on the input and output which protect both the load and driver. This driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation.

  • Dimmable with any standard MLV TRIAC dimmer (see recommended dimmer list)
  • Dual protection - primary and secondary auto-reset circuit breakers
  • Nema 3R Enclosure - Outdoor Use
  • Two bottom knock-outs
  • ETL Listed and certified to CSA Standard
  • More Information
    Order Code M20L12DC-AR
    Input Volts 120V
    Output Current 3.96A
    Output Voltage 12V
    Watts 20
    Brand Magnitude
    LED Type Constant Voltage
    Mfg # M20L12DC-AR
    Dimensions 5.6" x 2" x 2.14"
    Product Data Sheet
    Case Size 1
    Warranty 5 Year Magnitude Warranty
