Advance 71A8753-001 1000 Watt High Pressure Sodium Ballast Kit

Special Price $294.17 Regular Price $441.26

SKU

LD-71A8753-001

1000 Watt High Pressure Sodium Ballast - Lamps: 1000 Watt S52 High Pressure Sodium Ballast -Input:120/208/240/277/480V -Starting: Pulse Start

Advance 71A8753-001 1000 Watt High Pressure Sodium Ballast

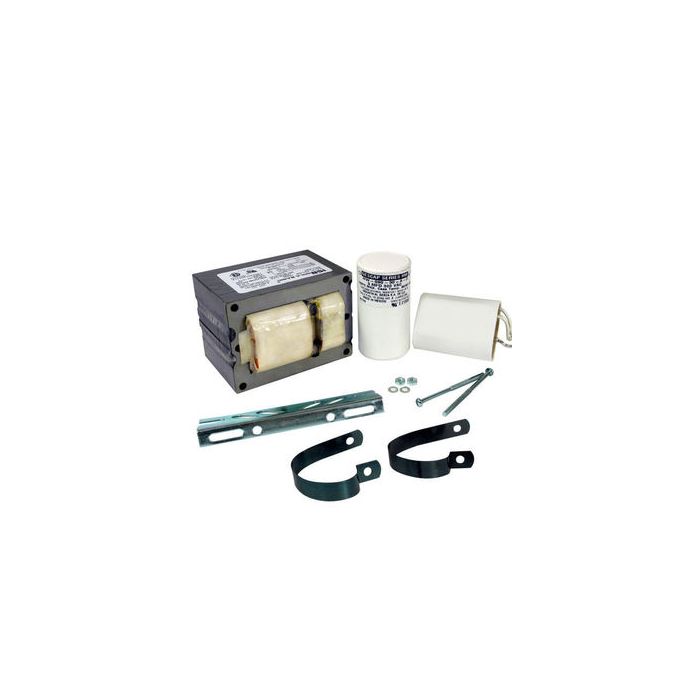

Kit includes: Ballast,Capacitor, Bracket Kit, and Ignitor

ANSI Designation: S52

Line Voltage: 120/208/240/277/480

Regulation: 10%

Frequency: 60 Hz

Recommended Fuse (A): 25/15/12/10/6

Circuit Type: CWA

Insulation Class: 180ºC

Capacitor Value: 26

Capacitor Voltage Rating: 525 V

Capacitor Temperature Rating: 105ºC

Maximum Distance to Lamp: 15 FT

Agency Certification: RU, CSA, UL

2 Year Warranty

More Information
Order Code	71A8753001
Input Volts	120/208/240/277/480V
Watts	1000
ANSI	S52
Brand	Advance
Mfg #	71A8753001

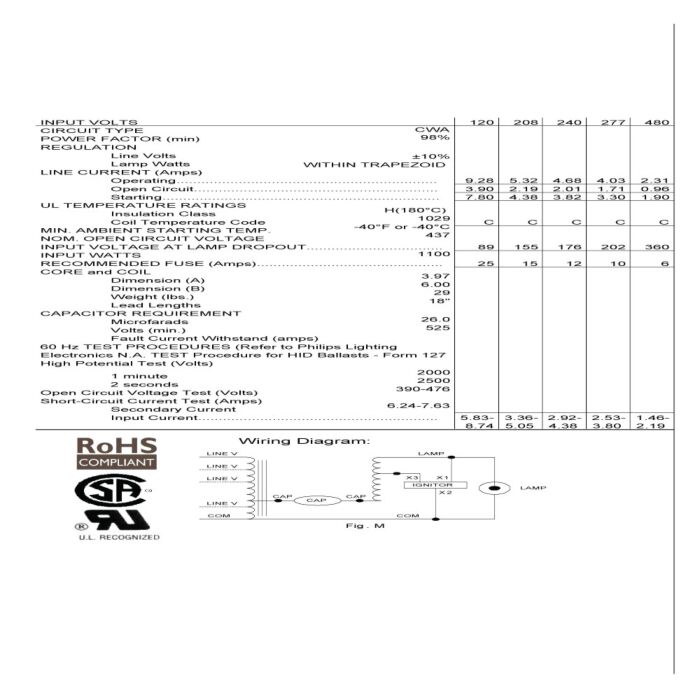

Product Data Sheet	71A8753-001 Advance HID Brochure
Lamps	1000 Watt S52 High Pressure Sodium Ballast

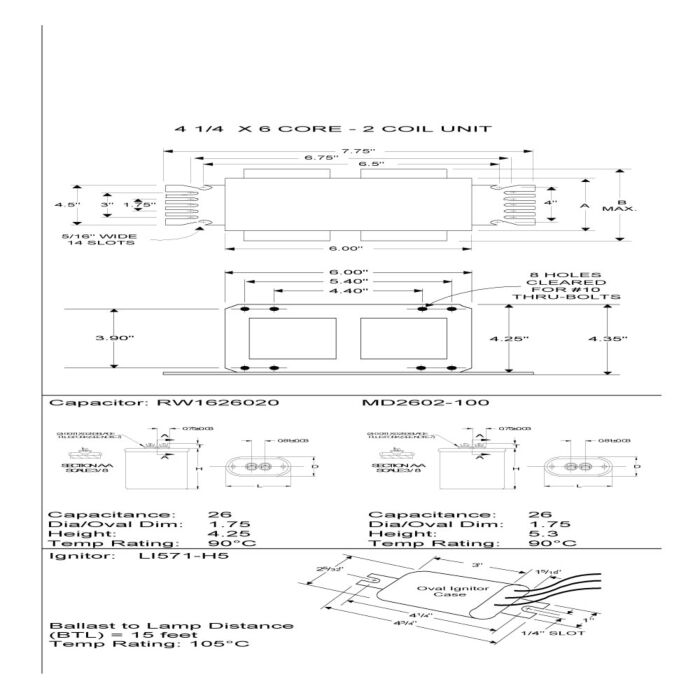

Dimensions	7.75"(L) x 6"(W) x 4.35"(H)
Case Size	4
Warranty	2 Year Advance Warranty
UPC	781087111826
