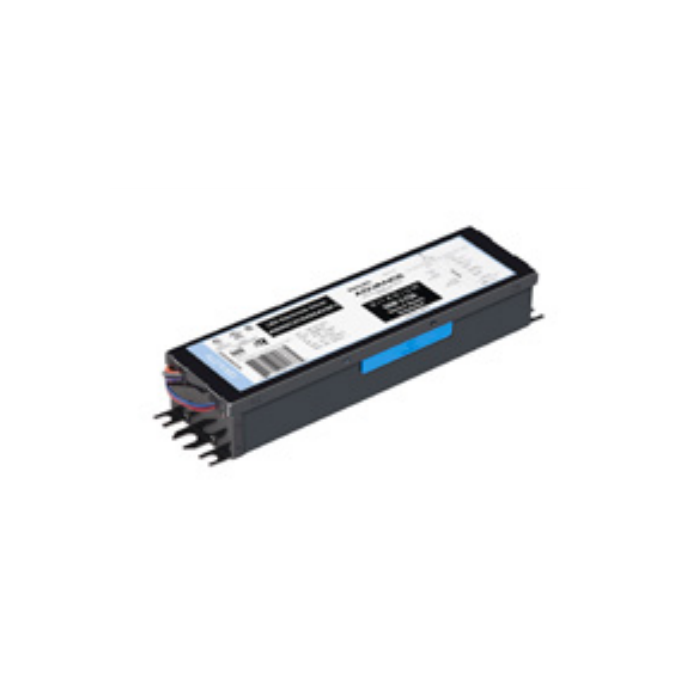

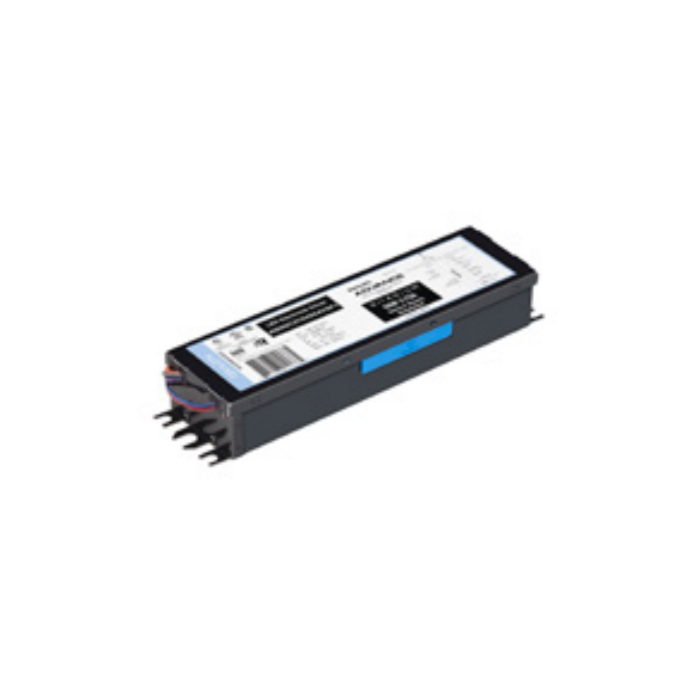

XI180C090V285VSF1 Advance Xitanium SR 180w Constant Current LED Driver
Special Price
$150.51
Regular Price
$188.13
SKU
16181
Xitanium Programmable Constant Current Dimmable LED Driver: 40 Total Watts, 0.1-1.1A Output Current, 54 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 1%-100% Dimming Range
XI040C110V054BST4 Advance Xitanium 40w Constant Current LED Driver
- 50,000+ hour lifetime
- SimpleSet programmable
- Large operating window
- 1% minimum dim level
- Constant Current Reduction (CCR) Dimming
| Life (hrs) | 50,000 |
|---|---|
| Order Code | 929001725113 |
| Input Volts | 120-277 VAC |
| Output Current | 0.10-0.9 |
| Max Output Voltage | 285 |
| Watts | 180 |
| Brand | Advance |
| LED Type | Constant Current |
| Certifications | cUL, UL 8750, NOM, FCC Title 47 Part 15 Class A, UL damp & dry |
| Class | Class 2 |
| Dimmable | Yes |
| Dimming Type | DALI |
| Mfg # | 929001725113 |

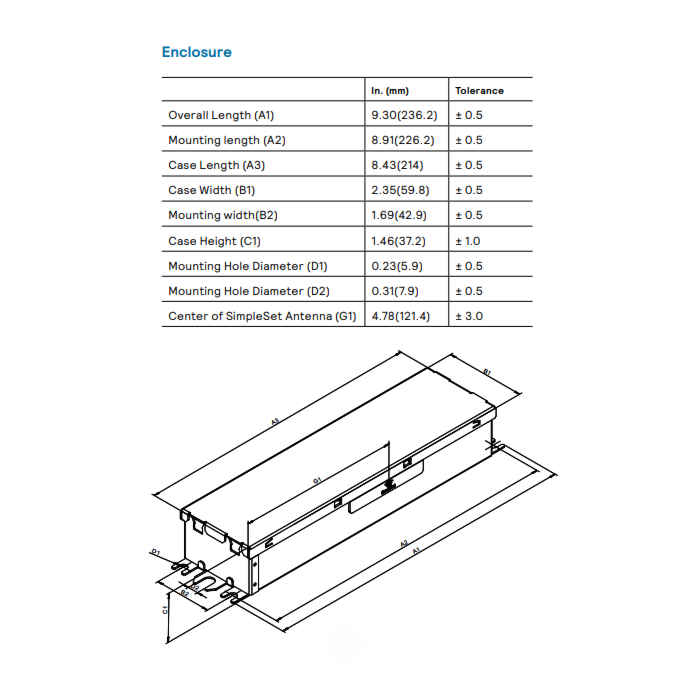

| Dimensions | 9.3 in. x 2.35 in.x 1.46 in. |
| Product Data Sheet | |
| Warranty | Manufacturers 5 Year |
| UPC | 781087155424 |
