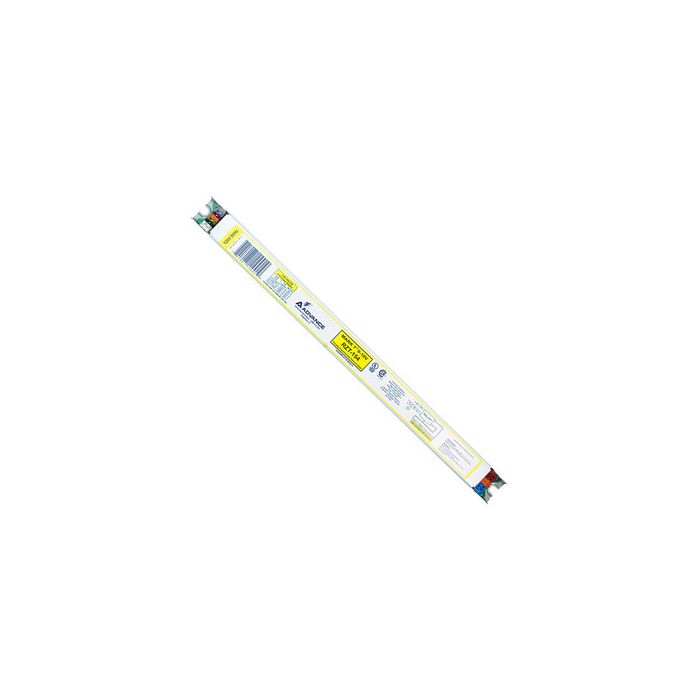

Advance Mark 7 RZT-2S54 T5 Dimming Ballast *DISCONTINUED*

Mfg # RZT2S5435M Item # 2718

Advance Mark 7 RZT-2S54 for (2) F54T5/HO, (1) F54T5/HO/ES(49W), (2) FC12T5/HO, (2) FT55W/2G11. Input for 120V  DISCONTINUED Replaced by: Advance Mark 7 IZT-2S54-D T5 0-10V Dimming Ballast

$164.76
$109.84
RZT-2S54

Advance Mark 7 RZT-2S54 Dimming Ballast

The Mark 7 0-10V series of controllable electronic ballasts are ideal for energy management systems in a broad range of commercial, institutional, and retail applications. They offerfull-range continuous dimming and help support sustainable (green) design.

  • Programmed Start
  • Provides Lamp EOL Protection Circuit for all T5, T5/HO and CFL lamps
  • Lamp Current Crest Factor of 1.7
  • Tolerate sustained open circuit and short circuit output conditions
  • Power Factor greater than 0.98 at full light output and greater than 0.90 throughout the dimming range for primary lamp
Order Code RZT2S5435M
Input Volts 120V
Brand Advance Mark 7 0-10V
Mfg # RZT2S5435M
Product Data Sheet
Certifications Class P, CSA, FCC Part 18 (Class A), Outdoor Type 1, Sound Rated: A, UL
Equivalents NA
Start Method Programmed Start
Starting Temperature 50ºF, 10ºC

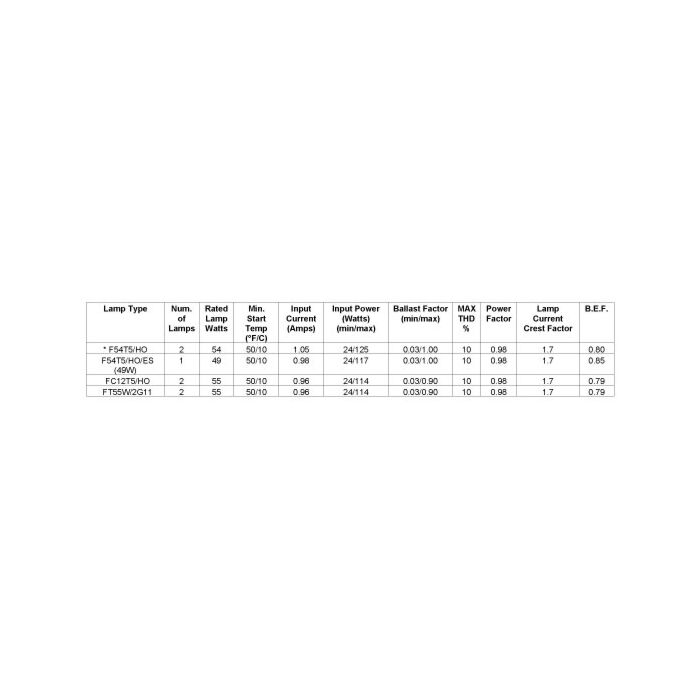

Lamps (2) F54T5/HO, (1) F54T5/HO/ES(49W), (2) FC12T5/HO, (2) FT55W/2G11

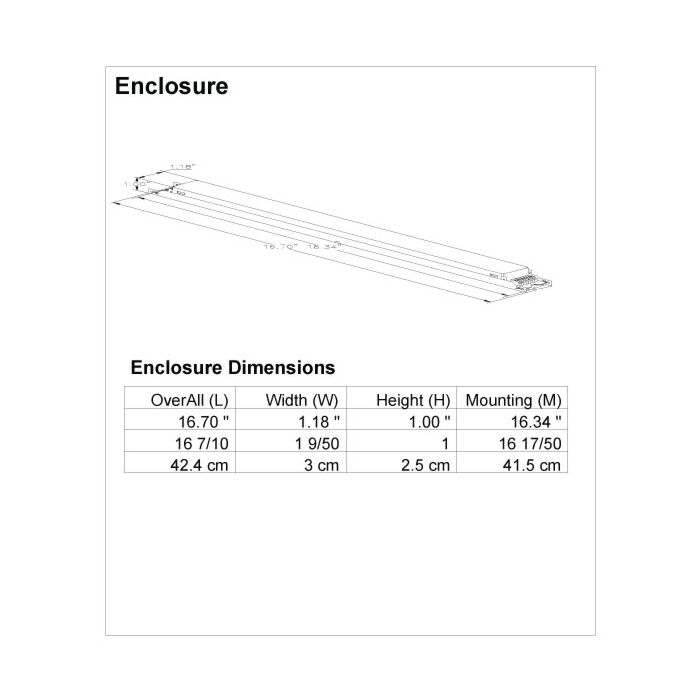

Dimensions 16.7" x 1.18" x 1"
Case Size ea
Warranty 5 Year Advance Warranty
UPC 781087109632
