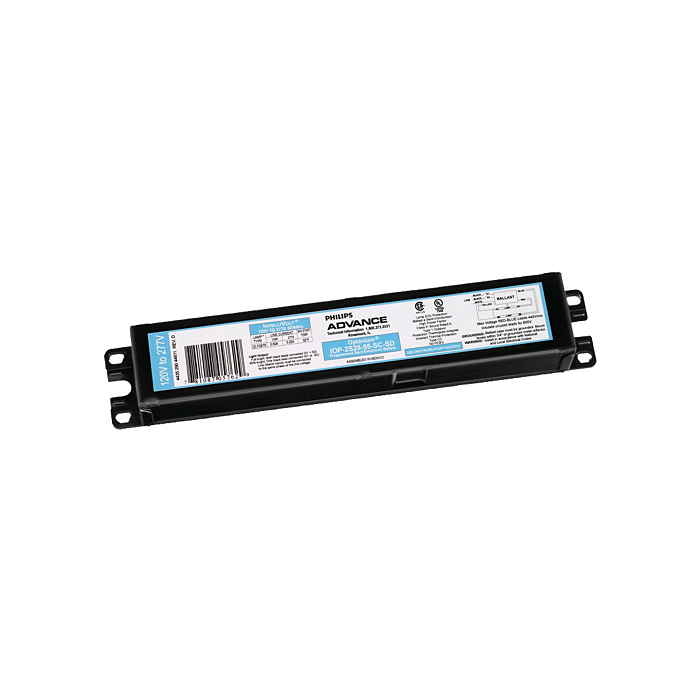

Advance Optanium IOP-2S28-115-SC-SD T5 Electronic Step Dimming Ballast

Special Price $79.69 Regular Price $103.60

SKU

7259

F28T5 Step Dimming Ballast - 120-277v - High Ballast Factor

Advance IOP-2S28-115-SC-SD T5 Ballast

0%, 50%, 100% Switch Control

1.15 Ballast Factor

Input voltage of 120-277V

Program Start

Suitable for outdoor use

UL recognized

5 year warranty

More Information
Order Code	IOP2S28115SCSD35M
Input Volts	120-277V
Brand	Advance Optanium
Mfg #	IOP2S28115SCSD35M
Dimming Type	Step-Dim
Dimming Range	0%, 50%, 100%
# of Lamps	1 Lamp, 2 Lamps
Product Data Sheet	IOP2S28115SCSD
Certifications	CSA, Outdoor Type 1, Sound Rated: A, UL
Equivalents	IOP2S28115SCSD35M , IOP2S28115SCSD35i
Start Method	Program Start
Starting Temperature	0ºF/-18ºC
Lamps	F14T5 (2) , F21T5 (2) , F28T5 (1) , F28T5/ES (25W) (1) , F28T5/ES@100 (25W) (2) , F28T5/ES@50 (25W) (2) , F28T5@100 (2) , F28T5@50 (2) , F35T5 (1)
Dimensions	9.5" (L) X 1.7" (W) X 1.18" (H)
Case Size	20
Warranty	5 Year Warranty Advance Warranty
UPC	781087057650
