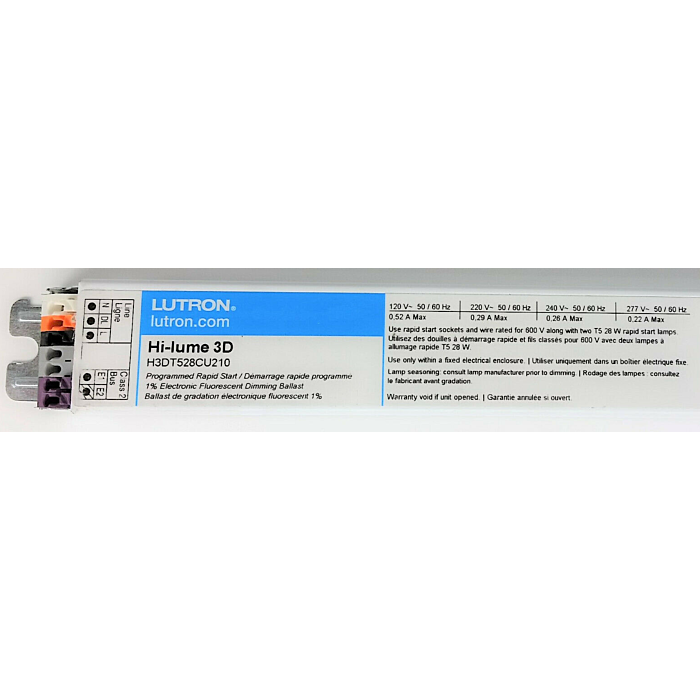

Lutron Hi-Lume 3D H3DT528CU210 T5 Dimming Ballast - *DISCONTINUED*
Special Price
$338.95
Regular Price
$390.00
SKU
2835
2 Lamps 28 Watt T5 Dimming Ballast - 1% to 100% Dimming Range - 3-Wire, EcoSystem, - Input: 120/240/277V
DISCONTINUED by Lutron!!!
Lutron EcoSystem Hi-Lume 3D H3DT528CU210 T5 Dimming Ballast
- Continuous, flicker-free dimming from 100% to 1%
- Compatible with EcoSystem Digital Bus control, GRAFIK Eye® QS, PowPak and Quantum®
- Supports standard 3-wire line-voltage phase control technology
- Programmed rapid start design ensures full-rated lamp life while dimming and cycling
- Ultra-quiet operation
| Order Code | H3DT528CU210 |
|---|---|
| Input Volts | 120/240/277V |
| Brand | Lutron |
| Family | Hi-Lume 3D |
| Mfg # | H3DT528CU210 |
| Dimming Type | 3-Wire, EcoSystem |
| Dimming Range | 1%-100% |
| # of Lamps | 2 Lamps |
| Product Data Sheet | |
| Certifications | Class P, CSA, UL |
| Start Method | Programmed Rapid Start |
| Starting Temperature | 50℉, 10℃ |
| Lamps | (2) 28 watt T5HO lamps |
| Dimensions | 18" x 1.18" x 1.0" |
| Warranty | 5-year limited warranty with Lutron field service commissioning (3-year standard warranty) from date of purchase. |
| UPC | 27557977128 |
