Advance 71A86F5-500D 750 Watt High Pressure Sodium Ballast Kit

Mfg # 71A86F5500D Item # 3539

750 Watt High Pressure Sodium Ballast - Lamps: 750 Watt S111 High Pressure Sodium Ballast -Input:277/347/480V -Starting: Pulse Start DISCONTINUED

$619.20
$464.40
71A86F5-500D

Advance 71A86F5-500D 750 Watt High Pressure Sodium Ballast

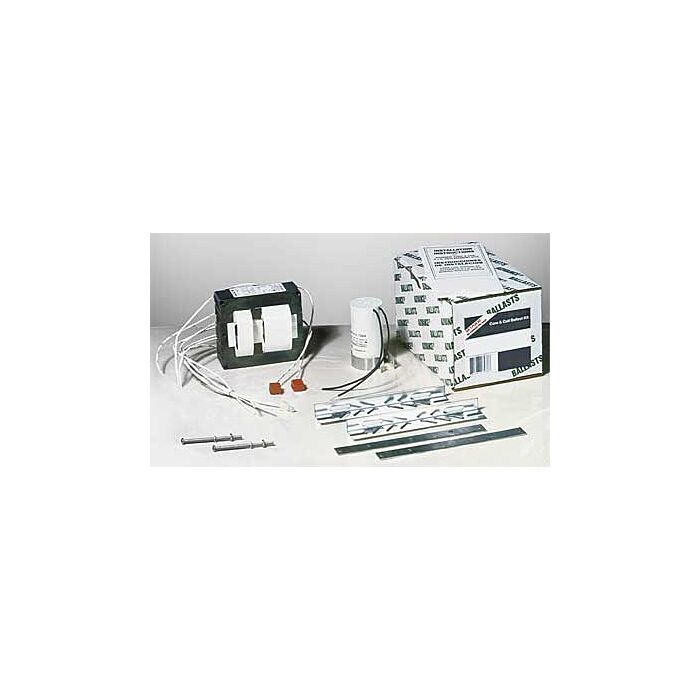

  • Kit includes: Ballast,Capacitor, Bracket Kit, and Ignitor
  • ANSI Designation: S111
  • Line Voltage: 277/347/480
  • Regulation: 10%
  • Frequency: 60 Hz
  • Recommended Fuse (A): 10/10/5
  • Circuit Type: CWA
  • Insulation Class: 180ºC
  • Capacitor Value: 75
  • Capacitor Voltage Rating: 280 V
  • Capacitor Temperature Rating: 105ºC
  • Maximum Distance to Lamp: 5 FT
  • Agency Certification: RU, CSA, UL
  • 2 Year Warranty
Order Code 71A86F5500D
Input Volts 277/347/480V
Watts 750
ANSI S111
Brand Advance
Mfg # 71A86F5500D

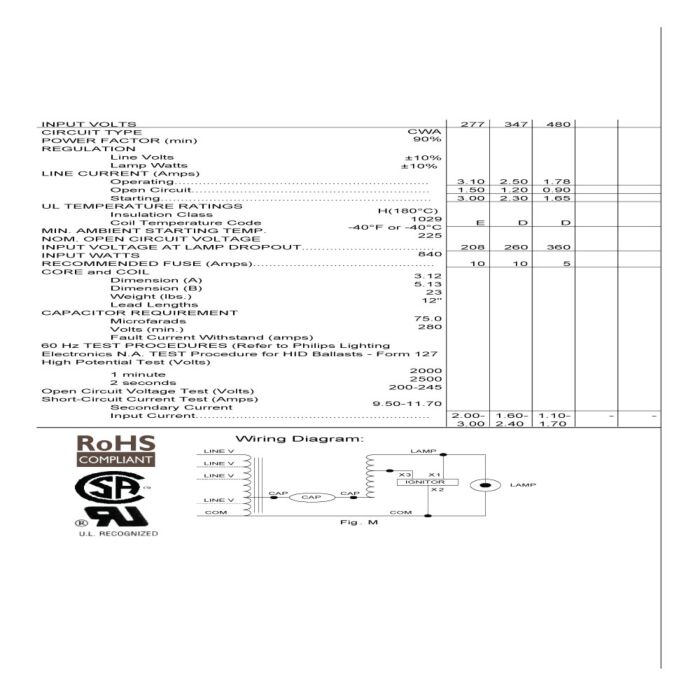

Product Data Sheet
Lamps 750 Watt S111 High Pressure Sodium Ballast

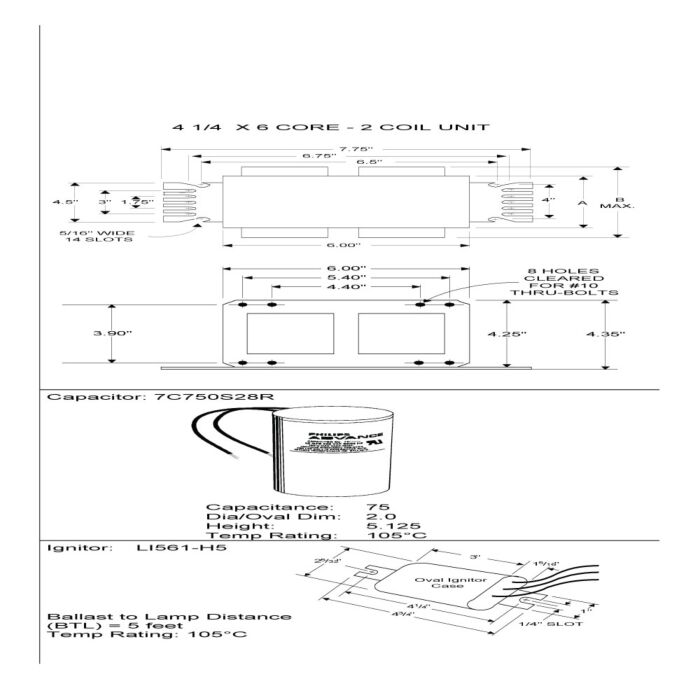

Dimensions 6"(L) x 3.9"(W) x 4.35"(H)
Case Size 4
Warranty 2 Year Advance Warranty
UPC 781087866559
