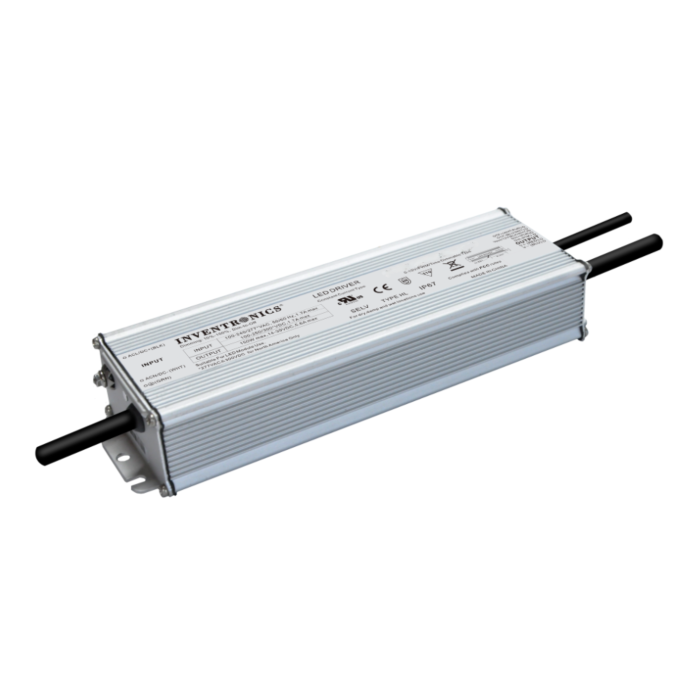

Name: EUD-150S350DTA Inventronics 150W Constant Current LED Driver
Brand: Inventronics
SKU: 17114
Price: 91.68 USD
Availability: InStock

SKU# 17114

$114.60

$91.68

Inventronics LED Drivers

EUD-150S350DTA Inventronics 150W Constant Current LED Driver

Ultra High Efficiency (Up to 94.0%)
Full Power at Wide Output Current Range (Constant Power)
Thermal Sensing and Protection for LED Module
0-10V/PWM/3-Timer-Modes Dimmable
Dim-to-Off with Standby Power ≤ 0.5 W
Always-on Auxiliary Power: 12Vdc, 200mA (Transient Peak Current up to 400mA)
Output Lumen Compensation
Input Surge Protection: DM 6kV, CM 10kV
All-Around Protection: OVP, SCP, OTP
IP67 and UL Dry / Damp / Wet Location
SELV Output
TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location

Life (hrs)	100,000
Order Code	EUD-150S350DTA
Input Volts	90 ~ 305 Vac, 100 ~ 300 Vdc
Output Current	2450 – 3500 mA (Default 3150 mA)
Watts	150
Brand	Inventronics
LED Type	Constant Current
Certifications	FCC, FCC Part 15, IP67, UL, UL 8750, Wet Location, Damp Location, Dry Location, Type HL, CE, cRUus, CE EN61347-1, CE EN61347-2-13, UL cUL CAN/CSA-C22.2 No. 250.13, SELV, EN55015 Conducted emission Test & Radiated emission Test, EN61000-3-2 Harmonic current emissions, EN61000-3-3 Voltage fluctuations & flicker, ANSI C63.4 Class B, EN61000-4-8 Power Frequency Magnetic Field Test, EN61000-4-11 Voltage Dips, EN61547 Electromagnetic Immunity Requirements Applies To Lighting Equipment, IEC60598-1, EN61000-4-6 Conducted Radio Frequency Disturbances Test-CS, EN61000-4-3 Radio-Frequency Electromagnetic Field Susceptibility Test-RS, EN61000-4-4 Electrical Fast Transient / Burst-EFT
Class	Class 1
Dimmable	Yes
Mfg #	EUD-150S350DTA

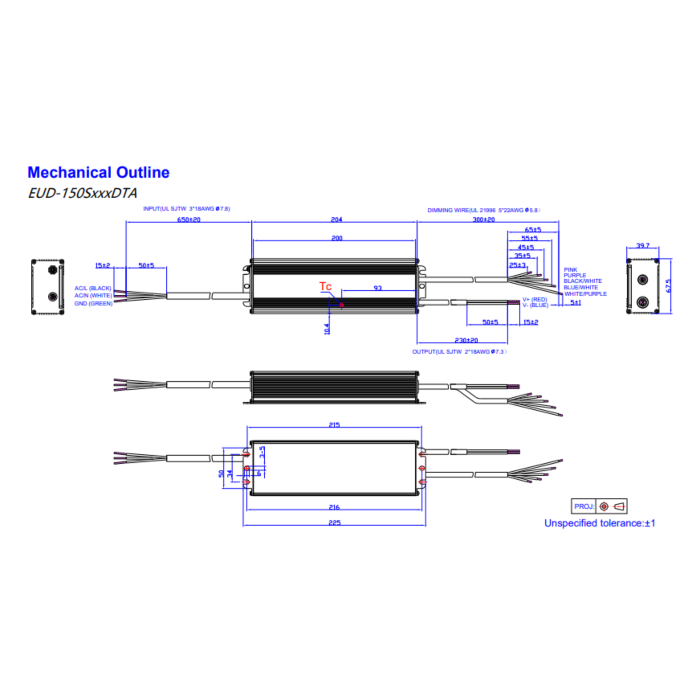

Dimensions	8.03 in. x 2.66 in. x 1.56 in.
Product Data Sheet	EUD-150S350DTA
Warranty	7 Year Warranty

Free shipping on orders over $1,000. Standard shipping typically takes 3-5 business days.

Returns accepted within 30 days of purchase. Items must be unused and in their original packaging. Special-order items are not returnable.
