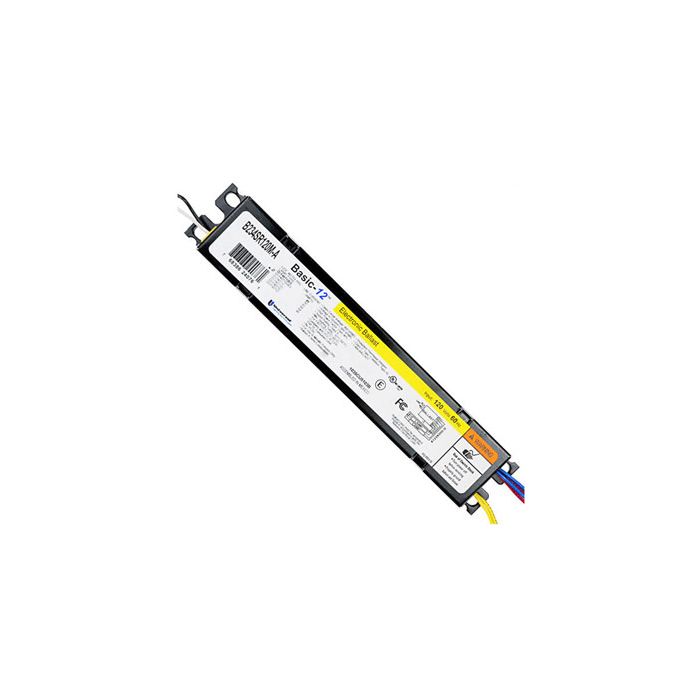

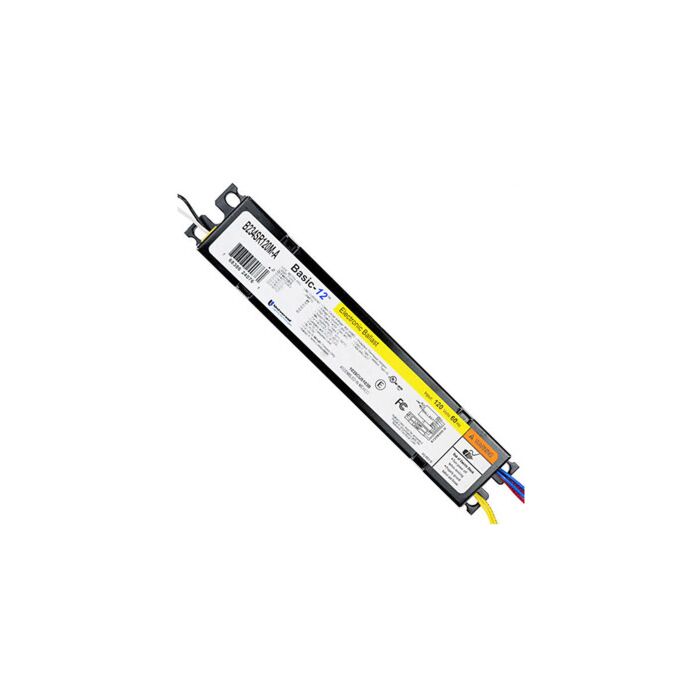

Universal Basic-12 B234SR120M-A T12 Electronic Fluorescent Ballast

Special Price $28.90 Regular Price $37.70
SKU
7054

Universal Basic-12 Electronic Fluorescent Ballast - Lamps: (2) F40T12ES, (2) F40T12, (2) F34T12, (2) F32T12, (2)F34T10, (2) F40T10 -Input:120V -Starting: Rapid Start

DISCONTINUED by Universal.  LIMITED Stock Remaining!!!

B234SR120M-A

Universal Magnetek Electronic Fluorescent T12 Ballast

  • Passive Power Factor Correction.
  • Basic-12® ballasts provide electronic energy saving performance, generating energy savings of greater than 20% when replacing a magnetic ballasts while still using the same T12 lamps.
  • High Frequency Operation
  • Remote Mounting: 20 ft. max. lead length, 18 AWG
  • High frequency electronic ballast for (2) F40T12ES, (2) F40T12, (2) F32T12, or (2) F40T10 lamps(and equivalent U-bend lamps)
  • More Information
    Order Code B234SR120M-A000I
    Input Volts 120V
    Brand Universal Basic-12
    Mfg # B234SR120M-A000I
    # of Lamps 2 Lamps
    Product Data Sheet
    Certifications CSA, UL
    Equivalents
  • Osram Sylvania MB2X40/120RS, QTP2X40T11/220RSN-B
  • Advance Philips R-2S34-TP, R-2S40-TP, Mark III, R-2S40-1-TP, RK-2S34-TP, RK-2S40-TP, RELB-2S40-SC
  • Howard M2/40RS-120
  • PLP/Sli/Valmont: 6G1020, 6G1022, 89G480, 89G999, 8G1018, 8G1021W, 8G1022W, 8G1023W, 8G1024W, 8G1025, 8G1028W, 8G1122W, RF-240, RFC-240, RFH-240, RFH-240ES, RHC-240, M28-120, M-28-120,
  • Sola E-420-F-234-IC, ERSF-240-TP
  • Universal \ MagneTek 446-L-SLH-TC-P, 420-L-TC-P, W589DTCP, 755-L-SLH-TC-P, 438-L-TCP magnetic ballasts, B234SR120M-A010C
  • Start Method Rapid Start
    Starting Temperature 50ºF, 10ºC
    Lamps (2) F40T12ES, (2) F40T12, (2) F34T12, (2) F32T12, (2)F34T10, (2) F40T10
    Dimensions 9.50" x 1.70" x 1.18"
    Case Size 10
    Warranty 36 Month Universal Limited Warranty
    UPC 768386242147
