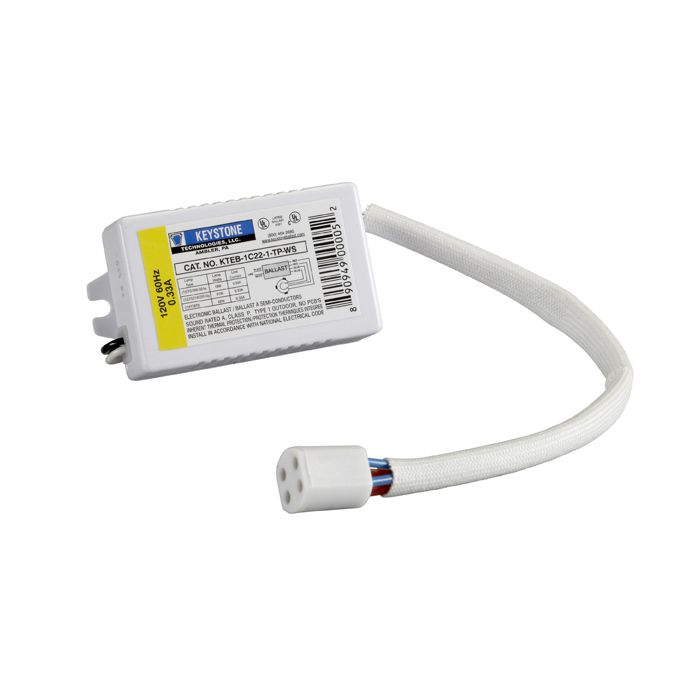

Keystone KTEB-1C22-1-TP-WS T9 Rapid Start Circline Ballast

6 review(s)

Special Price $15.87 Regular Price $23.80

SKU

LD-KTEB-1C22-1-TP-WS

1 Lite 22W, Small case, With Sockets - Lamps: (1) CFQ/18W/G24q2, (1) CFS/21W/GR10q, (1) FC8T9 22W -Input: -Starting: Rapid Start

Keystone KTEB-1C22-1-TP-WS Circline Electronic Fluorescent

Sound Rated: A

Minimum Starting Temperature: 0ºF, -18ºC

Maximum Case Temperature: 167ºF, 75ºC

Meets FCC Part 18 (Class B) Consumer Limits

Transient Protection Meets ANSI/IEEEC62.41 Cat. A

Lamp end-of-life protected

More Information
Order Code	KTEB-1C22-1-TP-WS
Input Volts	120V
Brand	Keystone
Mfg #	KTEB-1C22-1-TP-WS
# of Lamps	1 Lamp
Product Data Sheet	KTEB-1C22-1-TP-WS
Certifications	cUL, FCC Part 18 (Class B), Sound Rated: A, UL
Equivalents	Universal Magnetek 333-H2
Start Method	Rapid Start
Starting Temperature	0ºF, -18ºC
Lamps	(1) CFQ/18W/G24q2, (1) CFS/21W/GR10q, (1) FC8T9 22W
Dimensions	3.45”(L) x 1.81”(W) x 1.21”(H)
Case Size	80
Warranty	36 Month Keystone Limited Warranty
UPC	890949000052
