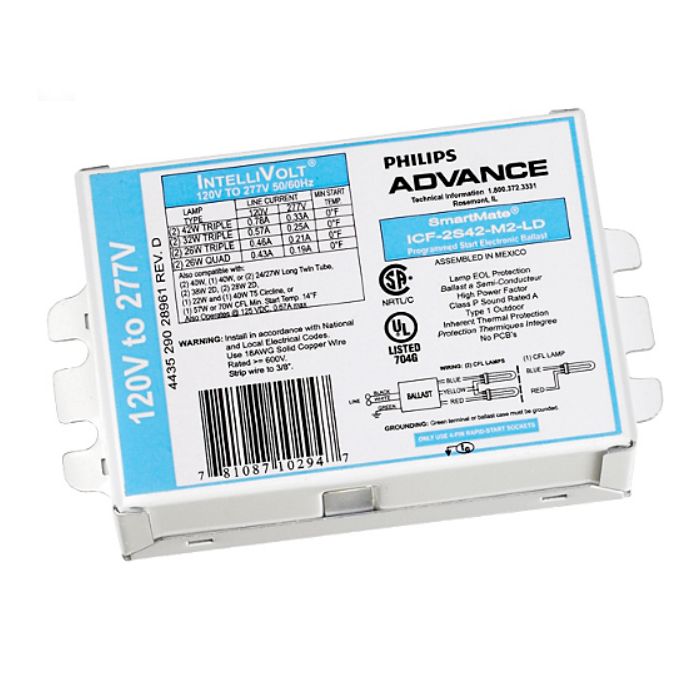

Advance Smartmate ICF-2S42-90C-M2-LD 4 Pin CFL Electronic Ballast

Mfg # ICF2S4290CM2LD35M Item # 7371 Order Code ICF2S4290CM2LD

4 Pin CFL Electronic - Program Start - 120-277V - Normal Ballast Factor - T-Case 90-degrees Celsius rated DISCONTINUED by Advance.  SEE the Advance ICF-2S42-M2-LD or ICF-2S42-M2-LD-KIT as possible replacement options. The ICF-2S42-M2-LD is the exact same ballast as the ICF-2S42-90C-M2-LD, but it is rated to 75-degrees Celsius instead of 90-degrees Celsius.  Spec-wise and wiring are ALL the exact same, though.

Product Details +

Advance SmartMate ICF-2S42-90C-M1-BS-QS CFL Electronic Ballast

• Rapid Start
• Mounting Studs
• Normal Ballast Factor
• Input voltage of 120-277V, 50/60 Hz
• 5 Year Warranty < 75ºC, 3 Year < 90ºC

Specifications +

Order Code	ICF2S4290CM2LD
Input Volts	120-277V
Brand	Advance Smartmate
Mfg #	ICF2S4290CM2LD35M
Product Data Sheet	ICF2S4290CM2LD
Certifications	CSA, Outdoor Type 1, Sound Rated: A, UL
Equivalents	ICF2S4290CM2LD35M , ICF2S4290CM2LD35i
Start Method	Program Start
Starting Temperature	0ºF, -18ºC
Lamps	(2) FC9T5 & (1) FC12T5 , (2) CFM26W/GX24Q , (2) CFM32W/GX24Q, (1 or 2) CFM42W/GX24Q, (1) CFM57W/GX24Q, (1) CFM70W/GX24Q
Dimensions	4.98" x 3.0" x 1.29"
Case Size	20
Warranty	5 Year Warranty Advance Warranty
UPC	781087044025
