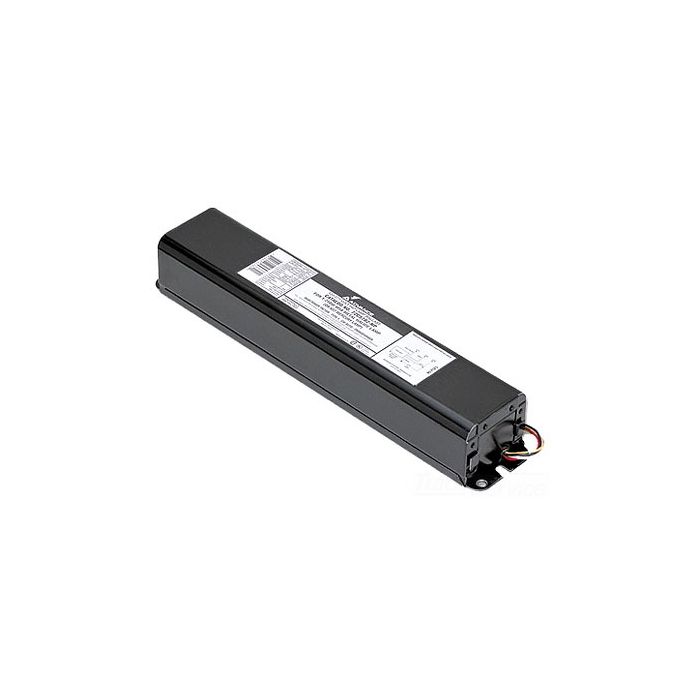

Advance 72C8084-NP001 100 Watt High Pressure Sodium Fcan Ballast - ONE WEEK Lead Time ARO!!
Special Price
$159.55
Regular Price
$198.80
SKU
2769
100 Watt High Pressure Sodium Fcan Ballast - Lamps: 100 Watt S54 High Pressure Sodium Fcan Ballast -Input:120/277V -Starting: Pulse Start
Advance 72C8084-NP001 100 Watt High Pressure Sodium Fcan Ballast
- Kit includes: Ballast,Capacitor, Bracket Kit, and Ignitor
- ANSI Designation: S54
- Line Voltage: 120//277
- Regulation: 5%
- Frequency: 60 Hz
- Recommended Fuse (A): 5/3
- Circuit Type: HX-HPF
- Insulation Class: 105ºC
- Capacitor included as part of assembly
- Maximum Distance to Lamp: 15 FT
- Agency Certification: RU, CSA, UL
- 2 Year Warranty
| Order Code | 72C8084NP001 |
|---|---|
| Input Volts | 120/277V |
| Watts | 100 |
| ANSI | S54 |
| Brand | Advance |
| Mfg # | 72C8084-NP001 |
| Product Data Sheet | |
| Equivalents | Advance: 72C8005-NP |
| Certifications | Sound Rated: A, UL |
| Lamps | 100 Watt S54 High Pressure Sodium Fcan Ballast |

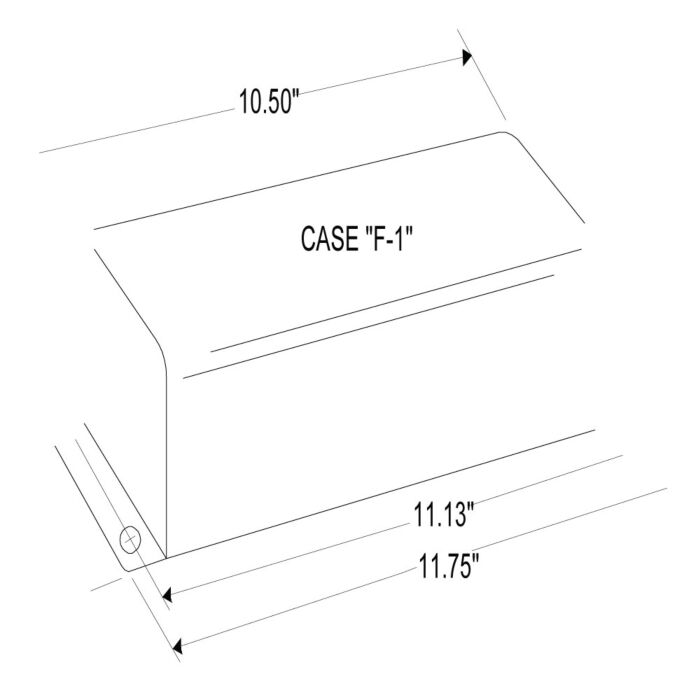

| Dimensions | 11.75"(L) x 3.19"(W) x 2.63"(H) |
| Case Size | 4 |
| Warranty | 2 Year Advance Warranty |
| UPC | 781087280843 |
