Advance 71A8071-001D 100 Watt High Pressure Sodium Ballast Kit

Special Price $152.86 Regular Price $198.72

SKU

7605

100 Watt High Pressure Sodium Ballast - Lamps: 100 Watt S54 High Pressure Sodium Ballast -Input:120/208/240/277V -Starting: Pulse Start

Advance 71A8071-001D 100 Watt High Pressure Sodium Ballast

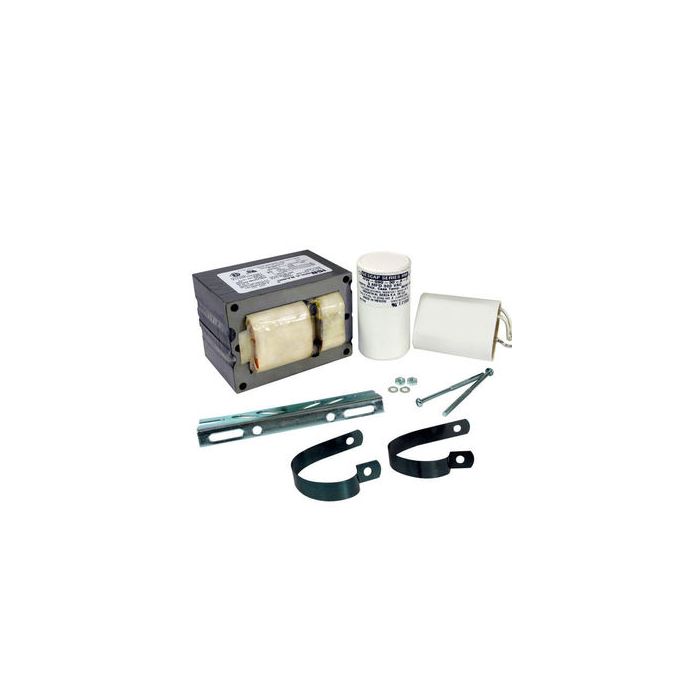

Kit includes: Ballast,Capacitor, Bracket Kit, and Ignitor

ANSI Designation: S62

Line Voltage: 120/208/240/277

Regulation: 5%

Frequency: 60 Hz

Recommended Fuse (A): 7/5/3/3

Circuit Type: HX-HPF

Insulation Class: 180ºC

Capacitor Value: 10

Capacitor Voltage Rating: 280 V

Capacitor Temperature Rating: 105ºC

Maximum Distance to Lamp: 2 FT

Agency Certification: RU, CSA, UL

2 Year Warranty

More Information
Order Code	71A8071001D
Input Volts	120/208/240/277V
Watts	100
ANSI	S54
Brand	Advance
Mfg #	71A8071001D

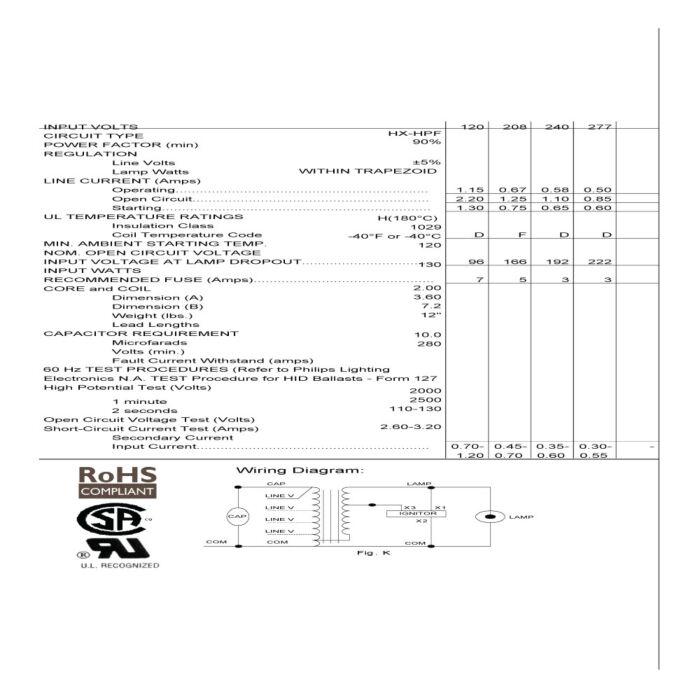

Product Data Sheet	71A8071-001D Advance HID Brochure
Lamps	100 Watt S54 High Pressure Sodium Ballast

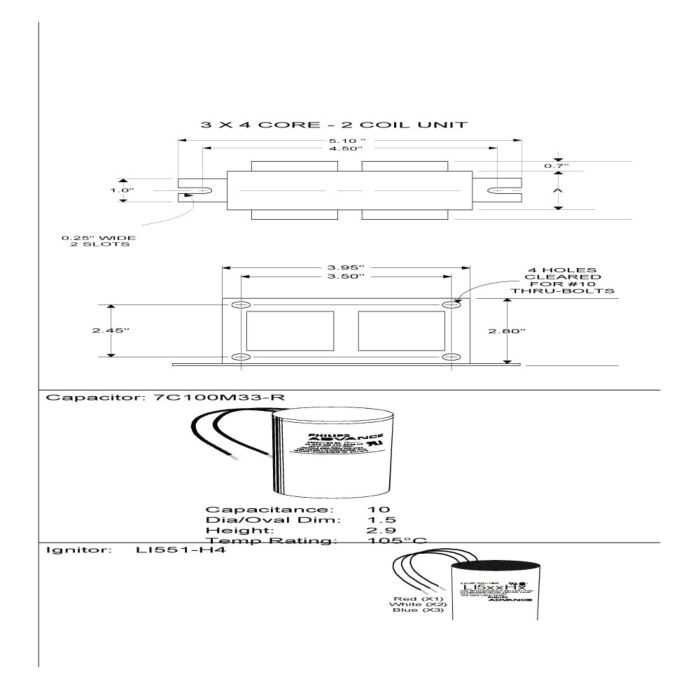

Dimensions	3.95"(L) x 3.6"(W) x 2.9"(H)
Case Size	4
Warranty	2 Year Advance Warranty
UPC	781087807118
