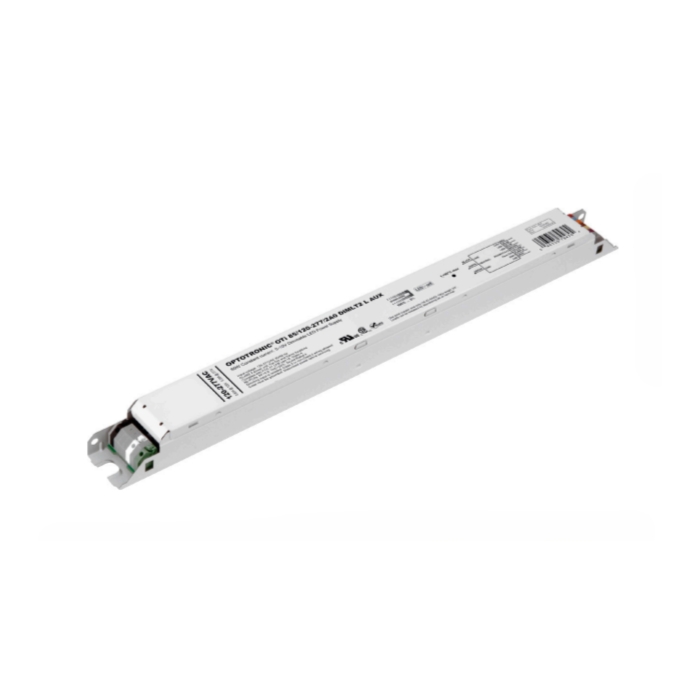

57424 / 274A1R eldoLED OTI851202772A3DIM1LHB OPTOTRONIC Indoor Linear 85w Constant Current LED Driver

Mfg # 57424 Item # 16674 Order Code 274A1R

OPTOTRONIC Indoor Linear Programmable Constant Current Dimmable LED Driver: 85 Total Watts, 700-2300mA Output Current, 55 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 10%-100% Dimming Range

$69.02
$57.62

eldoLED LED Drivers

57424 / 274A1R eldoLED OTI851202772A3DIM1LHB OPTOTRONIC Indoor Linear 85w Constant Current LED Driver

  • 700-2300mA Programmable LED Driver
  • OEM Programmable with 1mA resolution to perfectly match LED load and maximize performance
  • Integrated OEM programmable features include: Constant lumen maintenance, End-of-life indication, LED thermal protection, Soft start
  • Specification grade dimming down to true 1% or 10% on 0-10V dimmers
  • UL Class 2 output for safe operation
Life (hrs) 50,000
Order Code 274A1R
Input Volts 120-277 VAC
Output Current 700-2300mA
Watts 85
Brand eldoLED
LED Type Constant Current
Certifications UL, RoHS, UL damp & dry
Class Class 2
Dimmable Yes
Dimming Type 0-10v
Mfg # 57424

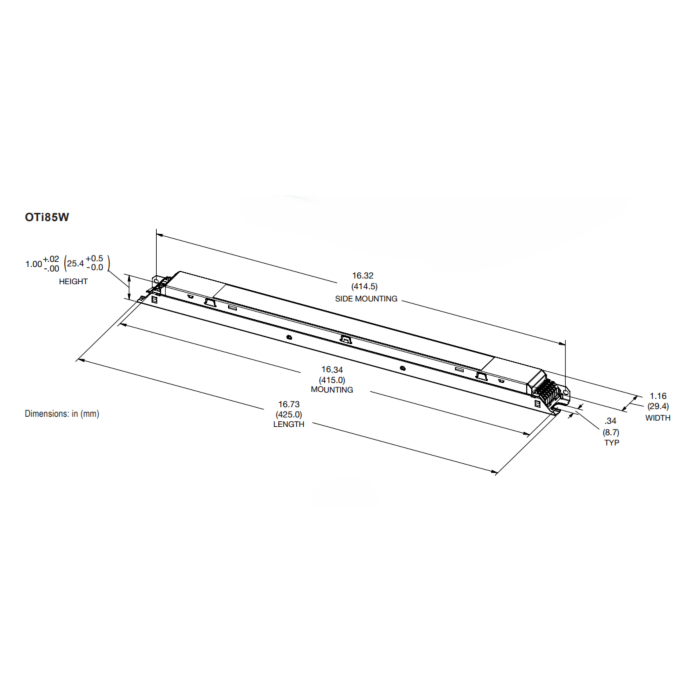

Dimensions 16.73 in. x 1.15 in. x 1 in.
Product Data Sheet
Warranty Manufacturers 5 Year
UPC 4052899490284

Free shipping on orders over $1,000. Standard shipping typically takes 3-5 business days.

Returns accepted within 30 days of purchase. Items must be unused and in their original packaging. Special-order items are not returnable.
