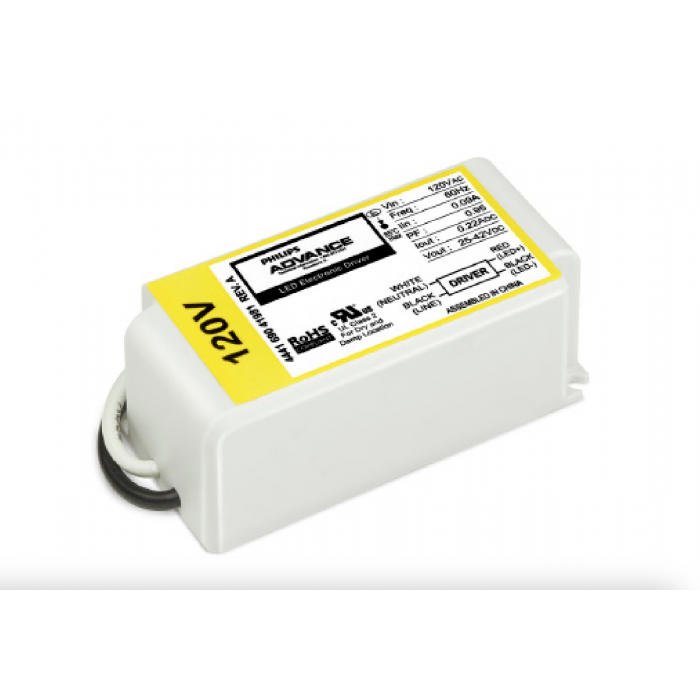

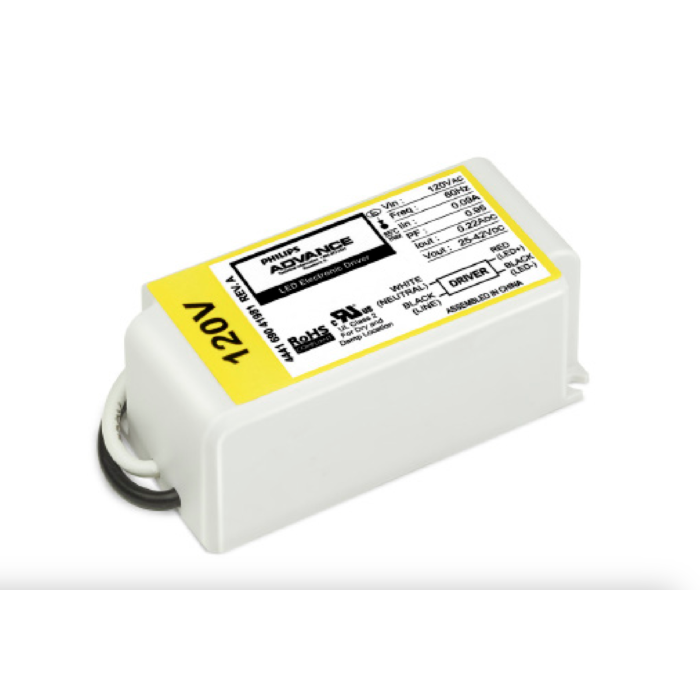

Advance XR009C022V042RNO2 Xitanium 9w Constant Current LED Driver
Special Price
$14.55
Regular Price
$18.19
SKU
16075
CertaDrive Fixed Constant Current Dimmable LED Driver: 12 Total Watts, 0.3A Output Current, 42 VDC Output Voltage, 120 VAC Input Voltage, Class 2, LE/TE Dimming Control, 3%-100% Dimming Range
DISCONTINUED
SUGGESTED REPLACEMENT: CR014C035V042RNR1
CR012C030V042RNR1 Advance CertaDrive 12w Constant Current LED Driver Driver
- 50,000+ hour lifetime
- UL Class 2 output with adjustable drive current
- Leading edge / Trailing edge dimming
| Life (hrs) | 50,000 |
|---|---|
| Order Code | 929000743313 |
| Input Volts | 120 VAC |
| Output Current | 0.22 |
| Max Output Voltage | 42 |
| Watts | 9 |
| Brand | Advance |
| LED Type | Constant Current |
| Certifications | Damp Rated, Outdoor Type 1, UL, UL 8750, Dry Location, FCC Title 47 Part 15 Class A |
| Class | Class 2 |
| Dimmable | Yes |
| Dimming Type | LE/TE |
| Mfg # | 929000743313 |

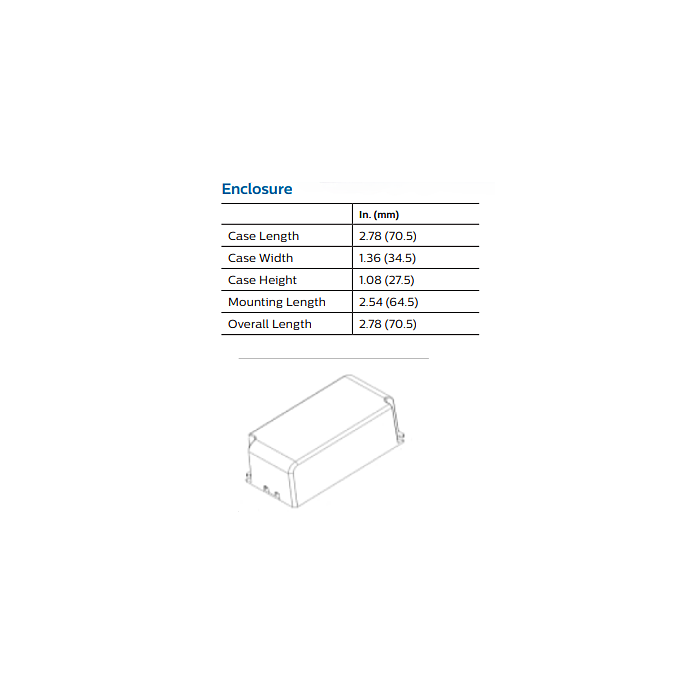

| Dimensions | 2.78 in. x 1.36 in.x 1.08 in. |
| Product Data Sheet | |
| Warranty | Manufacturers 5 Year |
| UPC | 781087141250 |
