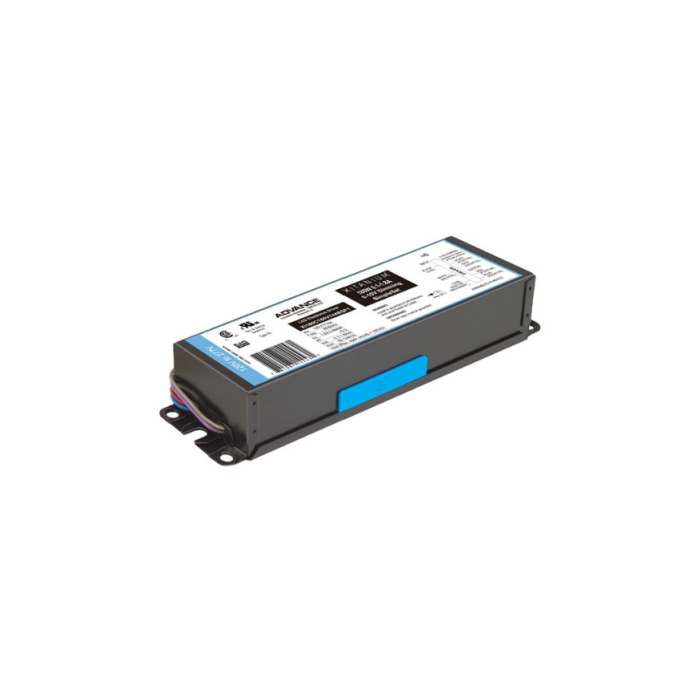

XI180C125V200BSF2 Advance Xitanium 180w Constant Current LED Driver
Special Price
$51.95
Regular Price
$64.94
SKU
16186
CertaDrive Switchable Constant Current Dimmable LED Driver: 23 Total Watts, 0.55/ 0.5A Output Current, 42 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v, Analog Dimming Control, 1%-100% Dimming Range
CI023C055V042CDM1 Advance CertaDrive 23w Constant Current LED Driver
- 50,000+ hour lifetime
- Excellent thermal performance
- High power factor & low THD
- Compatible with Philips Fortimo downlight modules
| Life (hrs) | 50,000 |
|---|---|
| Order Code | 929001782813 |
| Input Volts | 120-277 VAC |
| Output Current | 0.1 -1.25 |
| Max Output Voltage | 210 |
| Watts | 180 |
| Brand | Advance |
| LED Type | Constant Current |
| Certifications | cUL, UL 8750, NOM, Type HL, FCC Title 47 Part 15 Class A, UL damp & dry |
| Class | Class 2 |
| Dimmable | Yes |
| Dimming Type | 0-10v, Analog |
| Mfg # | 929001782813 |

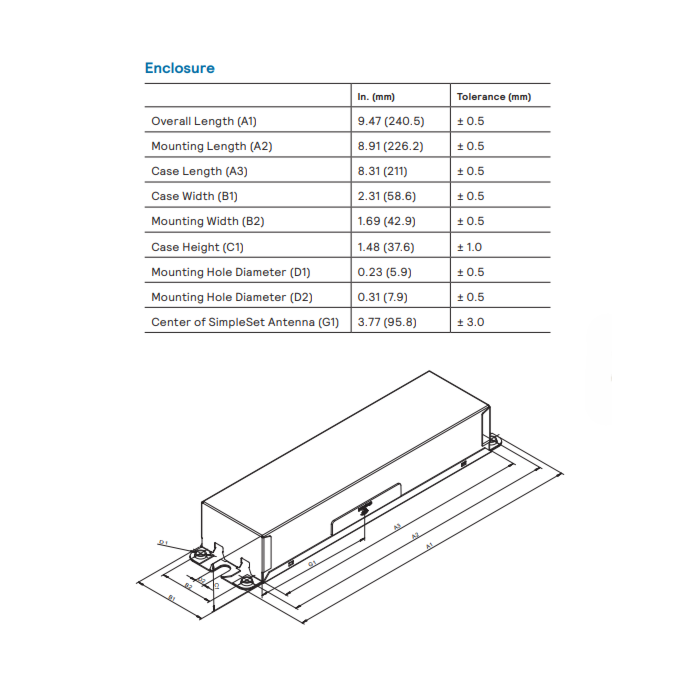

| Dimensions | 9.47 in. x 2.31 in.x 1.69 in. |
| Product Data Sheet | |
| Warranty | Manufacturers 5 Year |
| UPC | 781087162552 |
