Advance Mark 7 VZT-2S54 T5 Dimming Ballast

Special Price $111.25 Regular Price $166.88

SKU

LD-VZT-2S54

Advance Mark 7 VZT-2S54 Dimming Fluorescent Ballast for (2) F54T5/HO, (2) F54T5/HO/ES (49W), (2) FC12T5/HO, (2) FT55W/2G11. Input for 277v.

*DISCONTINUED

SUGGESTED REPLACEMENT IS PHILIPS MODEL # IZT-2S54-D

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

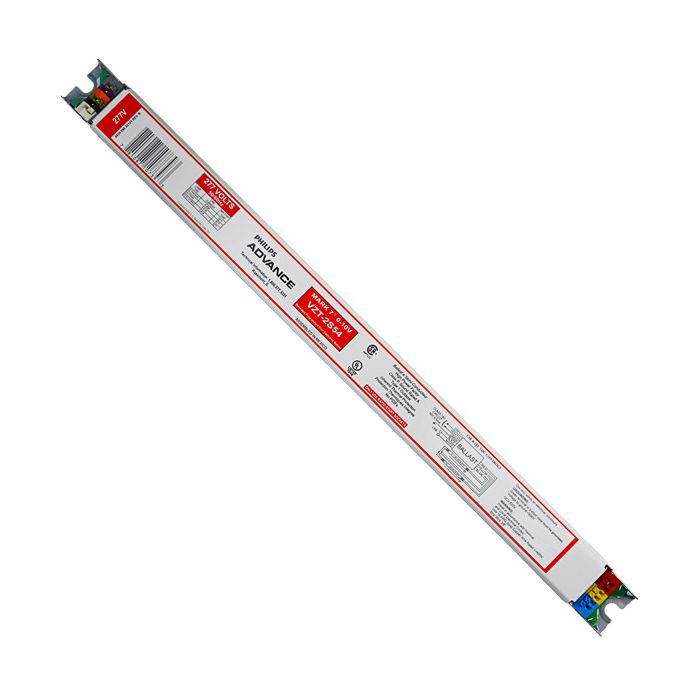

Advance Mark 7 VZT-2S54 Dimming Ballast

The Mark 7 0-10V series of controllable electronic ballasts are ideal for energy management systems in a broad range of commercial, institutional, and retail applications. They offerfull-range continuous dimming and help support sustainable (green) design.

Programmed Start

Operates from 60 Hz input source of 277V as applicable with sustained variations of +/- 10%

Minimum ballast factor of 1.00 at maximum light output and 0.03 at minimum light output for primary lamp application

Class A sound rating

More Information

More Information
Order Code	VZT-2S5435M
Input Volts	277V
Brand	Advance Mark 7 0-10V
Mfg #	VZT-2S5435M
# of Lamps	2 Lamps
Product Data Sheet	VZT-2S54 Mark 7 Brochure
Certifications	Class P, CSA, FCC Part 18 (Class A), Outdoor Type 1, Sound Rated: A, UL
Equivalents	NA
Start Method	Programmed Start
Starting Temperature	50ºF, 10ºC

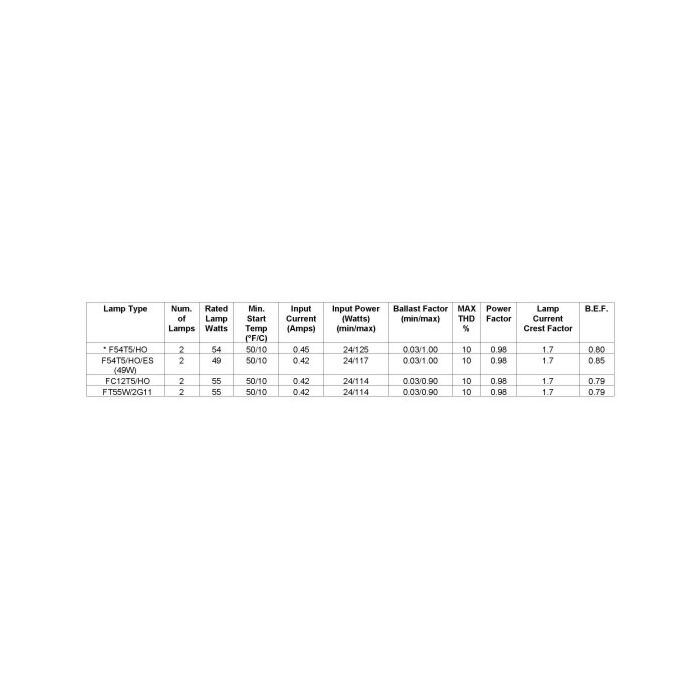

Lamps	(2) F54T5/HO, (2) F54T5/HO/ES (49W), (2) FC12T5/HO, (2) FT55W/2G11

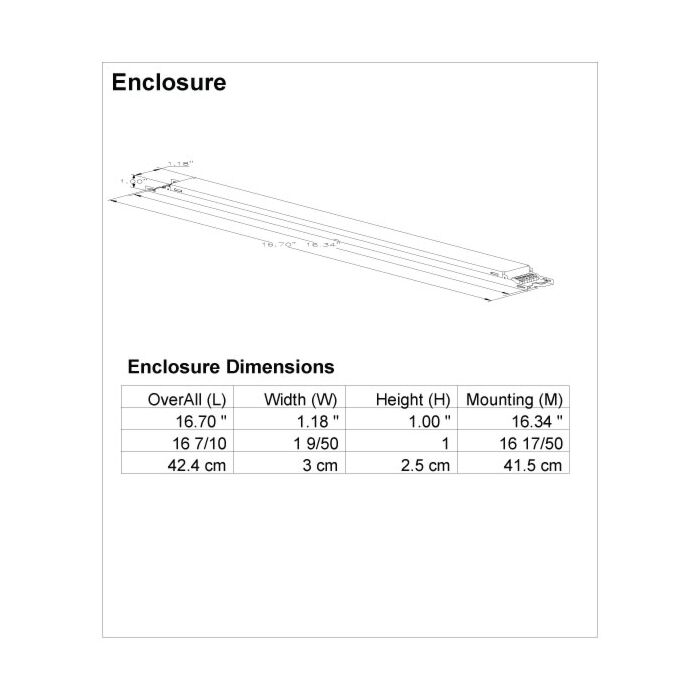

Dimensions	16.7" x 1.18" x 1"
Case Size	ea
Warranty	5 Year Advance Warranty
UPC	781087109656
