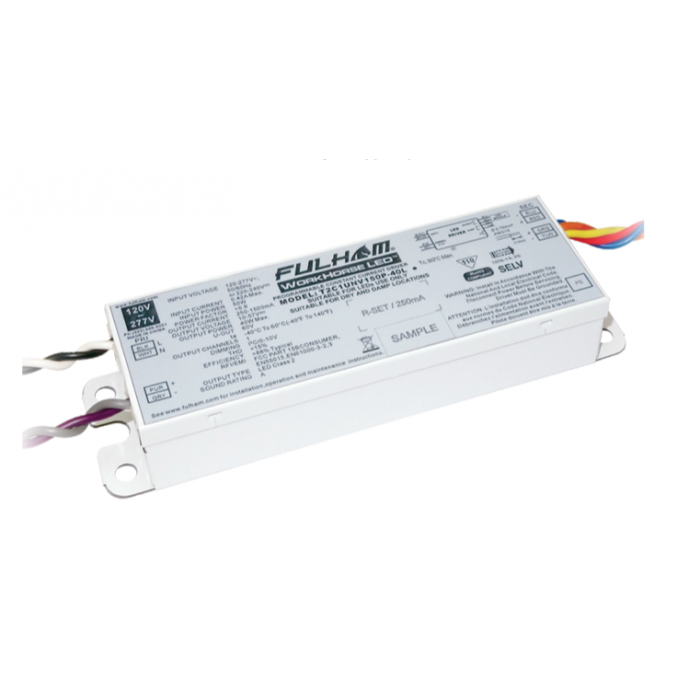

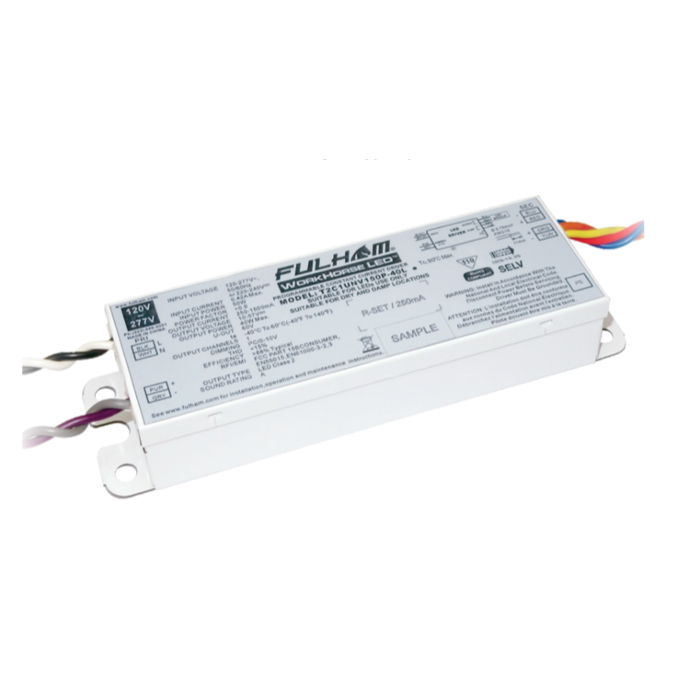

T2C1UNV150P-40L Fulham WorkHorse 40W Constant Current LED Driver
Special Price
$45.50
Regular Price
$56.88
SKU
17059
WorkHorse Programmable Constant Current Dimmable LED Driver: 40 Total Watts, 250-1500 mA Output Current, 57 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 1%-100% Dimming Range
T2C1UNV150P-40L Fulham WorkHorse 40W Constant Current LED Driver
- Input Voltage: 120V-277V~ - 50/60Hz
- Constant Current Programmable 250-1500mA
- Class 2 LED Driver
- Output Voltage Range of 10-57V
- Output Power: 40W Max.
- U-OUT: 60V
- 0-10V Dimmable: 100%-1%, or 0% (off)
- Minimum Current:15mA
- Compatible with Fulham Smartlink
| Life (hrs) | 50,000 |
|---|---|
| Order Code | T2C1UNV150P-40L |
| Input Volts | 120-277 VAC |
| Output Current | 250-1500 mA |
| Max Output Voltage | 57 |
| Watts | 40 |
| Brand | Fulham |
| LED Type | Constant Current |
| Certifications | cULus, IP20, UL 8750, RoHS, Dry Location, CE, FCC Part 15 Class B, Class 2 Output, CE EN61347-1, CE EN61347-2-13, UL1310, UKCA, SELV, cULus Listed E342838 |
| Class | Class 2 |
| Dimmable | Yes |
| Dimming Type | 0-10v |
| Mfg # | T2C1UNV150P-40L |

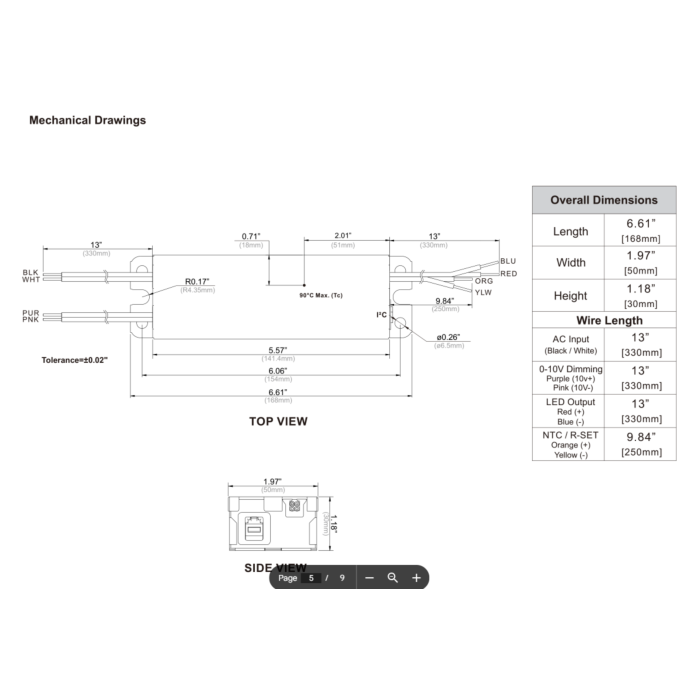

| Dimensions | 6.61 in. x 1.97 in. x 1.18 in. |
| Product Data Sheet | |
| Warranty | 5 years @ Tc 75°C from the date of manufacture |
| UPC | 10847098044632 |
