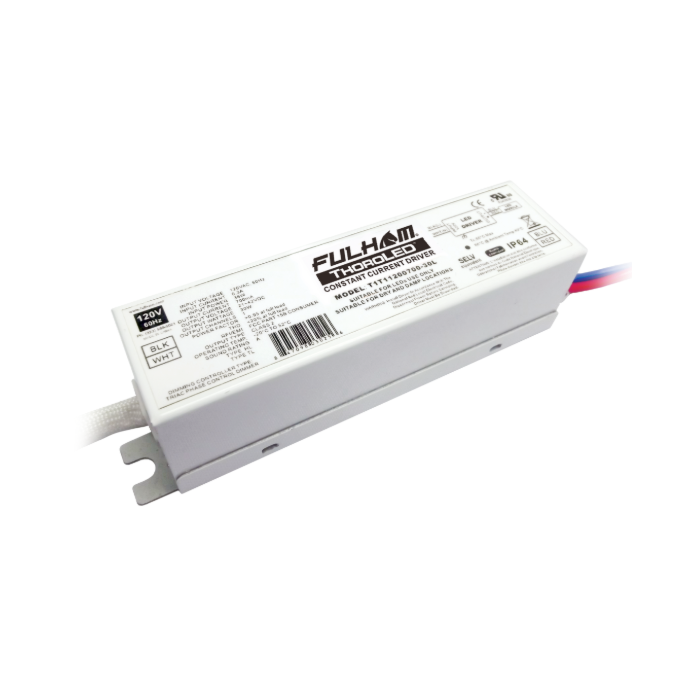

T1T11200700-30L Fulham TRIAC Dimming 30W Constant Current LED Driver

SKU# 17070

$34.94
$27.95

Fulham LED Drivers

T1T11200700-30L Fulham TRIAC Dimming 30W Constant Current LED Driver

  • 700mA
  • Input range of 120 VAC
  • One 700mA independent
  • Constant current ouput channel
  • Input Current Protection
  • Output Short Circuit Protection
  • Output Open Circuit Protection
  • Output To Ground Short Protection
  • Overload Protection
Life (hrs) 50,000
Order Code T1T11200700-30L
Input Volts 120 VAC
Output Current 700 mA
Max Output Voltage 42
Watts 30
Brand Fulham
LED Type Constant Current
Certifications IP64, UL Type CC, RoHS, Damp Location, Dry Location, cRUus, FCC Part 15 Class B, Class 2 Output, Type HL/TL
Class Class 2
Dimmable Yes
Dimming Type LE/TE
Mfg # T1T11200700-30L

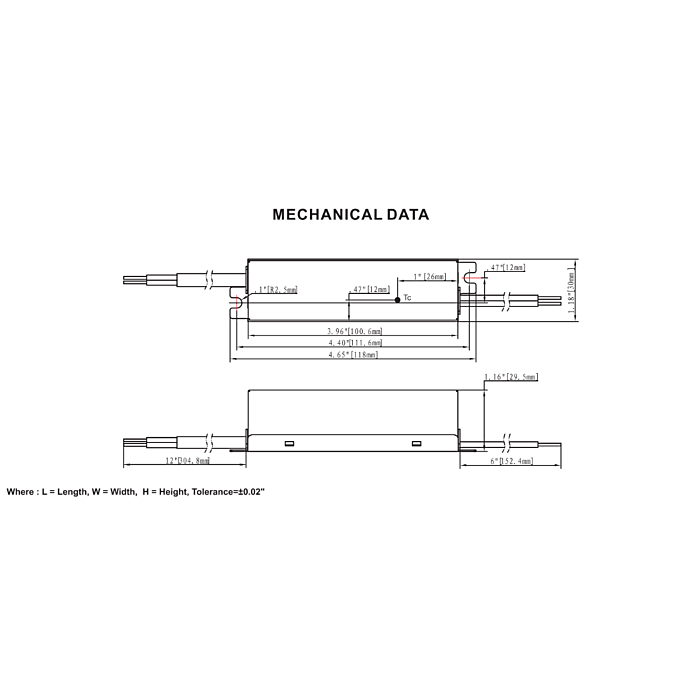

Dimensions 4.65 in. x 1.18 in. x 1.16 in.
Product Data Sheet
Warranty 5 Years @ Tc 80°C
UPC 10847098030253
